B2CT0MK1 - 406D9 ML5T GEARBOX

MODIFICATION BEARING SUPPORT PLATE

1 - PARTS AFFECTED BY THE CHANGE

O-ring .

2 - IDENTIFICATION

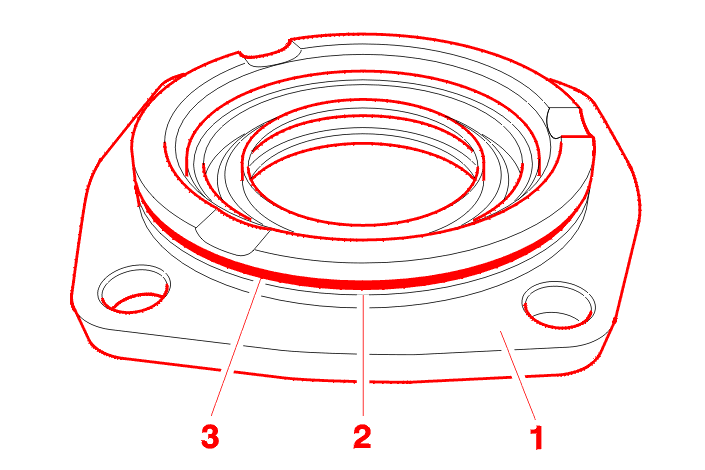

2 - 1 - EARLIER ASSEMBLY

(1) Support plate .

(2) Circular groove .

(3) O-ring .

2 - 2 - LATER ASSEMBLY

THE O-RING (3) IS DISCONTINUED AS IS THE GROOVE (2), SEALING IS BY MEANS OF A BEAD OF SILICON E12 APPLIED TO THE CONTACT SURFACE (1) .

3 - INTERCHANGEABILITY

When stocks are exhausted, Parts Division will supply only the new assembly .
