B2FH01K1 - 406D9

REPLACEMENT DRIVE SHAFT GAITERS TYPE PSA

1 - SPECIAL TOOLS

reference	description	reference	reference

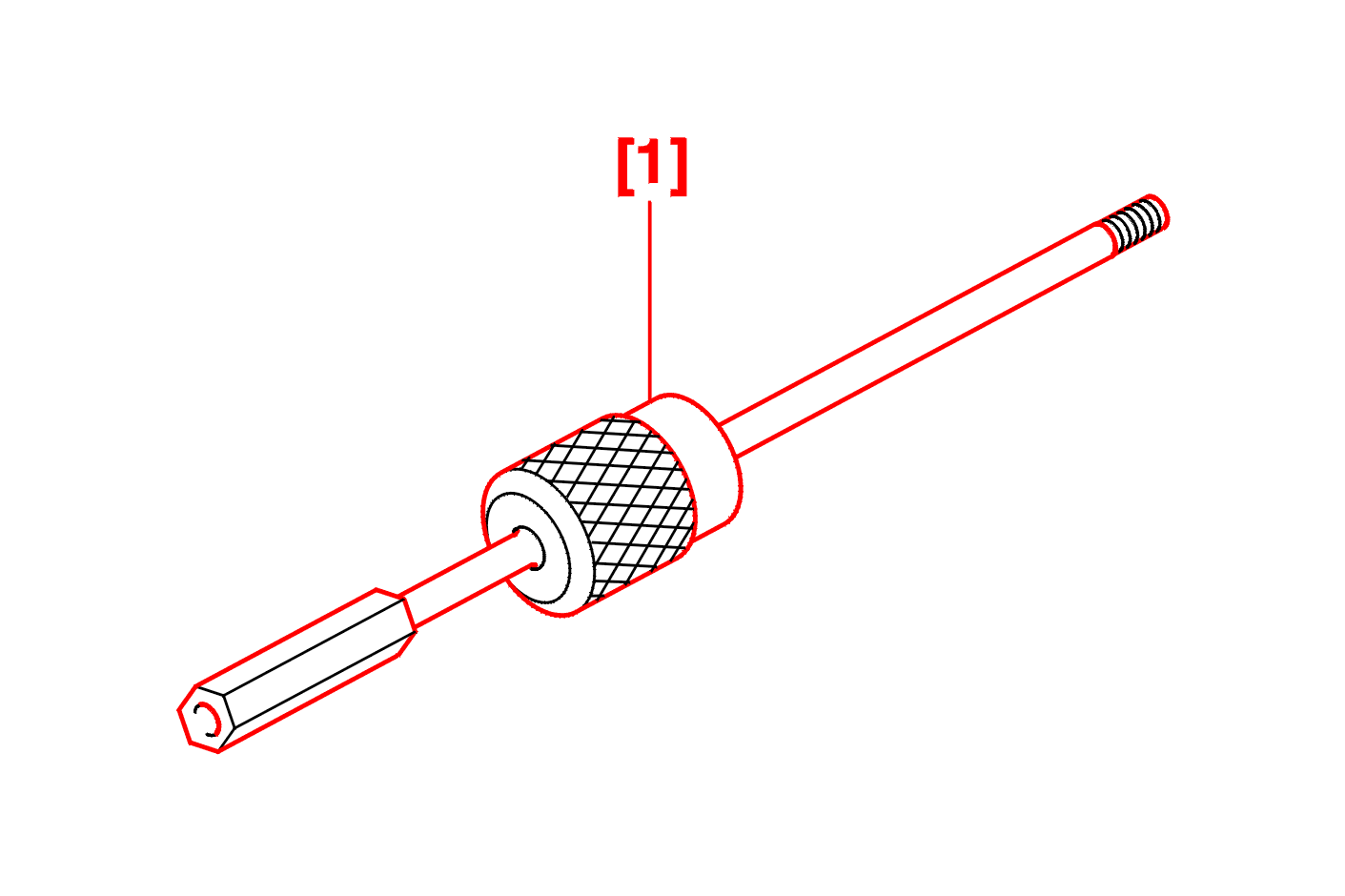

[1]	slide hammer	(-).0316-A	1671-T

reference	description	reference	reference

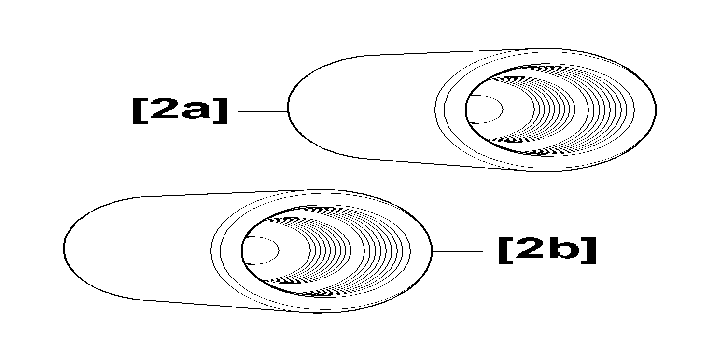

[2a]	threaded extraction sleeve	(-).0410-A	4083-T
[2b]	threaded extraction sleeve (specific to BOXER/JUMPER)	(-).0410-L	(-).0410-L

reference	description	reference	reference

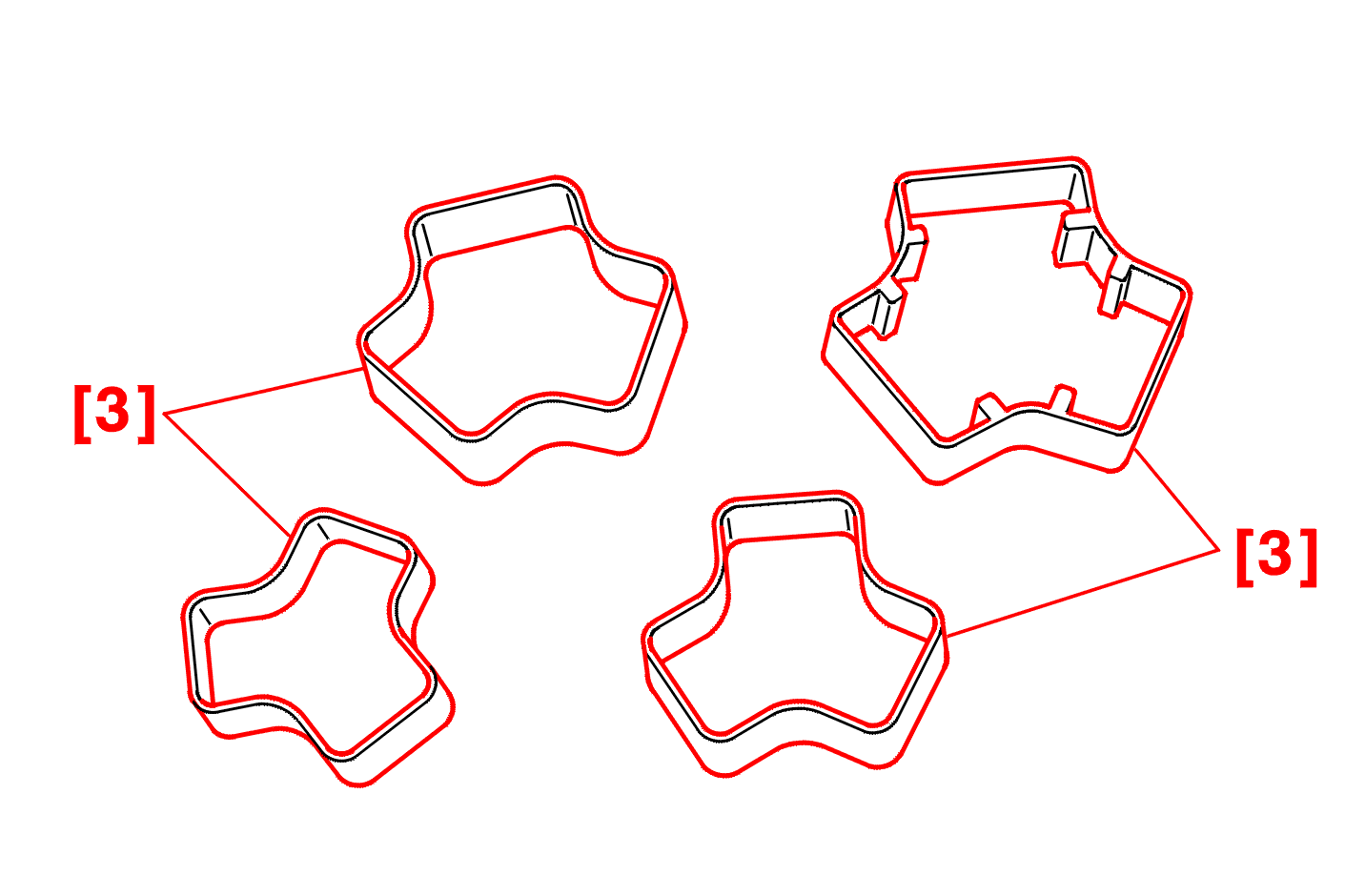

[3]	spider protector	(-).0410-J	(-).0410-J

reference	description	reference	reference

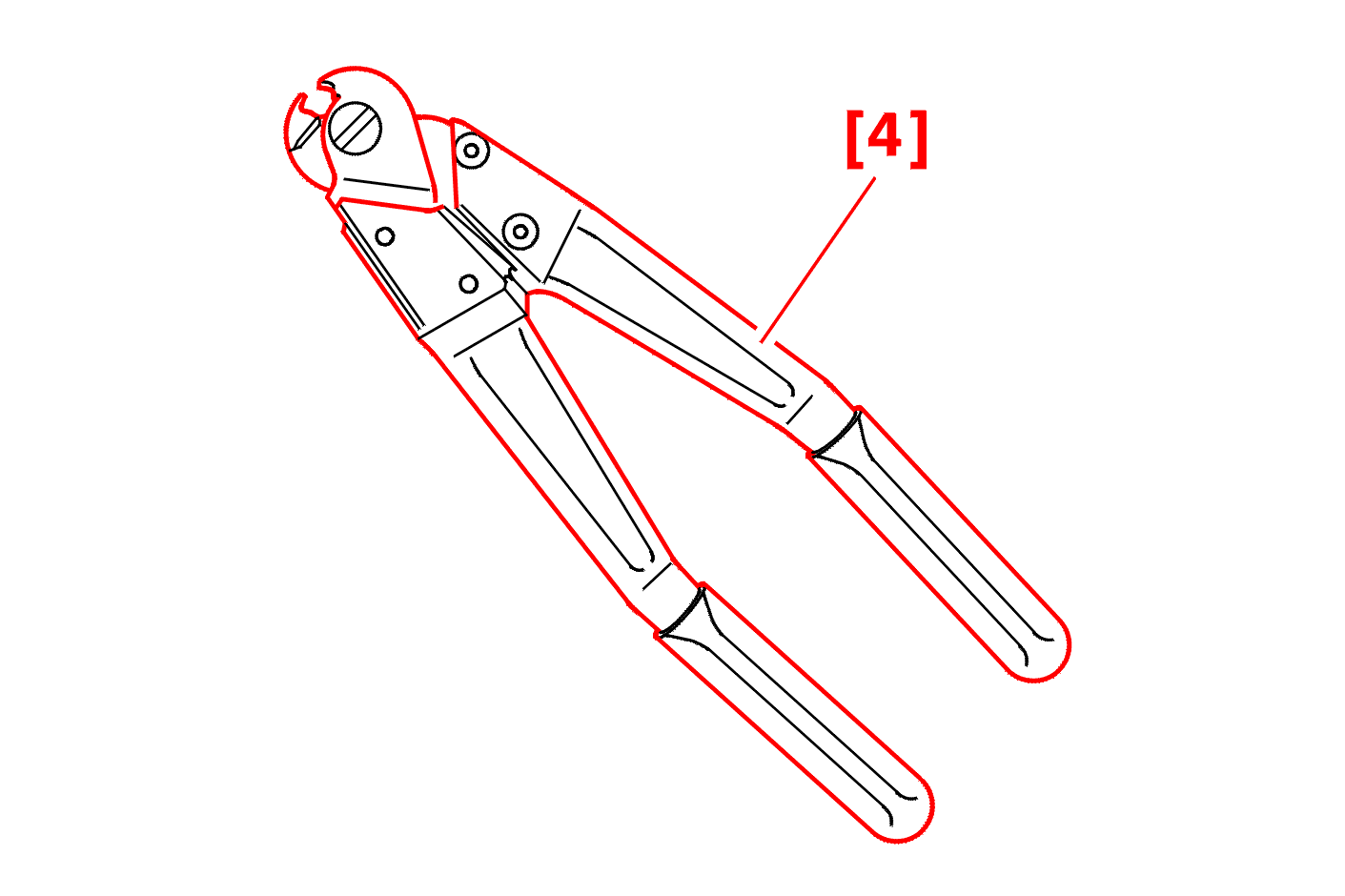

[4]	CLIC clip pliers	(-).0409	4178-T

reference	description	reference	reference

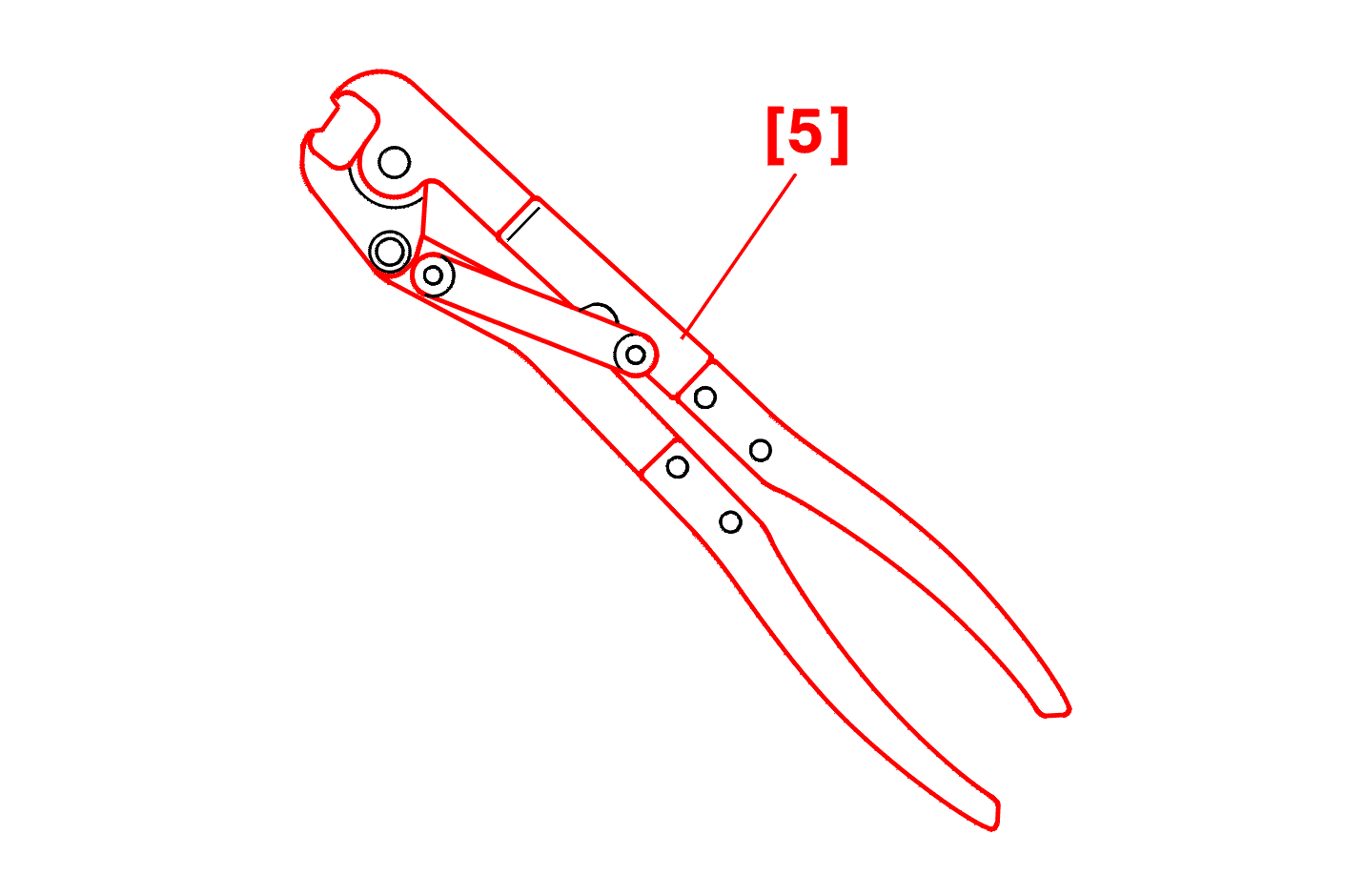

[5]	clip pliers : OETIKER	(-).0408	4151-T

1 - 1 - SPECIAL FEATURE : GAITERS WITH METAL SUPPORTS

reference	description	reference	reference

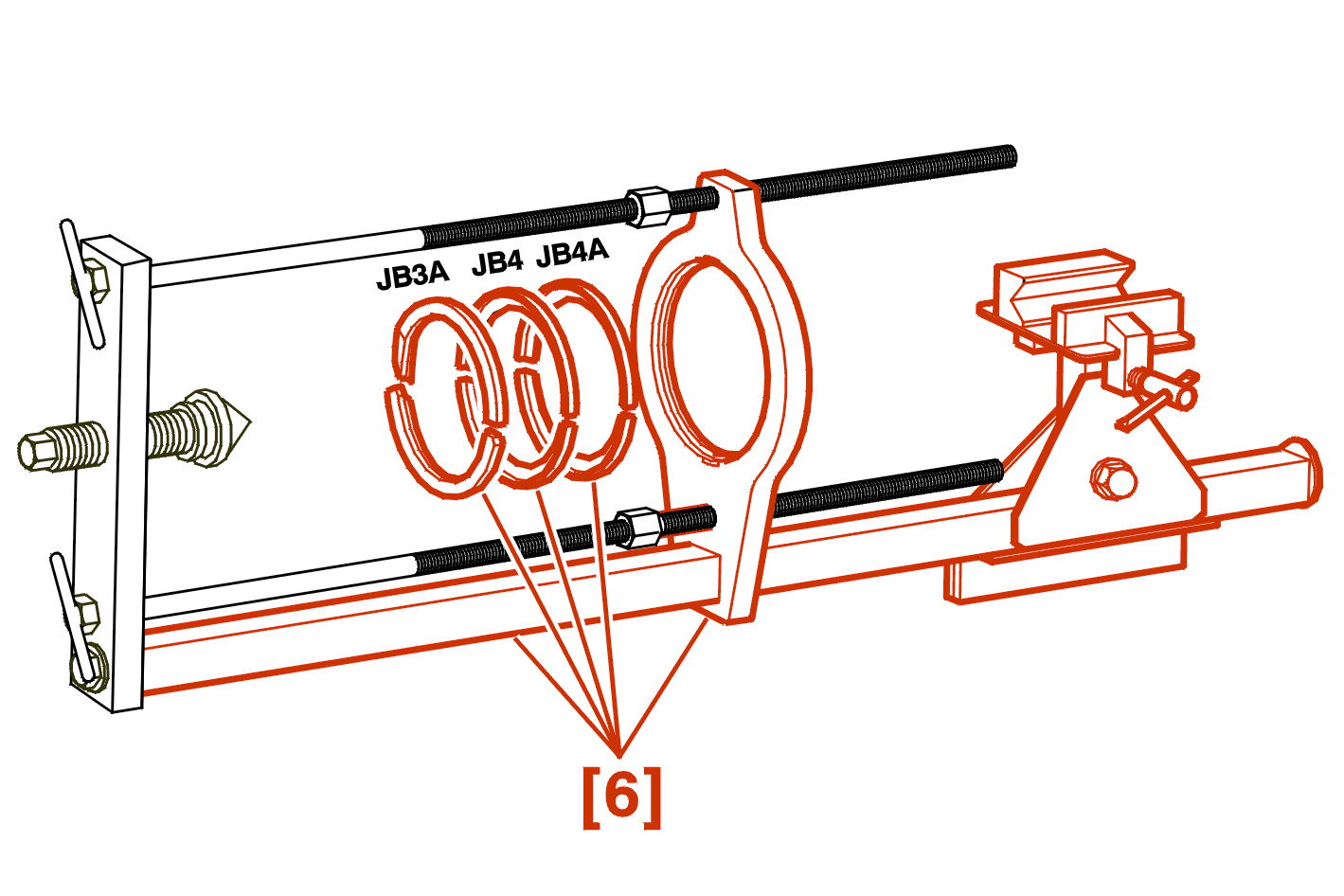

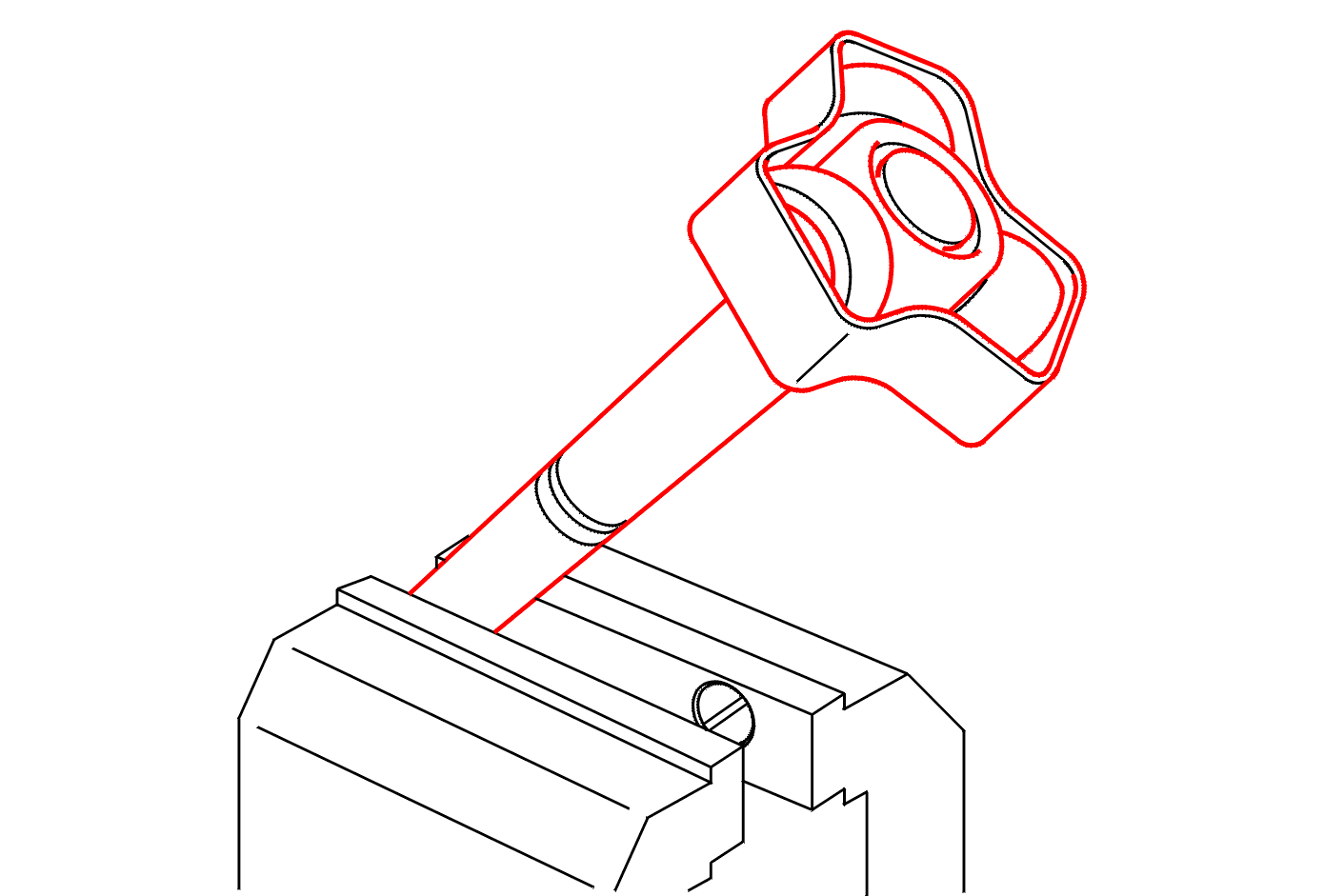

[6]	gaiter fitting tool on final drive end with metal supports for all models	(-).0410-M	(-).0410-M

2 - REPLACEMENT OF THE GAITER AT THE WHEEL END

NOTE : this operation can be carried out with the drive shaft on the vehicle .

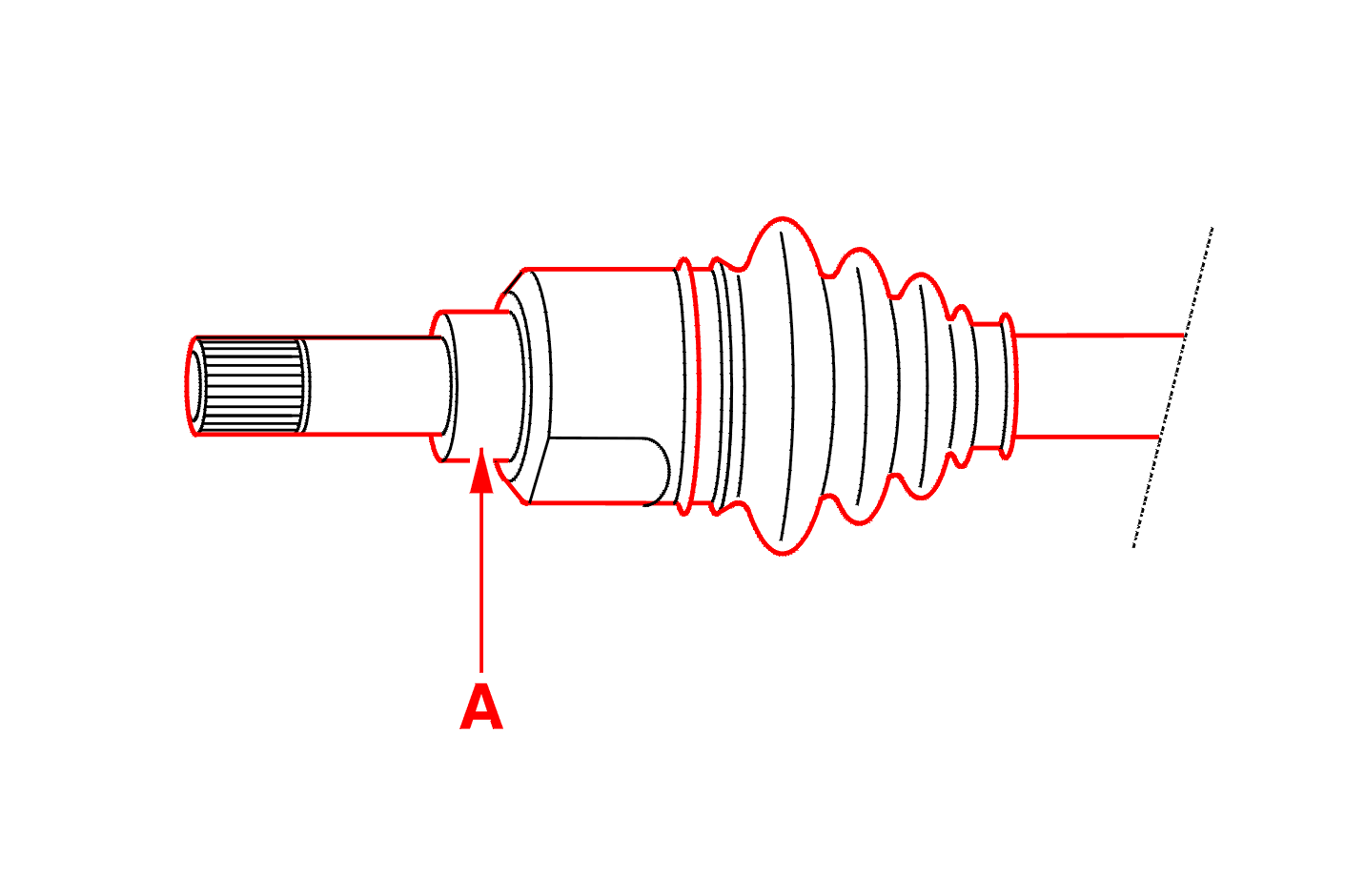

Place a piece of adhesive tape on the surface (A) .

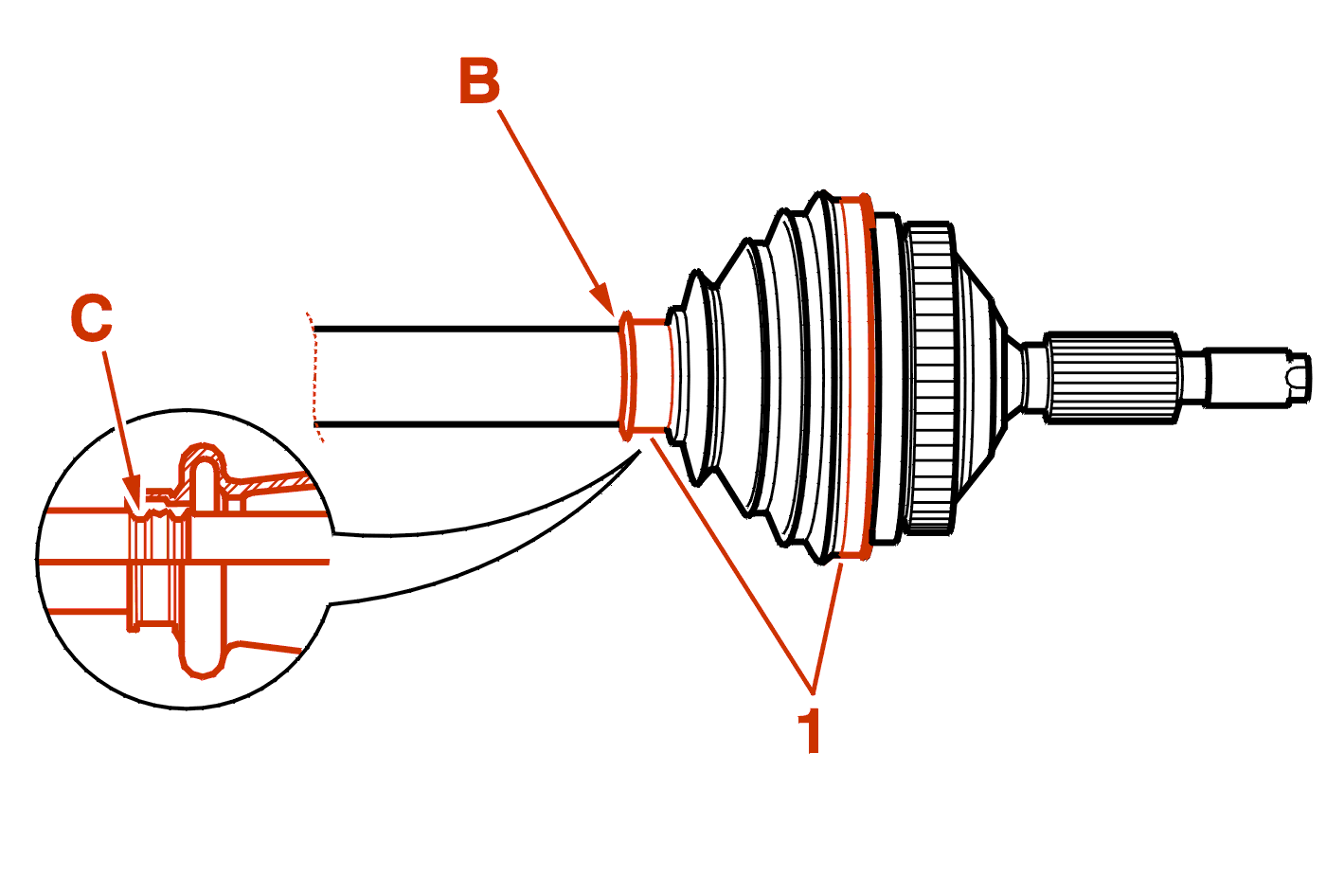

For driveshafts which do not have a positioning groove (C), Mark the position of the gaiter (B) .

Remove the clips (1) .

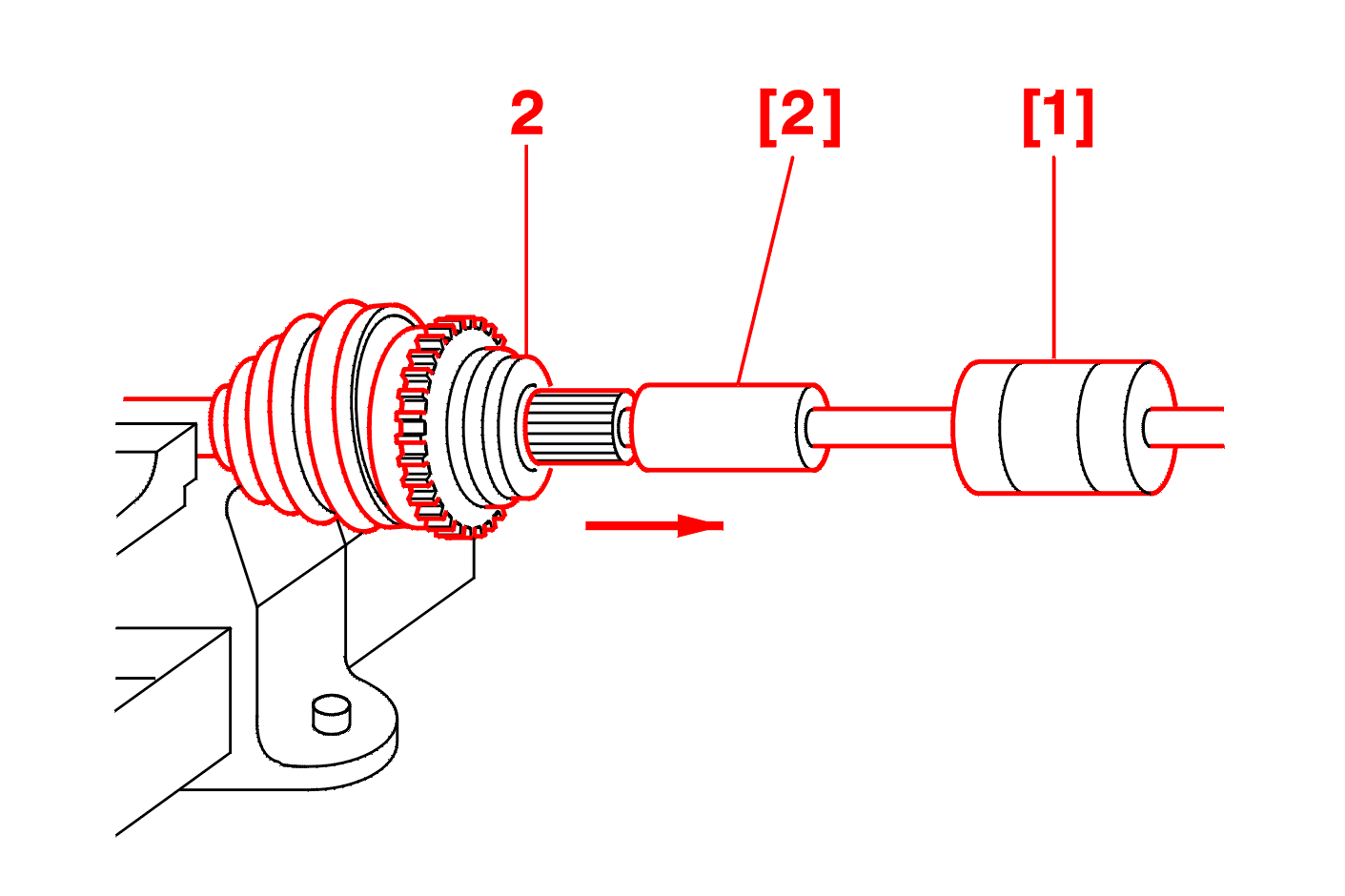

Remove the bell casing (2) using the tools [1] and [2] .

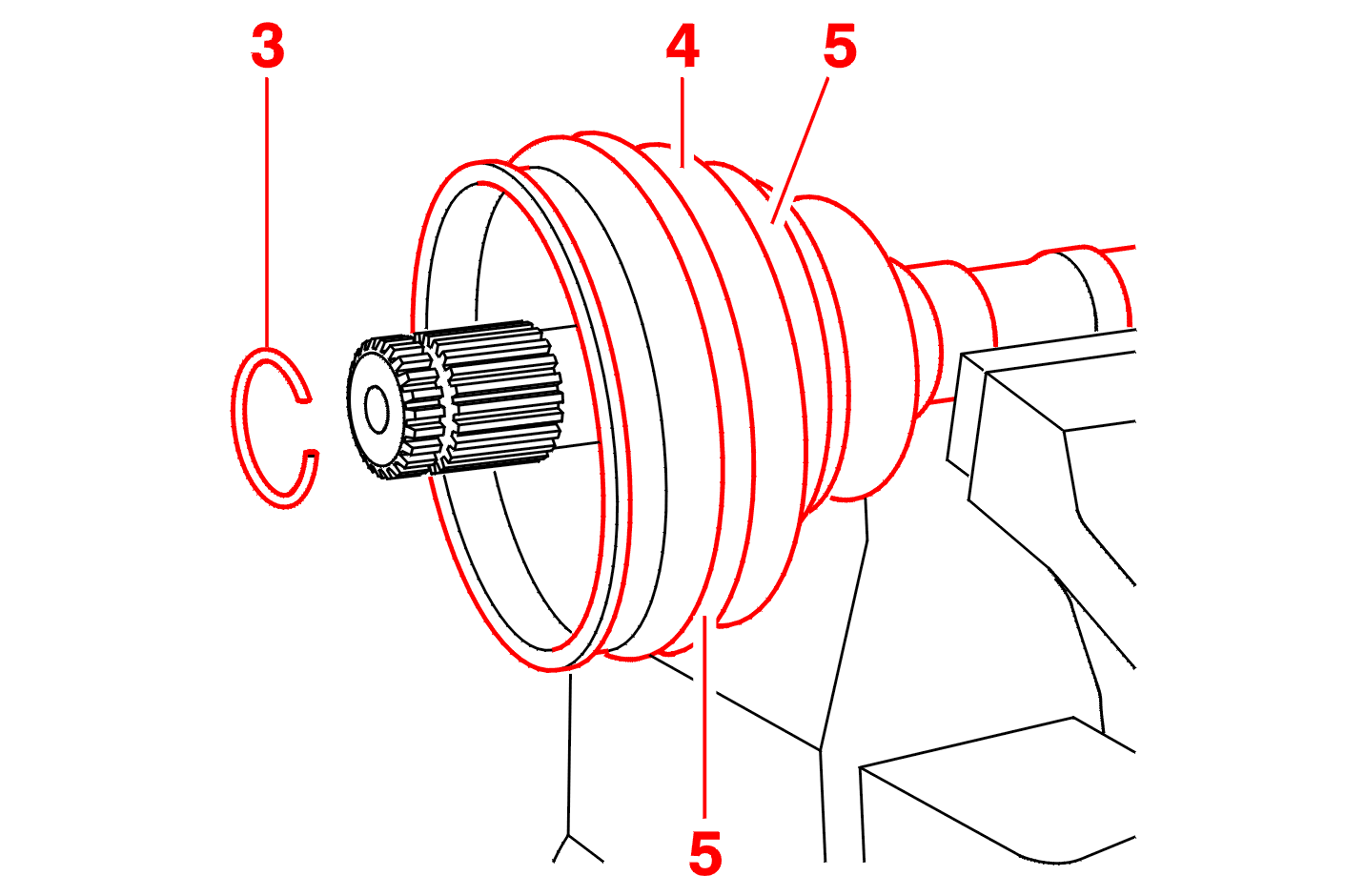

Remove :

the stop ring (3)
the drive shaft gaiter (4)
the rings (5) (depending on the fitting)

Remove as much of the old grease as possible .

IMPERATIVE : do not use solvents .

Fit :

a new clip
a new gaiter (4)
a new ring (3)
the rings (5)

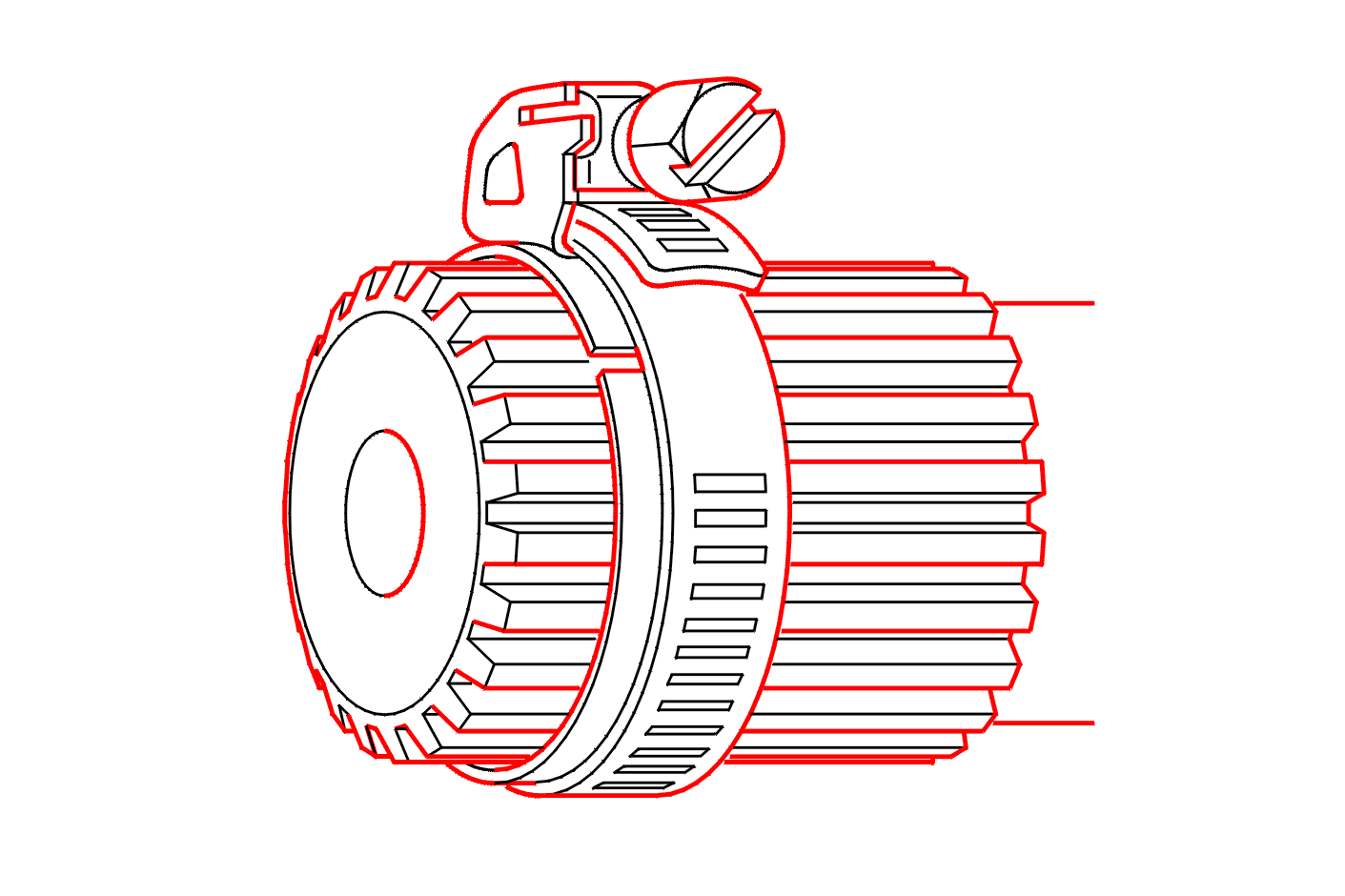

Fit a clip over the snap ring to ease fitting of the casing .

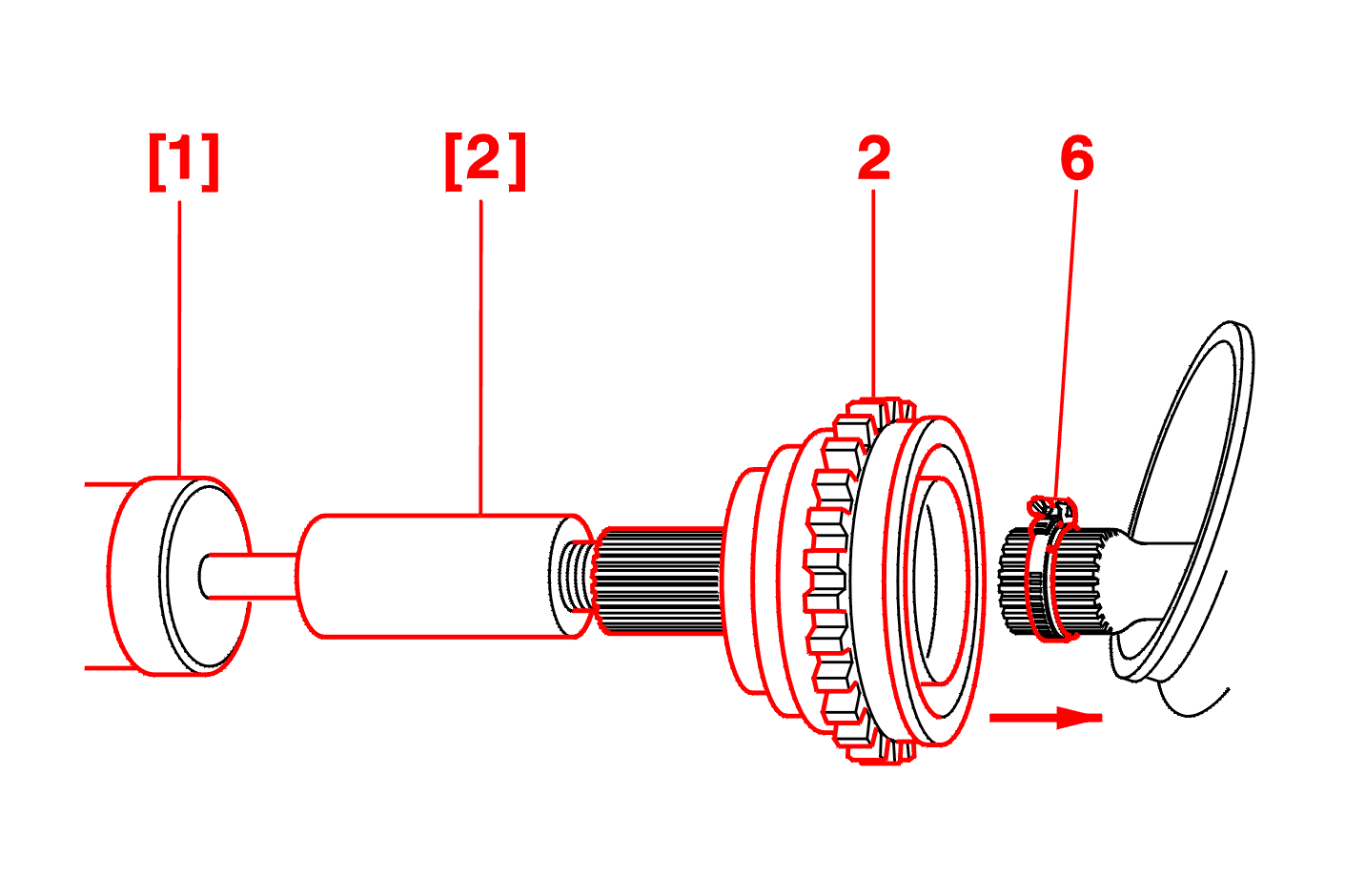

Refit the bell casing (2) on the shaft using the tools [1] and [2] .

Remove the collar (6) .

Fill the gaiter with all the grease available in the repair kit .

Position the gaiter and the retaining clips .

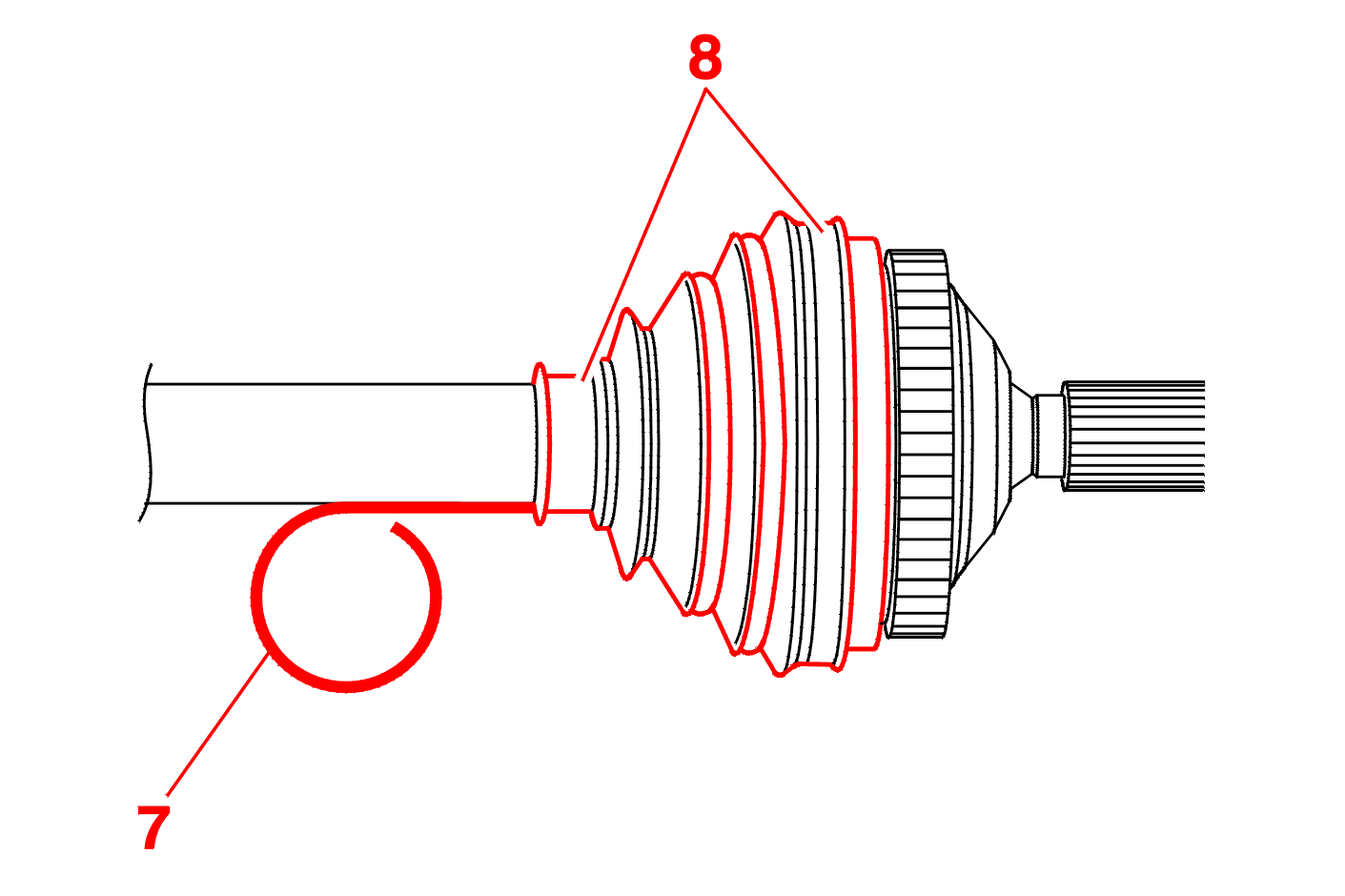

Using a welding rod (7), allow air into the interior of the gaiter (Except for gaiters fitted with a breather ring) .

Remove the welding rod (7) .

Tighten the clip(s) (8) using the pliers [4] or [5] .

3 - REPLACEMENT OF THE GAITER AT THE GEARBOX END

Place a piece of adhesive tape on the surface (A) .

REMOVE THE GAITER AT THE WHEEL END .

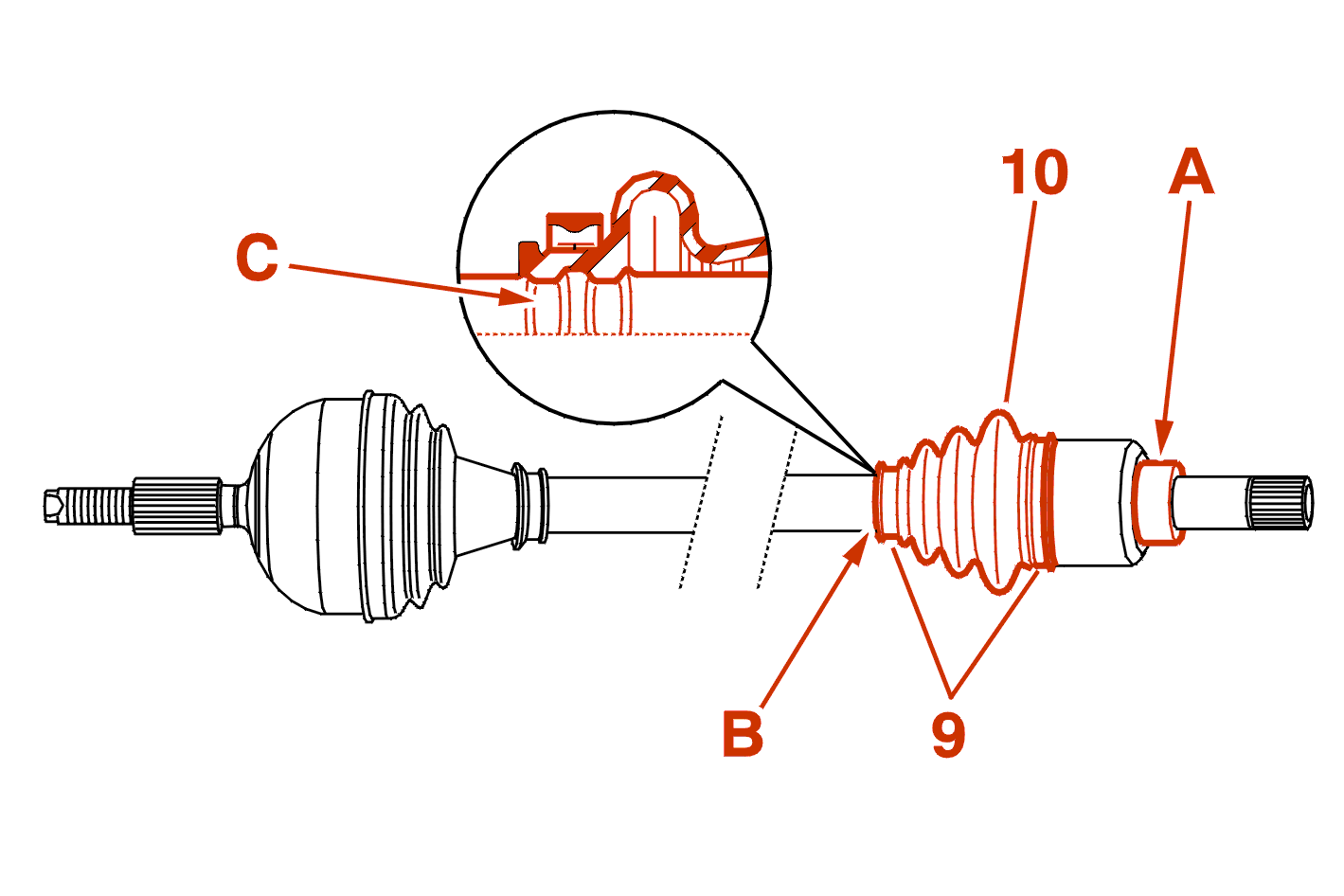

For driveshafts which do not have a positioning groove (C), Mark the position of the gaiter (B) .

Remove :

the collars (9)
the drive shaft gaiter (10)

Fit the spider protector .

Remove as much of the old grease as possible .

IMPERATIVE : do not use solvents .

Fit :

a new clip
a new gaiter

Fill the gaiter with all the grease available in the repair kit .

Position the gaiter and the retaining clips .

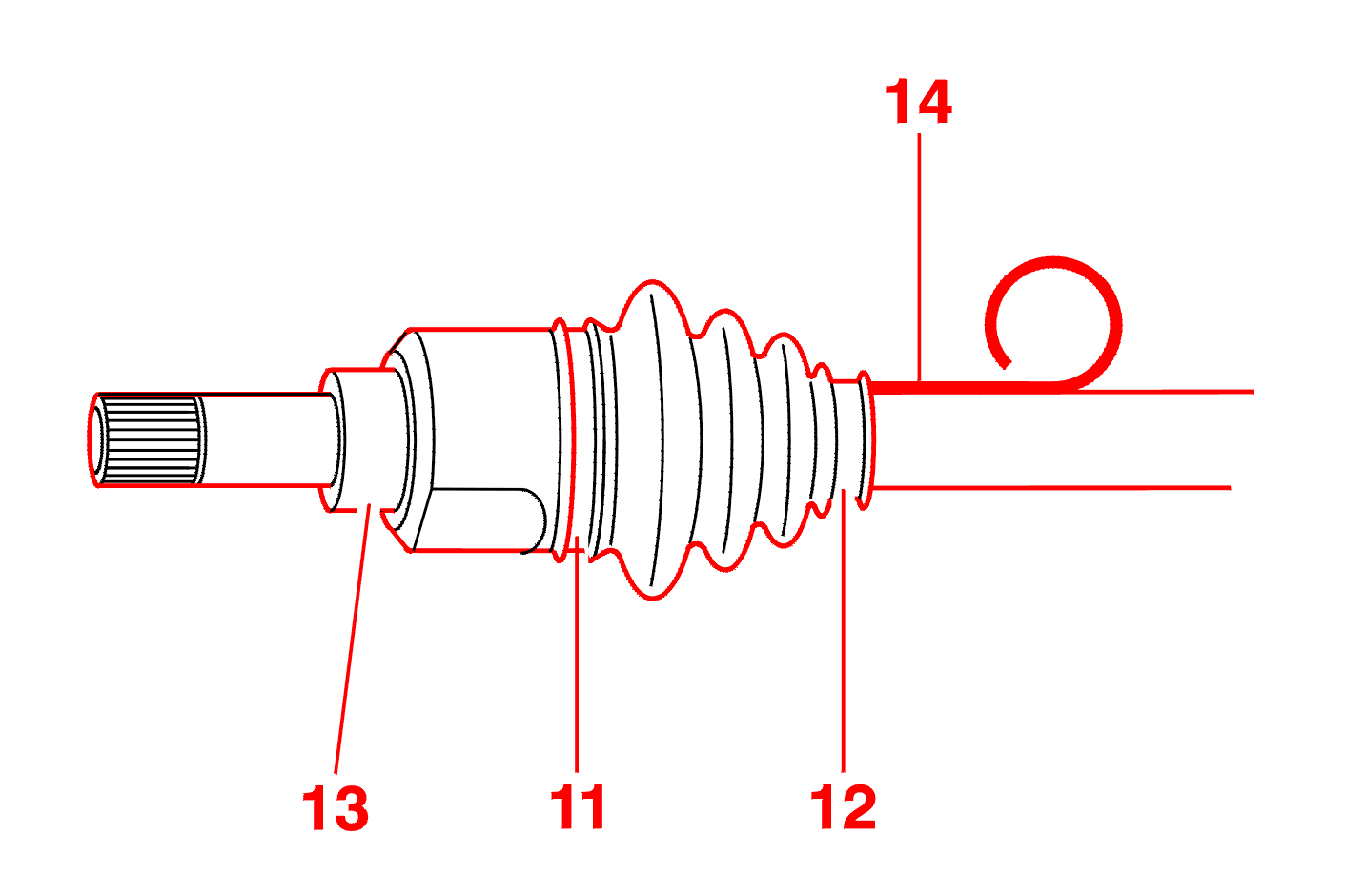

Gaiter with breather ring :

tighten the clip(s) (11), (12) using the pliers [4] or [5]
refit the gaiter at the wheel end
remove the adhesive tape (13)
fit the drive shaft (following the method described in brochure : drive shafts (according to vehicle))

Gaiter without breather ring :

tighten the collar (11)
refit the gaiter at the wheel end
remove the adhesive tape (13)
fit the drive shaft (following the method described in brochure : drive shafts (according to vehicle))
position the gaiter in relation to the mark made on removal or in its positioning groove
using a welding rod (14), allow air into the interior of the gaiter
remove the welding rod (14)
tighten the collar (12)

3 - 1 - SPECIAL FEATURE : GAITER WITH SET-IN OR BONDED METAL SUPPORT

Gaiter with bonded metal support : Fill the gaiter with all the grease available in the repair kit .

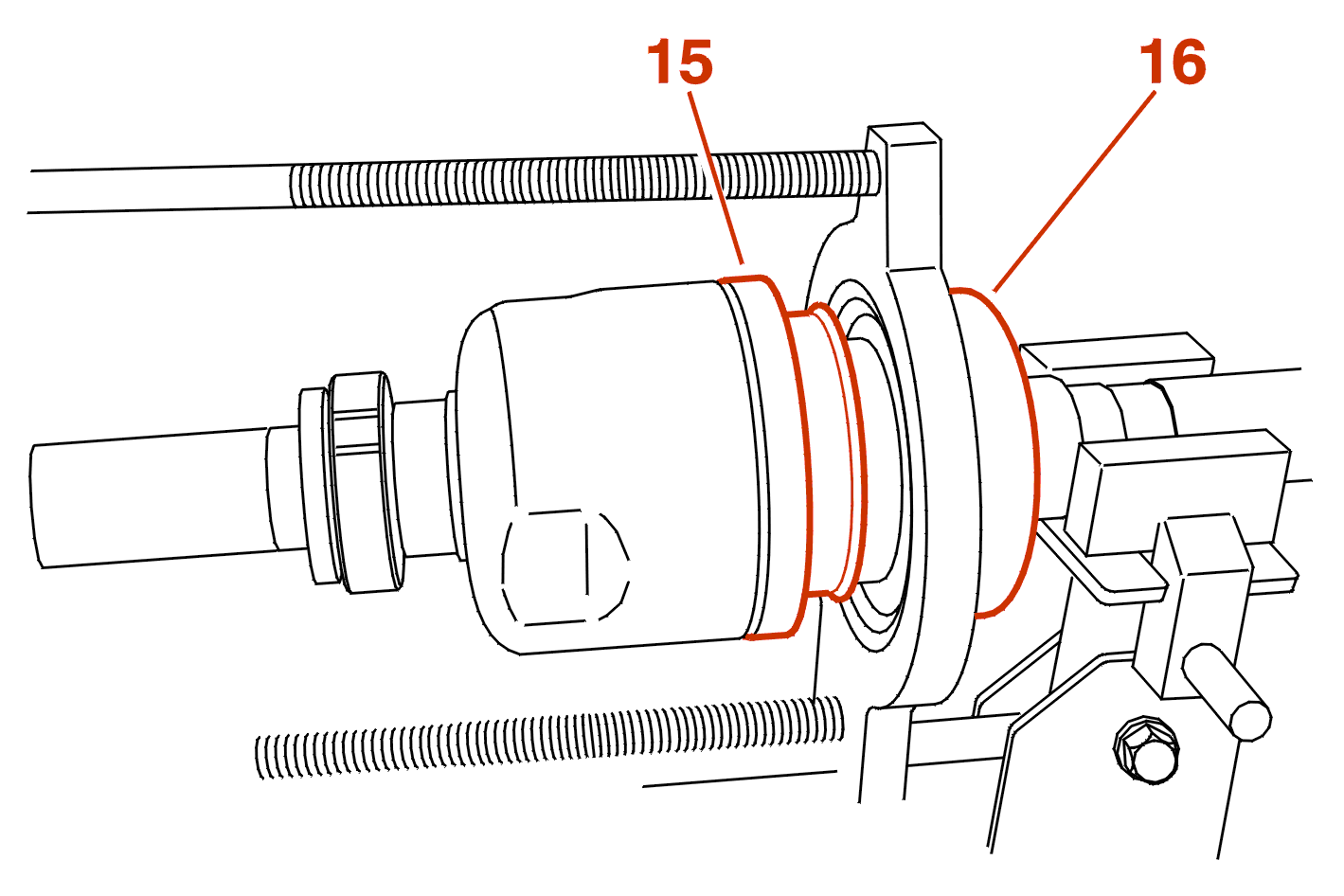

Position :

the metal support (15) (set-in support)
the new gaiter (16)
the collar

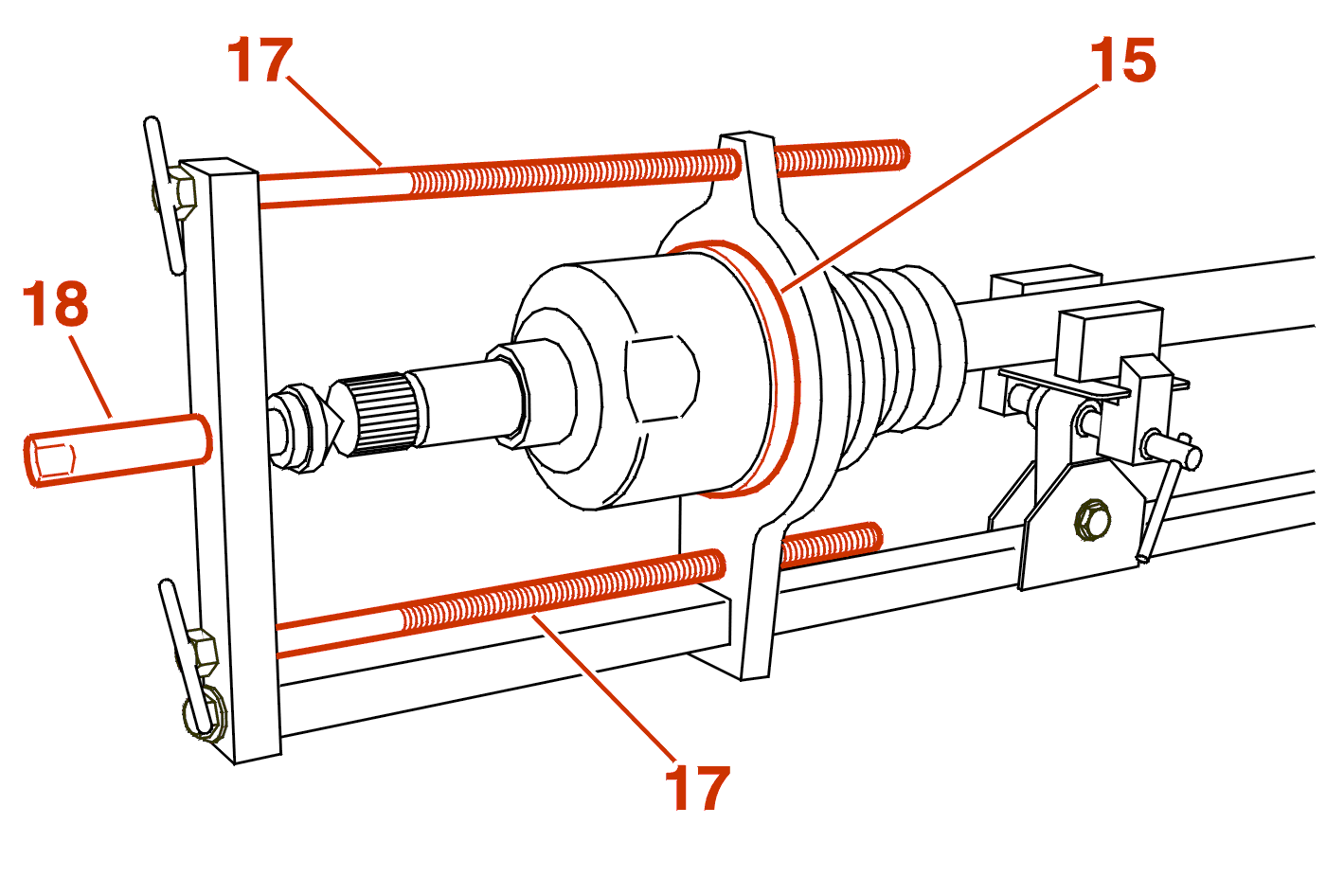

the driveshaft on the tool [6]

Position the metal support (15) using the bolts (17) .

Compress the metal support (15) using the bolt (18) .

Crimp the metal support on the inner joint, using a chisel .

Gaiter with set-in metal support : Fill the gaiter with all the grease available in the repair kit .

For the rest of the operation, proceed as in the previous method .
