B2FH02K1 - 406D9
REPLACEMENT DRIVE SHAFT BEARING ALL TYPES
1 - SPECIAL TOOLS
reference | description | reference | reference |
---|---|---|---|

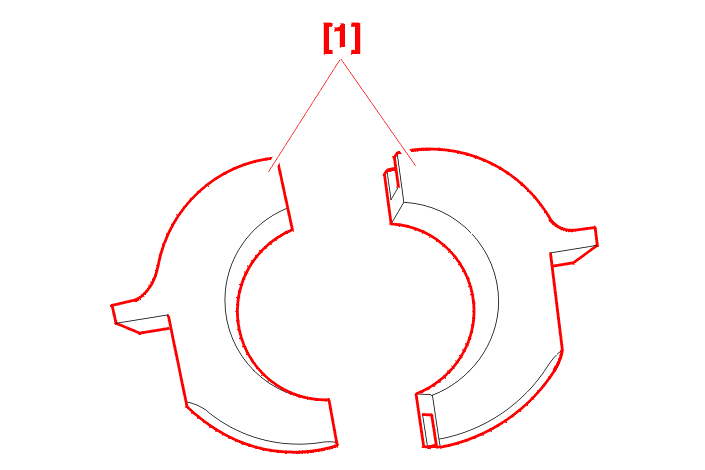

[1] | drive shaft bracket | (-).0403-R | (-).0403-R |
reference | description | reference | reference |
---|---|---|---|

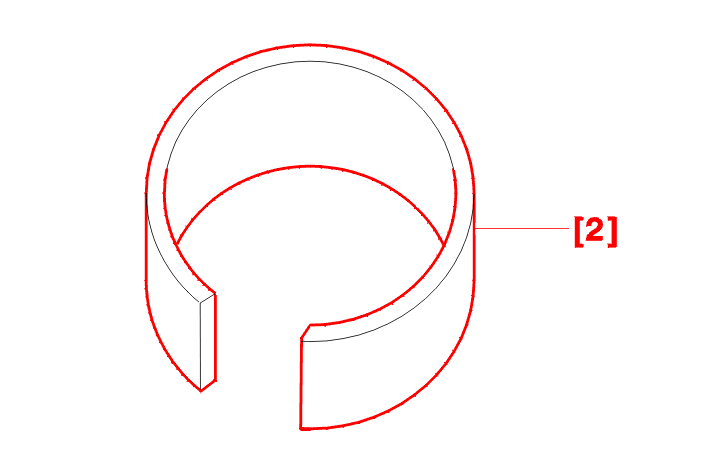

[2] | drive shaft retaining ring ø 72 mm | (-).0410-D | 4101-T |
reference | description | reference | reference |
---|---|---|---|
[3] | drive shaft retaining ring ø 65 mm | (-).0410-F | 4518-T |
reference | description | reference | reference |
---|---|---|---|

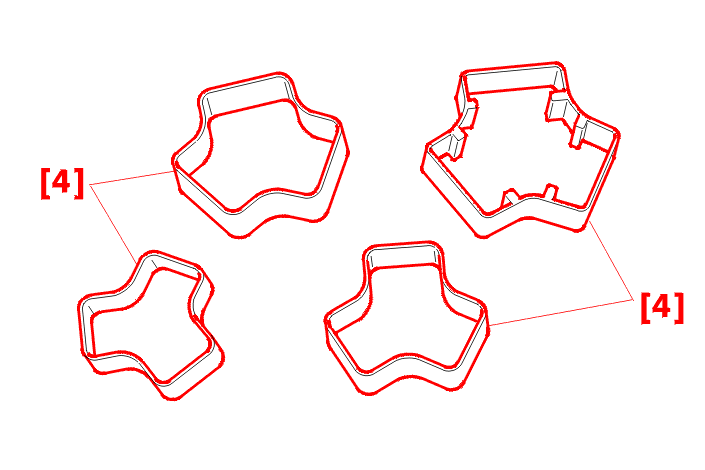

[4] | spider protector | (-).0410-J1 (-).0410-J2 (-).0410-J3 (-).0410-J4 |
(-).0410-J1 (-).0410-J2 (-).0410-J3 (-).0410-J4 |
reference | description | reference | reference |
---|---|---|---|

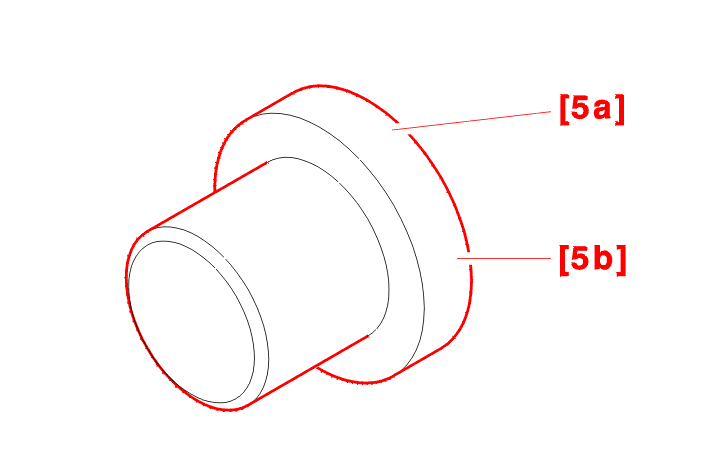

[5a] | tool for fitting the MB3 automatic gearbox adapter sleeve | (-).0410-G | 4608-TH |
[5b] | tool for fitting the AL4 automatic gearbox adapter sleeve | (-).0410-K | (-).0410-K |
reference | description | reference | reference |
---|---|---|---|

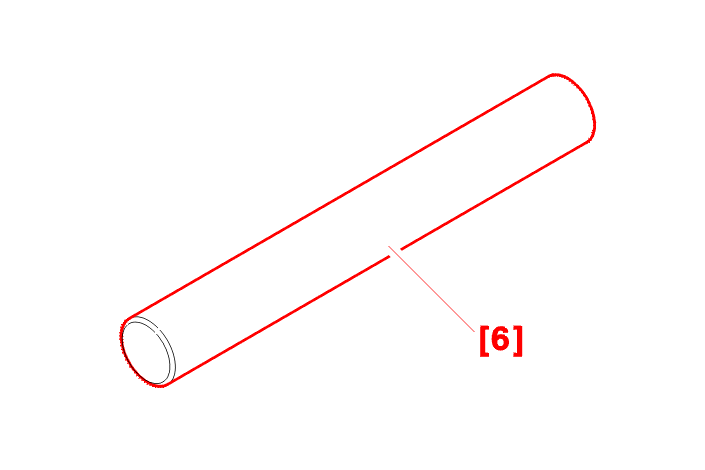

[6] | tool for fitting the bearing | (-).0410-BZ | 0410-BZ |
reference | description | reference | reference |
---|---|---|---|

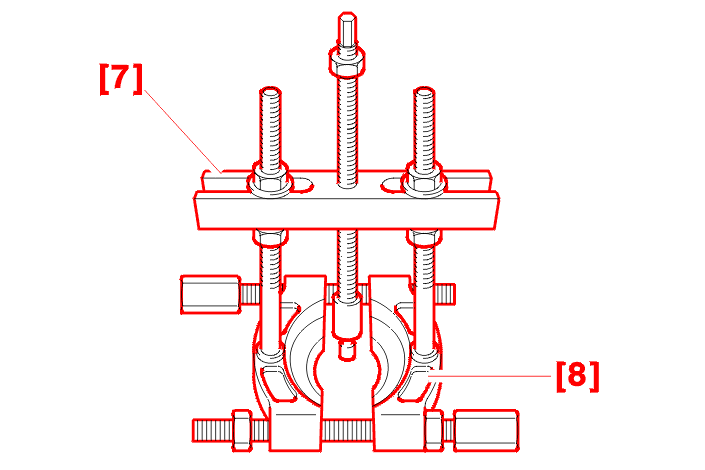

[7] | mechanical bolt cross-piece | FACOM U 53 K2 | FACOM U 53 K2 |
[8] | stripping device | FACOM U 53 T2 | FACOM U 53 T2 |
reference | description | reference | reference |
---|---|---|---|

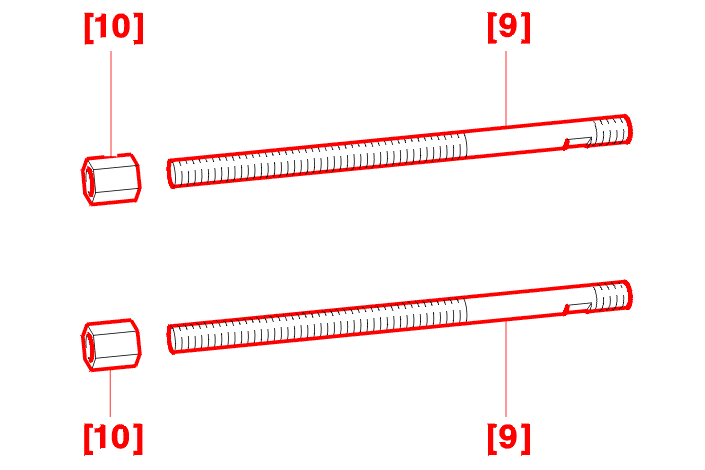

[9] | replacement tie-rod | FACOM U 53 RL | FACOM U 53 RL |
[10] | adaptor | FACOM U 53 H | FACOM U 53 H |

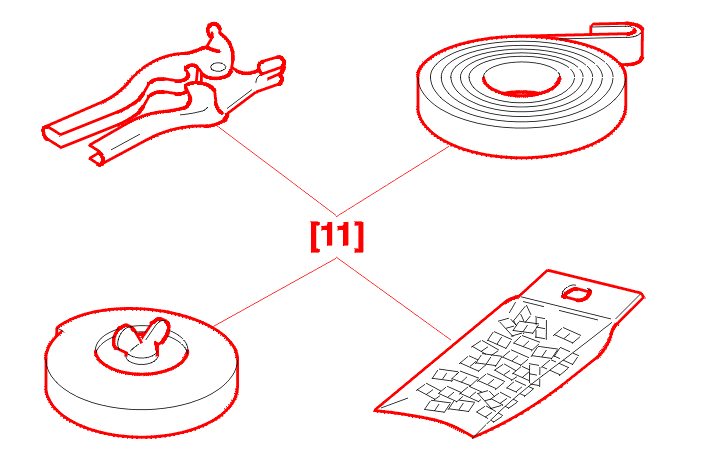

[11] Clips-bindings fitting kit .
reference | description | reference | reference |
---|---|---|---|

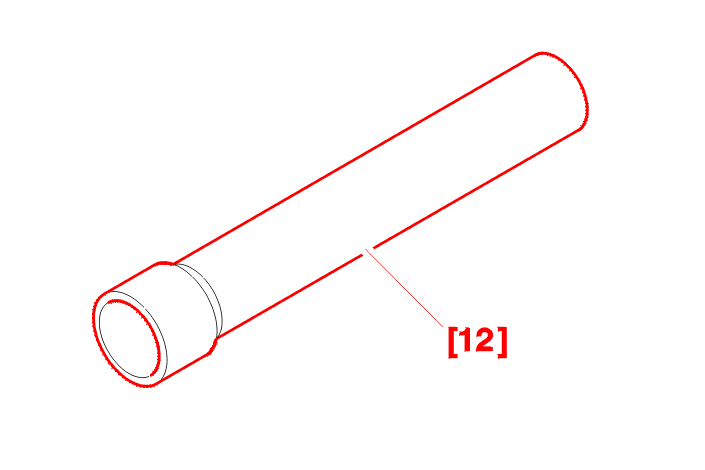

[12] | tripod fitting drift | (-).0410-C | 4101-T |
reference | description | reference | reference |
---|---|---|---|
[13] | CLIC clip pliers | (-).0409 | 4178-T |
reference | description | reference | reference |
---|---|---|---|

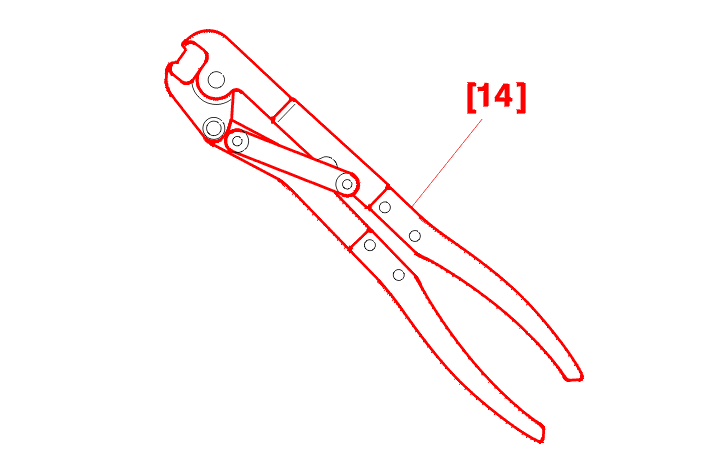

[14] | clip pliers : OETIKER | (-).0408 | 4151-T |
2 - REPLACEMENT OF THE BEARING

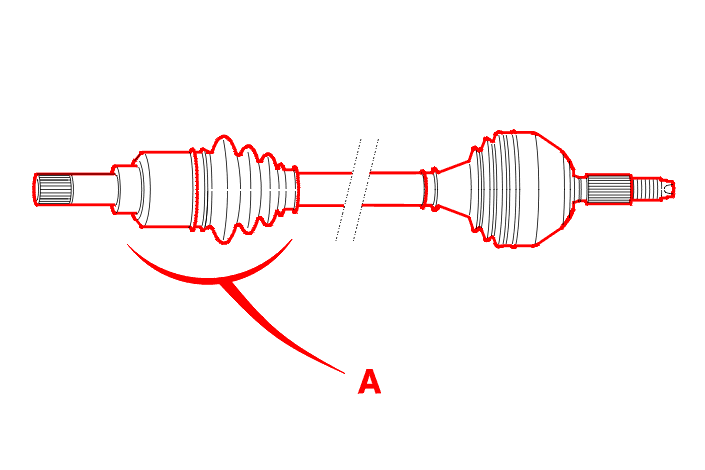

Uncouple the joint at the gearbox end (A) .

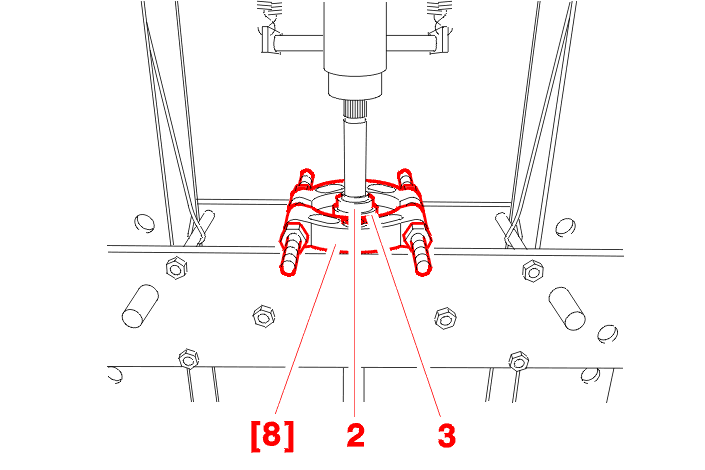

Using a press and the tool [8], remove the stop ring (2) and the bearing (3) simultaneously .

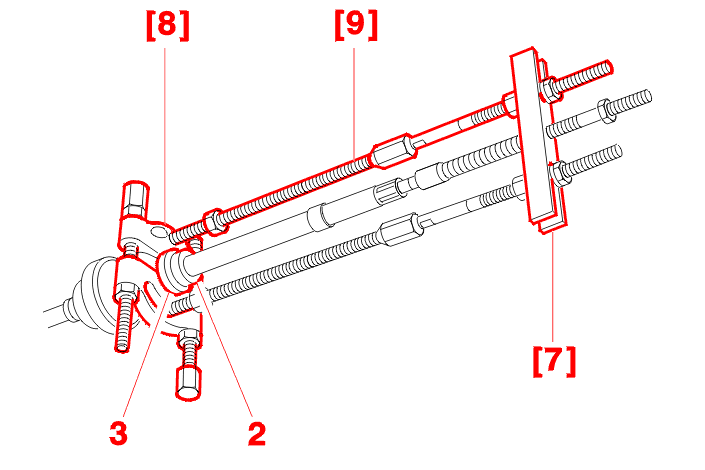

Other procedure :

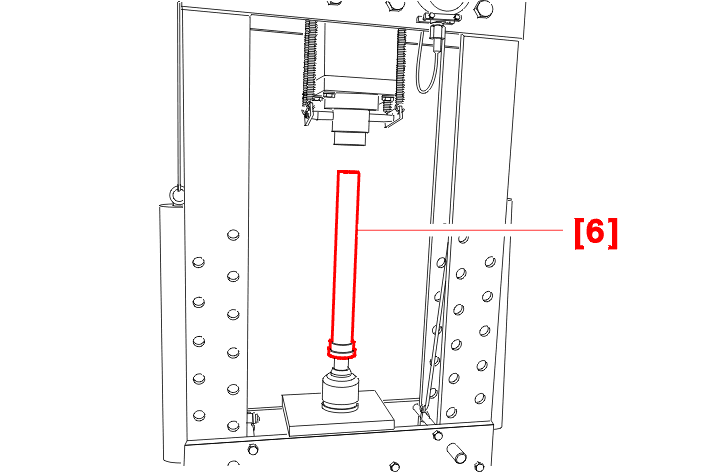

Refit a new bearing and stop ring simultaneously using the tool [6] .
Fit a new O-ring .
Clean and grease the splines .
Special feature : Automatic gearbox .

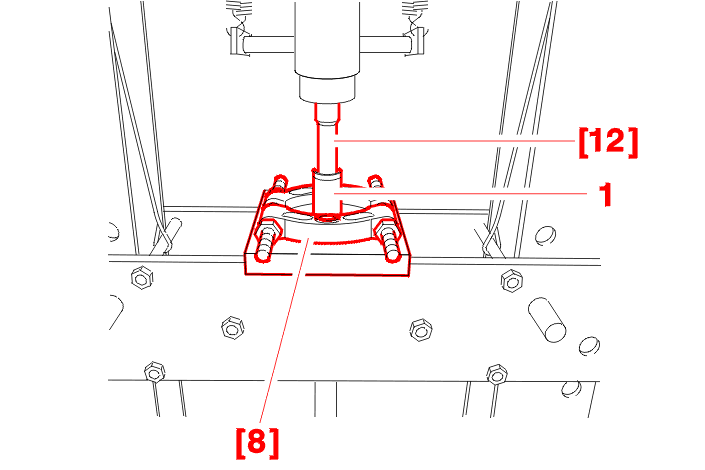

Extract the sleeve (1) using the tools [12] and [8] .

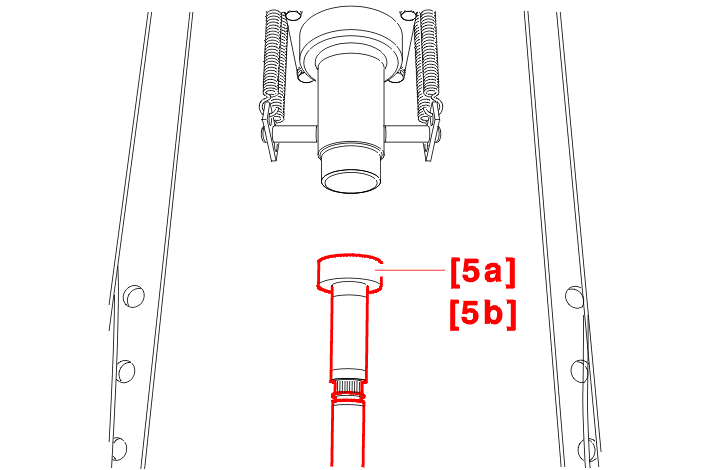

Refit the sleeve using the tool [5a] or [5b] :
