B2FH03K1 - 406D9
REPLACEMENT GAITER BEARING AT GEARBOX END (MB3 DRIVE SHAFT)
1 - SPECIAL TOOLS
| reference | description | reference | reference |
|---|---|---|---|

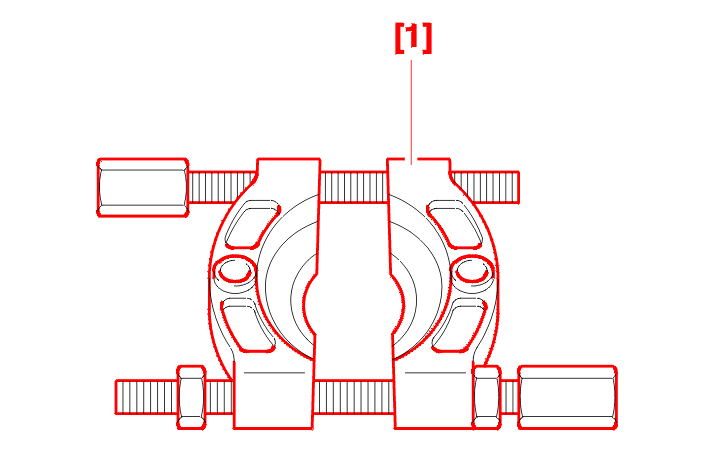

| [1] | stripping device | FACOM U 53 K2 | FACOM U 53 K2 |
| reference | description | reference | reference |
|---|---|---|---|

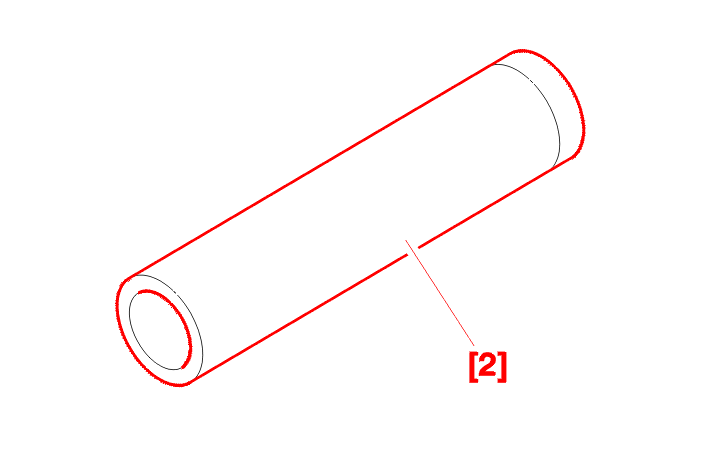

| [2] | tube for fitting the gaiter bearing at the gearbox end | (-).0410-H | 4608-TG |
| reference | description | reference | reference |
|---|---|---|---|

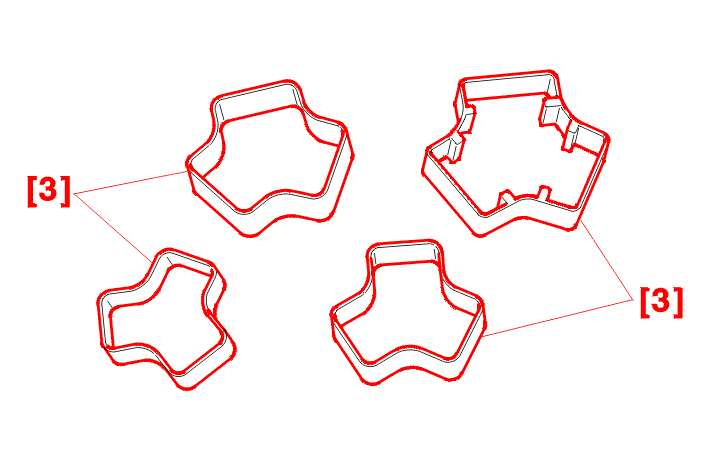

| [3] | spider protector | (-).0410-J | (-).0410-J |
2 - REPLACEMENT OF THE GAITER BEARING AT THE GEARBOX END
Fit the spider protector .
Mark the position of the spider in relation to the shaft .

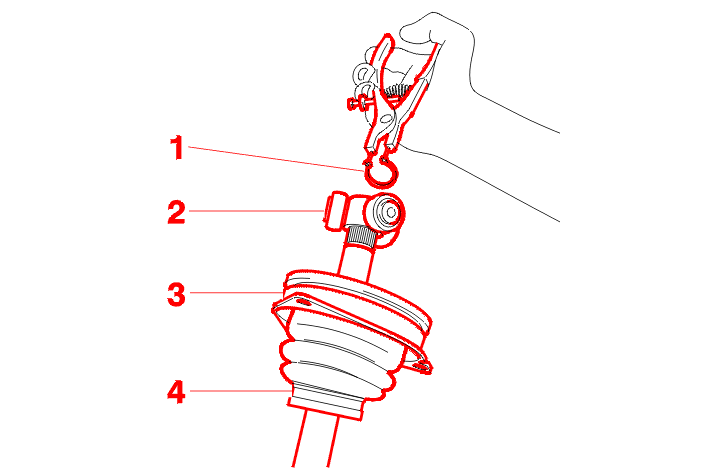

Remove :

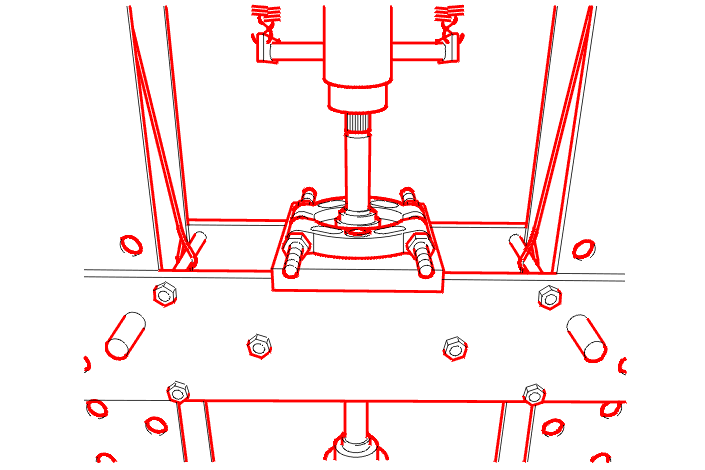

Remove the gaiter bearing .

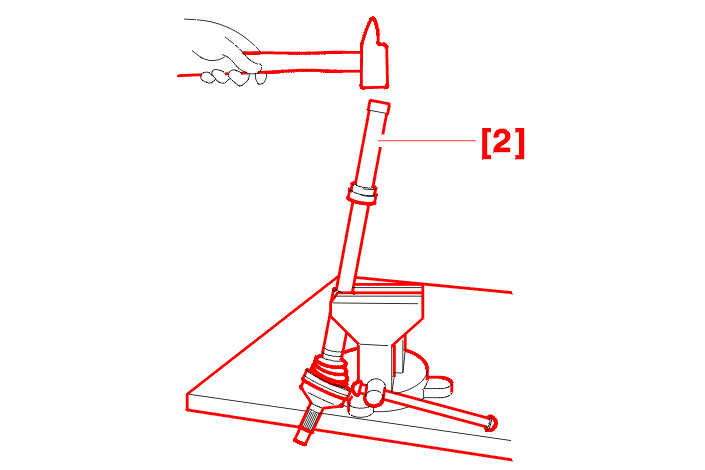

Fit a new bearing using the tool [2] .
Continue the fitting operations in the reverse order to removal .
