B3BG0RK1 - 406D9

REPLACEMENT FRONT SUSPENSION SHOCK ABSORBERS

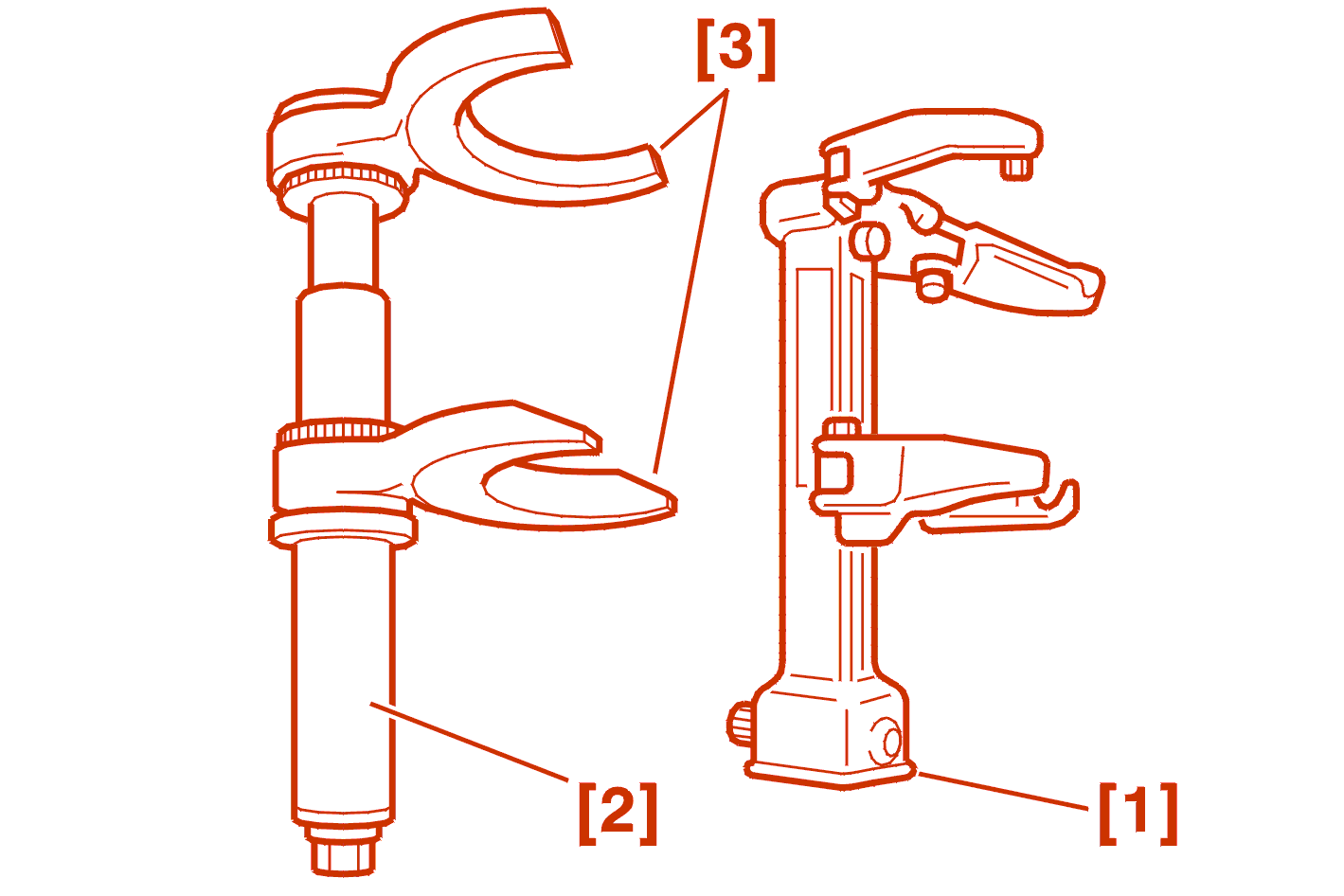

1 - SPECIAL TOOLS

[1] Spring compressor U77 FACOM .

[2] Spring compressor MG INTERNATIONAL .

[3] Cups : Reference M2 .

2 - REMOVAL

REMOVE THE SUSPENSION STRUT .

Place the coils of the spring in the spring compressor support forks .

Compress the spring .

WARNING : when compressing the spring, check that the coils are correctly positioned in the support forks .

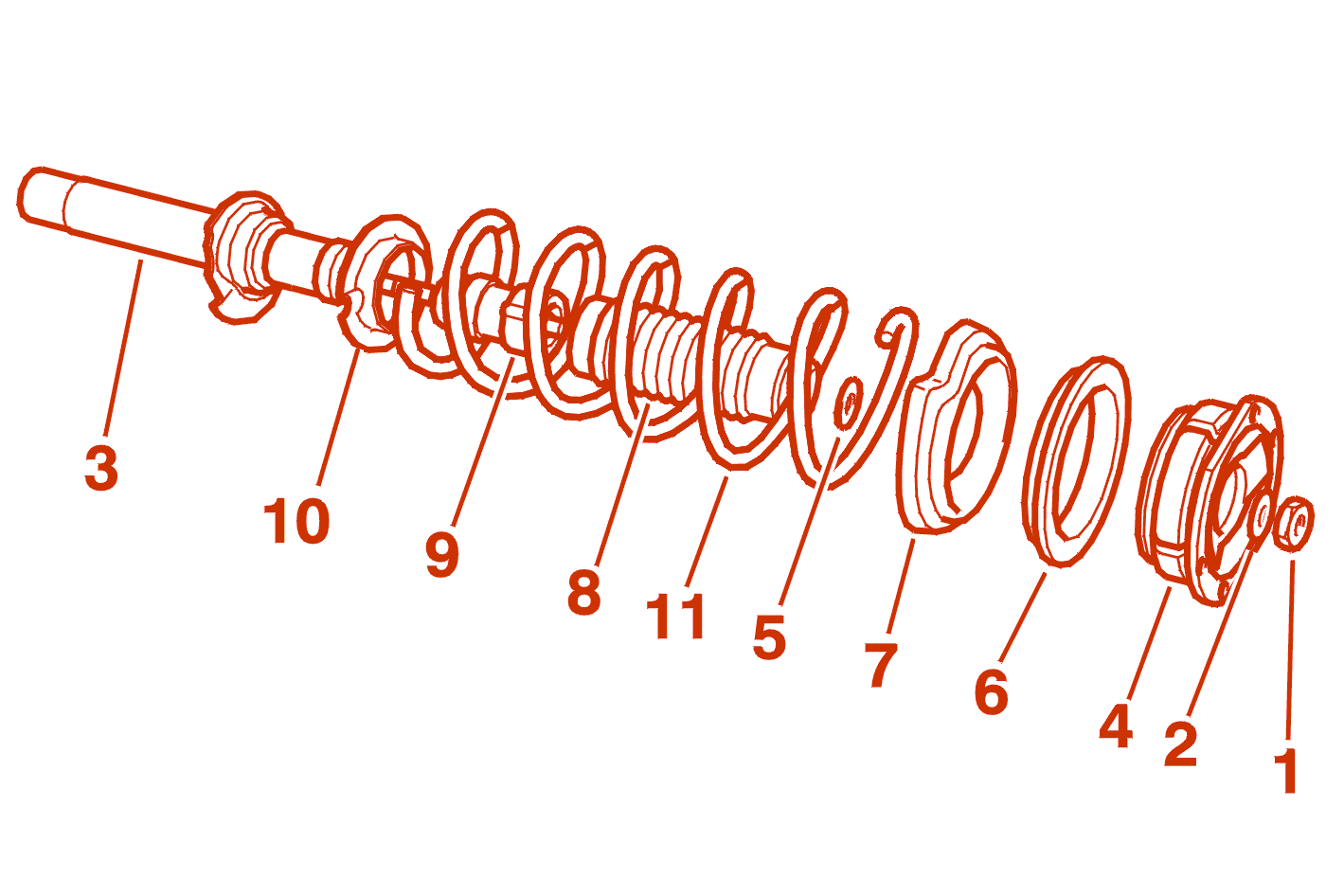

Remove :

• the shock absorber rod nut (1)
• the washer (2)
• the damper (3)
• the spring top cup (4)
• the washer (5)
• the stop (6)
• the spring top cup (7)
• the shock absorber rod protector (8)
• the bump rubber (9)
• the lower rubber cup (10)

WARNING : opening the FACOM tool to maximum does not allow the spring to release from the tool .

3 - REFITTING

Proceed in the reverse order to removal .

Always replace the nut (1) and tighten it to 6.5 daN.m .

FIT THE SUSPENSION STRUT .
