B3BH00K1 - 406D9

REMOVAL - REFITTING REAR ANTI-ROLL BAR MOUNTINGS

1 - REMOVAL

The rear anti-roll bar is secured to the body by means of mountings and is connected to the rear pivot by a connecting rod .

Remove the 3 nuts and the securing bolt in the anti-roll bar bearings .

Remove the anti-roll bar mounting yokes .

Pull the anti-roll bar towards the rear of the vehicle .

Remove the anti-roll bar mounting .

2 - REFITTING

Clean the anti-roll bar .

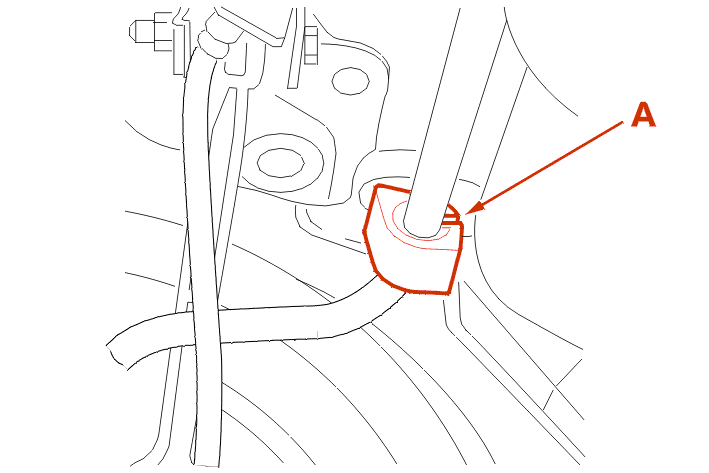

Position the rubber mounting on the anti-roll bar (slot (A) on the body side) .

Secure the mounting cap to the body .

Tighten the 3 nuts and the securing bolt in the bearings to 4 daNm .

NOTE : do not lubricate the bearings because of their material (source of noise) .
