B3CB08K1 - 406D9
DATA TIGHTENING TORQUES FRONT SUSPENSION
1 - DATA
| front anti -roll bar | ||||
|---|---|---|---|---|
| model code | 8B BFZ 2 | 8B LFY 2 | 8B LFY 8 | 8B RFV 2 |
| engine type | XU5JP | XU7JP4 | XU7JP4 | XU10J4R |
| special features | - | not level(s) | level | - |
| anti-roll bar diameter (mm) | 23 | 23 | 24 | 24 |
| front anti -roll bar (continued) | |||
|---|---|---|---|
| model code | 8B D8B D | 8B DHX E | 8B P8C D 8B P8C E |
| engine type | XUD9TF | XUD9BTF | - |
| special features | - | - | - |
| anti-roll bar diameter (mm) | 24 | 24 | 24 |
| front suspension angles | |
|---|---|
| model code | all models |
| special features | - |
| H1 (mm) | 144 |
| toe-in/wheel (mm) | 0 ± 0.5 |
| camber | 0° ± 30' |
| castor | 3°30' ± 30' |
| pivot | 11° 30' ± 40' |
| kerb weight (mm) | 172 |
These values are for a reference height (H1) .
H1 : Height from ground to front jacking bracket at reference height .
Kerb weight (mm) : The front reference height, at kerb weight, is measured in the same place as with the vehicle unclamped .

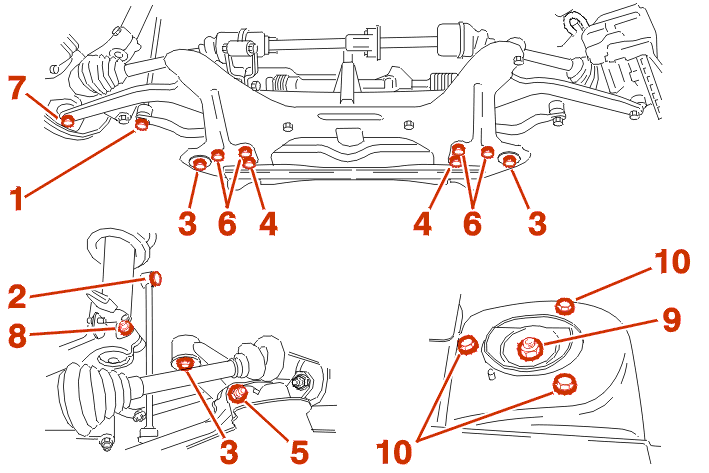

1 - 1 - TIGHTENING TORQUES
Tightening torques :
