B3CG01K1 - 406D9

REMOVAL - REFITTING PIVOT BALL JOINT

1 - SPECIAL TOOLS

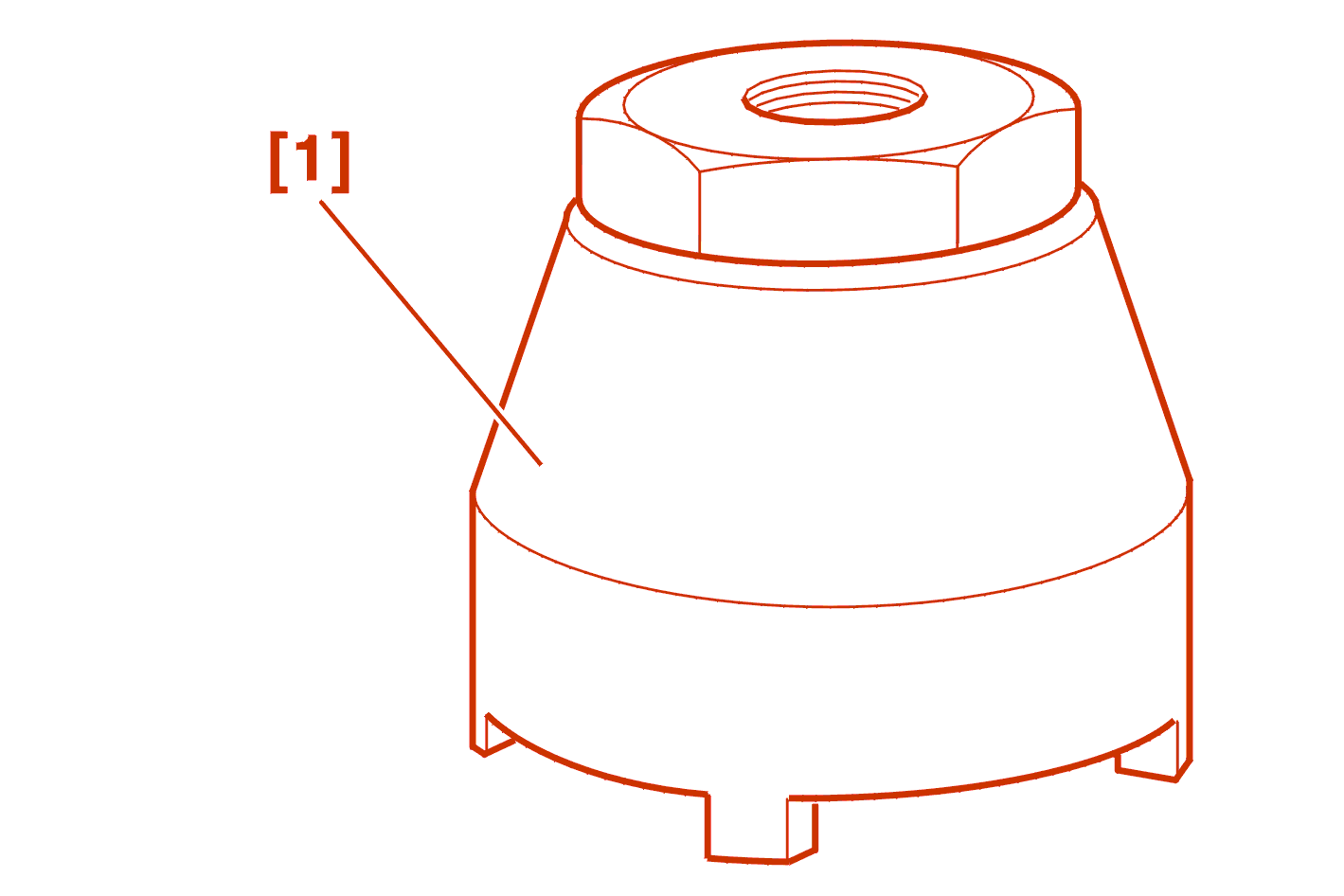

[1] wrench for pivot bottom ball joint (-).0615 J .

2 - REMOVAL

REMOVE THE PIVOT .

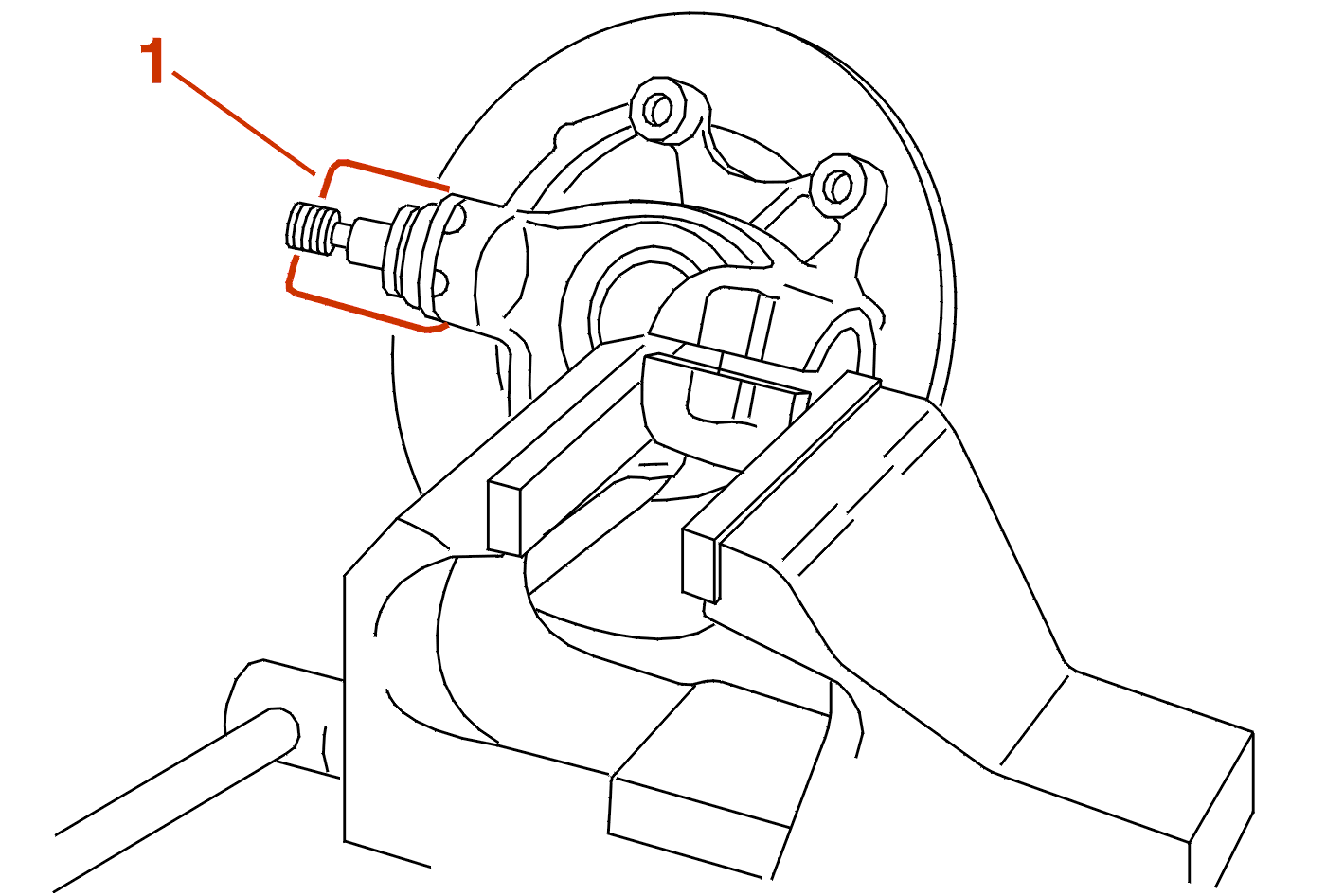

With the pivot in the vice, remove the protective plate (1) .

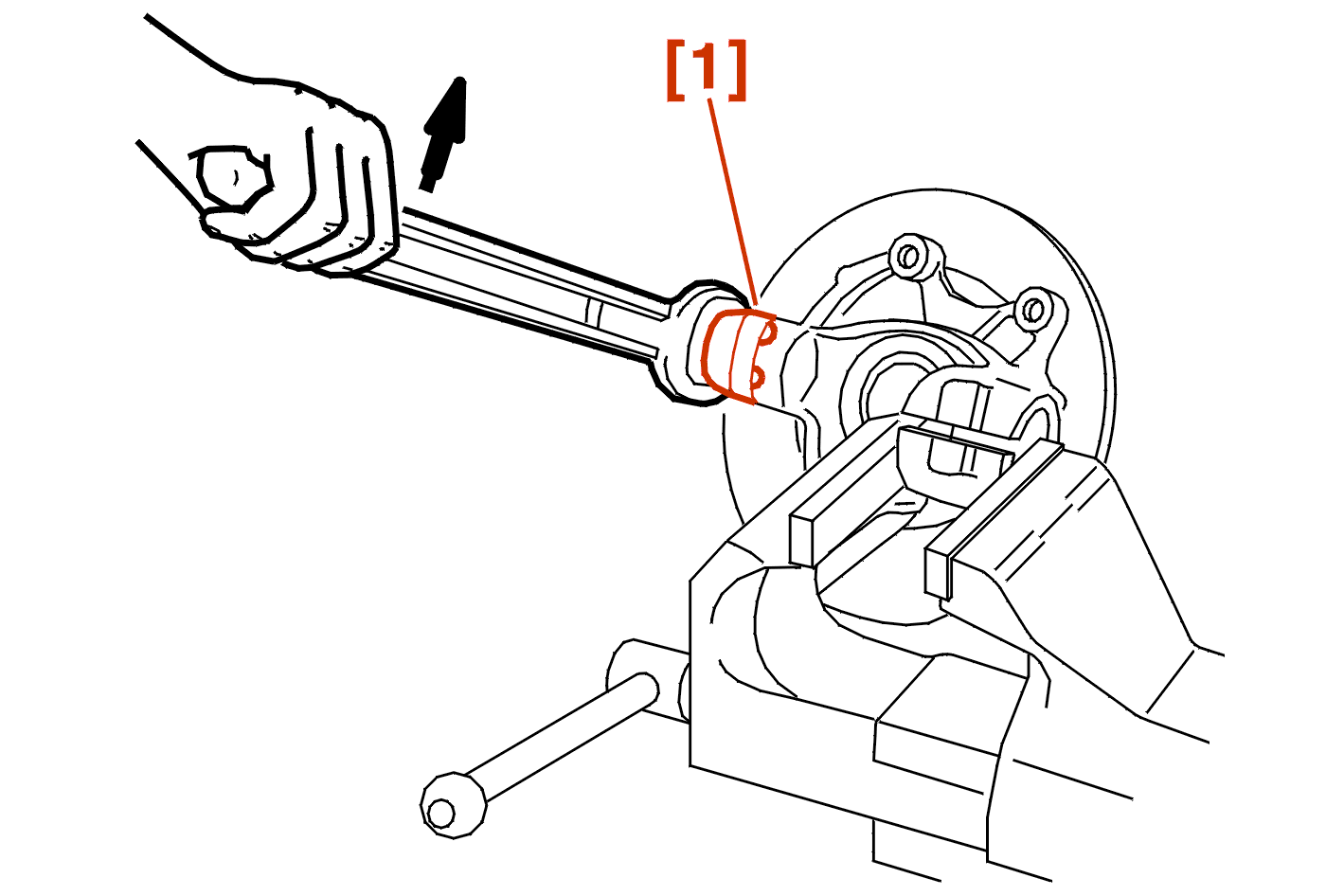

Fit the tool [1] .

Remove the ball joint .

3 - REFITTING

Finger tighten the ball joint .

Fit the tool [1] .

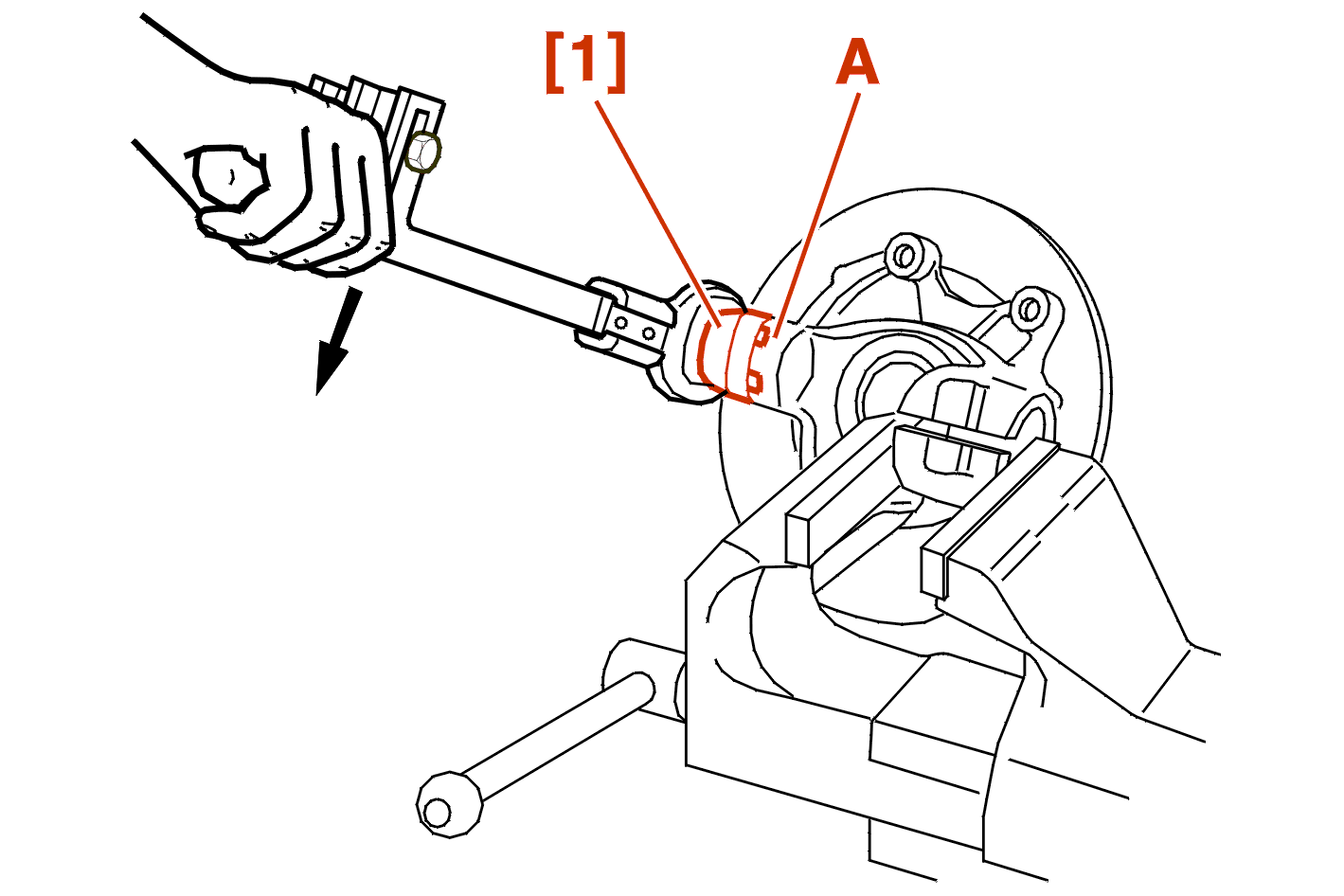

Tighten the ball joint to 25 da.Nm .

Lock the ball joint in one of the notches (A) in the pivot .

Engage the new protective plate (1) on the body of the ball joint .

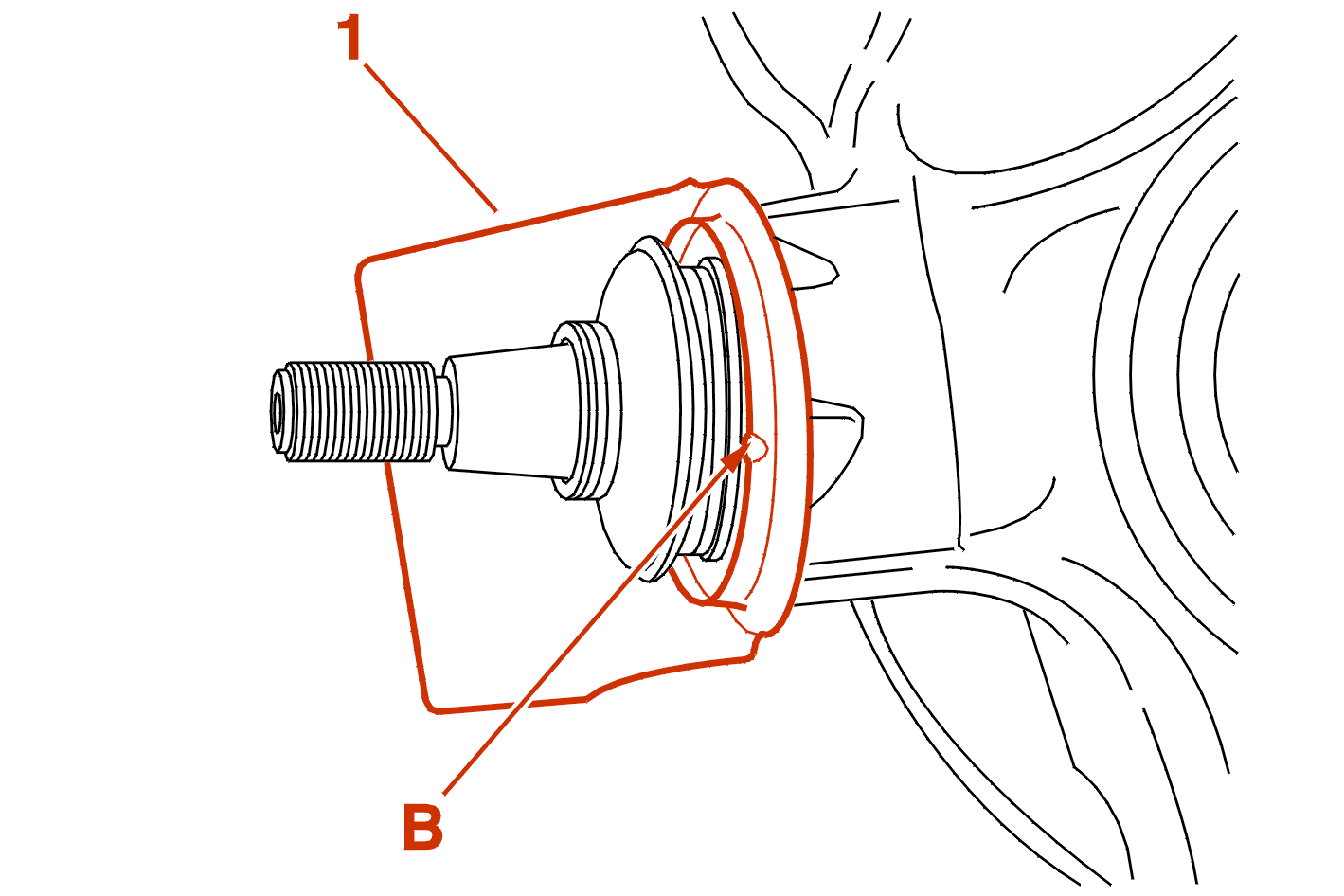

Immobilise the plate (1) by bending it at (B) into one of the notches in the ball joint .

FIT THE PIVOT .
