B3CG04K1 - 406D9

REPLACEMENT FRONT WHEEL BEARING

1 - SPECIAL TOOLS

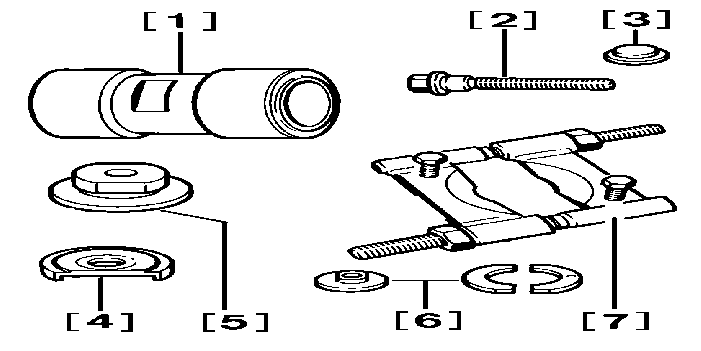

[1] nut (-).0606-F2X .

[2] bolt (-).0606-F1 .

[3] thrust button (-).0606-F4 .

[4] bearing extractor abutment plate (-).0615-EY .

[5] pressure plate (-).0615-K .

[6] set of two half shells and locking cone (-).0606-AZ .

[7] extractor/separator FACOM U 53 P type .

2 - REMOVAL

REMOVE THE PIVOT .

Remove the front hub bearing retaining circlip .

The threads of the extraction tools must be greased before each use .

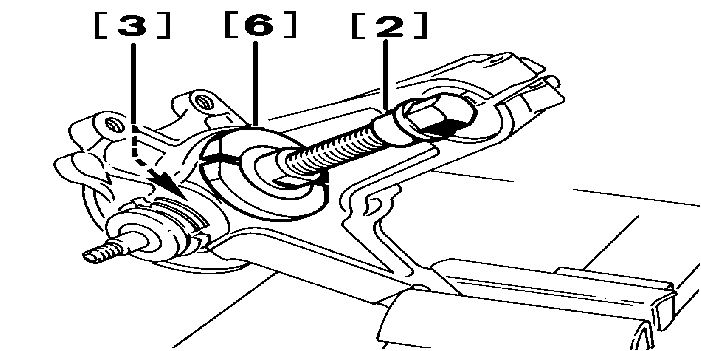

Use tools [2], [3] and [6] to extract the hub .

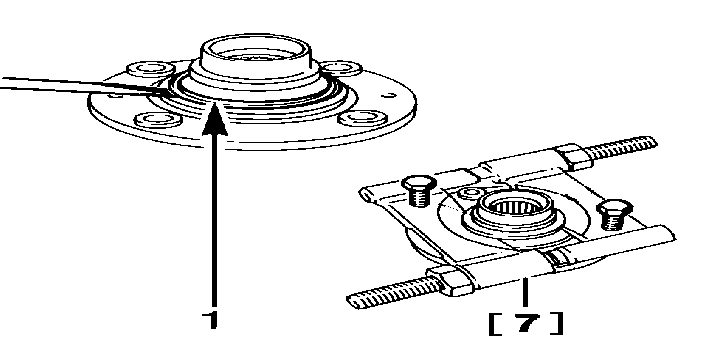

Using a screwdriver, remove the ring (1) .

Using the extractor [7] remove the bearing inner race remaining in the hub on removal .

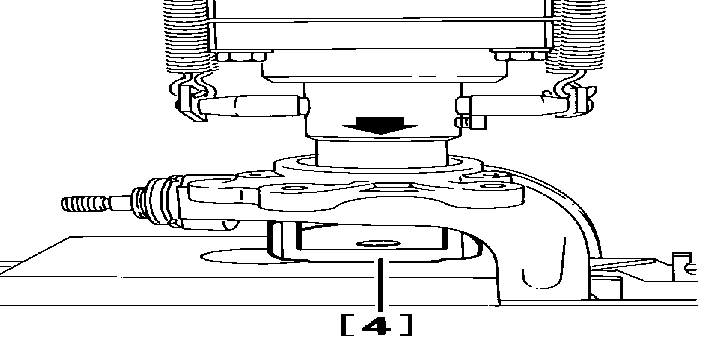

Place the retrieved race in the bearing and press out the bearing using the abutment plate [4] .

3 - REFITTING

IMPERATIVE : spray MOLYKOTE 321 R type slip compound into the pivot body housing before refitting the bearing .

WARNING : always fit a new bearing .

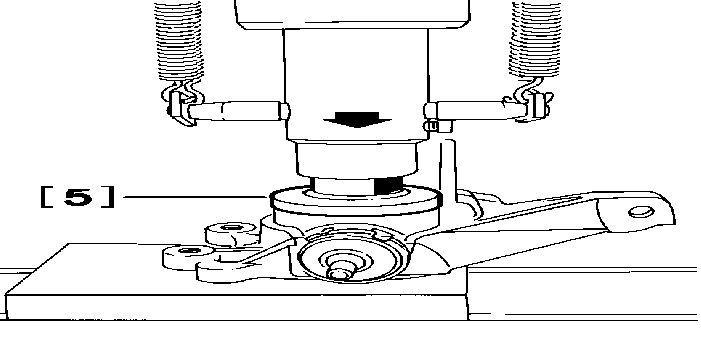

Press in the new bearing using the pressure plate [5] .

Fit the new bearing retaining circlip in its groove .

IMPERATIVE : spray MOLYKOTE 321 R type slip compound onto the hub .

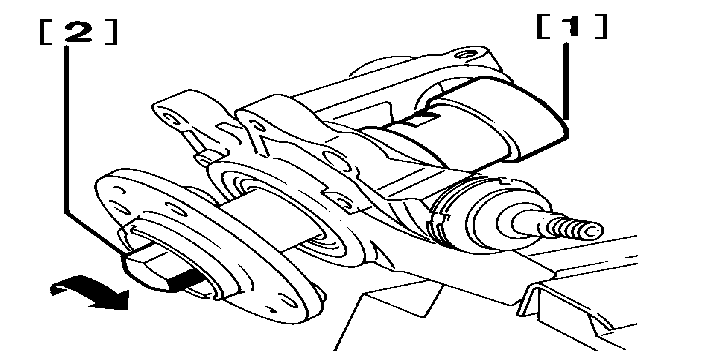

Use tools [1] and [2] to fit the hub .

Screw fully home .

FIT THE PIVOT .
