B3DB05K1 - 406D9
IDENTIFICATION, DATA, TIGHTENING TORQUE(S)

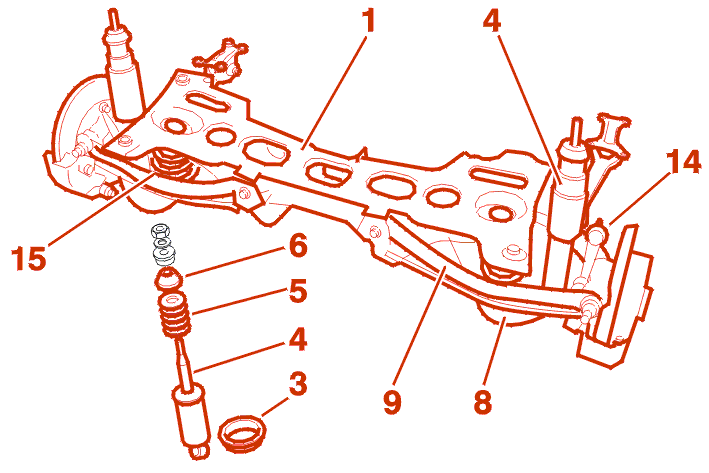

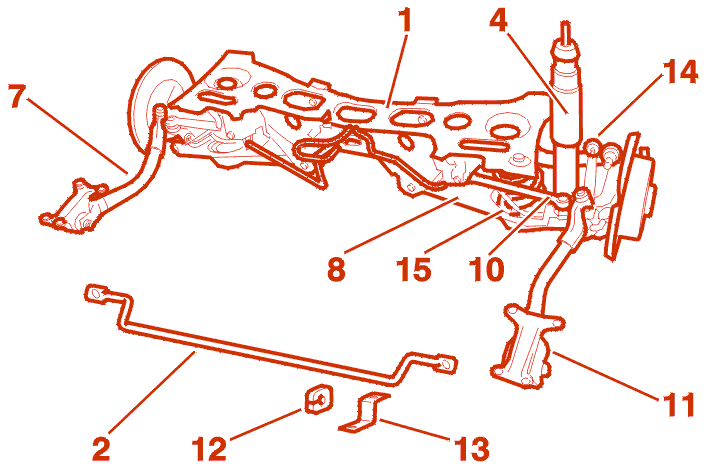

1 - IDENTIFICATION
(1) Rear suspension crossmember .
(2) Anti-roll bar .
(3) Upper spring retainer .
(4) damper .
(5) Bump stop .
(6) Flexible mounting .
(7) Horizontal arm .
(8) Lower arms .
(9) Rear upper arm .
(10) Clamp connecting rod .
(11) Horizontal arm to body bracket .
(12) Anti-roll bar bearings .
(13) Anti-roll bar mounting securing yoke .
(14) Anti-roll bar to pivot connecting rod .
(15) Suspension spring .
2 - DATA
| anti-roll bar | ||||
|---|---|---|---|---|
| model code | 8B BFZ 2 | 8B LFY 2 | 8B LFY 6 | 8B RFV 2 |
| special features | - | |||
| anti-roll bar diameter (mm) |
21 | 22 | ||
| diameter of torsion bar (mm) or spring (colour reference) | green / green | - | ||
| H3 ± 7 mm | - | |||
| length of the adjusting tool | 225 | |||
| rear suspension geometry | ||||
|---|---|---|---|---|
| model code | 8B BFZ 2 | 8B LFY 2 | 8B LFY 6 | 8B RFV 2 |
| special features | - | |||
| H2 (mm) | 150 | |||
| camber | -1° 50' ± 30' | |||
| track (mm) | 1,5 ± 0,5 | |||
| ODM (mm) | 208 | |||
| rear suspension geometry | |||
|---|---|---|---|
| model code | 8B D8B D | 8B DHX E | 8B P8C C |
| special features | - | ||
| H2 (mm) | 150 | 158 | |
| camber | -1° 50' ± 30' | ||
| (mm) | 1,5 ± 0,5 | ||
| ODM (mm) | 208 | ||
Track :
These values are for a reference height (H2) .
3 - TIGHTENING TORQUE(S)
Nut which secures the shock absorber to the body : 3.5 da.Nm .
Bolt(s) securing the shock absorber to the lower arm : 7.5 da.Nm .
Bolt(s) securing the horizontal arm to the pivot : 7.5 da.Nm .
Bolt(s) securing the horizontal arm to the bracket : 9.5 da.Nm .
Bolt(s) securing the horizontal arm bracket to the body : 10 da.Nm .
Nut securing the front upper arm to the pivot : 6.5 da.Nm .
Bolt which secures the clamp connecting rod to the rear crossmember : 4 da.Nm .
Bolt which secures the lower arm to the pivot : 9.5 da.Nm .
Bolt(s) securing the lower arm to the rear crossmember : 7.5 da.Nm .
Bolt(s) securing the rear upper arm to the pivot : 7.5 da.Nm .
Bolt(s) securing the rear upper arm to the crossmember : 9.5 da.Nm .
Nut which secures the connecting rod (14) to the anti-roll bar : 4 da.Nm .
Nut which secures the connecting rod (14) to the pivot : 4 da.Nm .
Nut and bolt securing the anti-roll bar mounting yoke to the body : 4 da.Nm .
Bolt(s) securing the rear crossmember to the body : 6.5 da.Nm .
Nut which secures the rear hub-bearing : 27.5 da.Nm .
