B3DG0EK1 - 406D9

REMOVAL - REFITTING FRONT UPPER ARM

1 - SPECIAL TOOLS

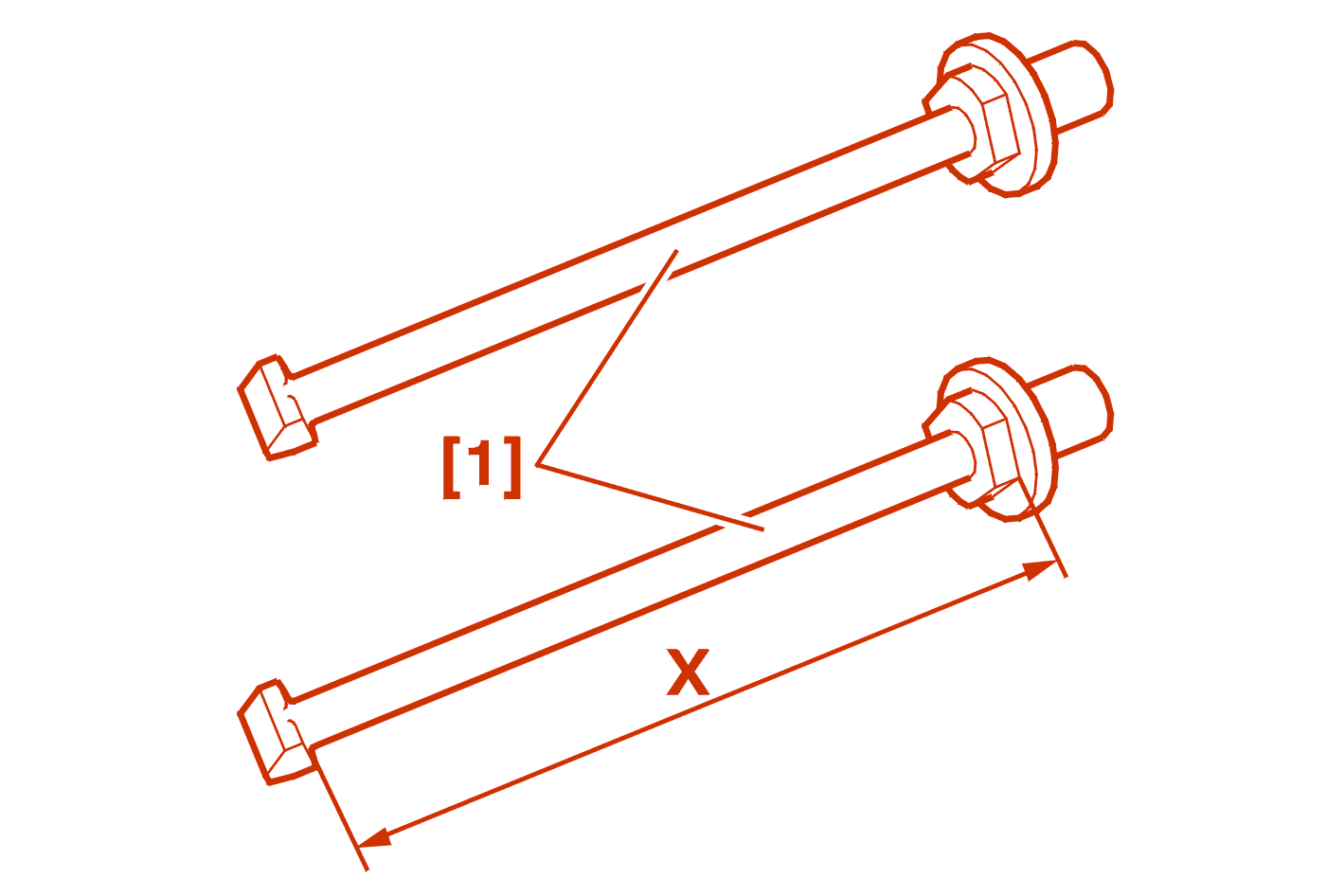

[1] Rear suspension units compression tool (-).0536-D .

2 - REMOVAL

Fit the compression tool [1] taking care to rotate the end of the rod a 1/4 turn after it is engaged in the crossmember .

Lift and support the vehicle with the rear wheels suspended .

Remove :

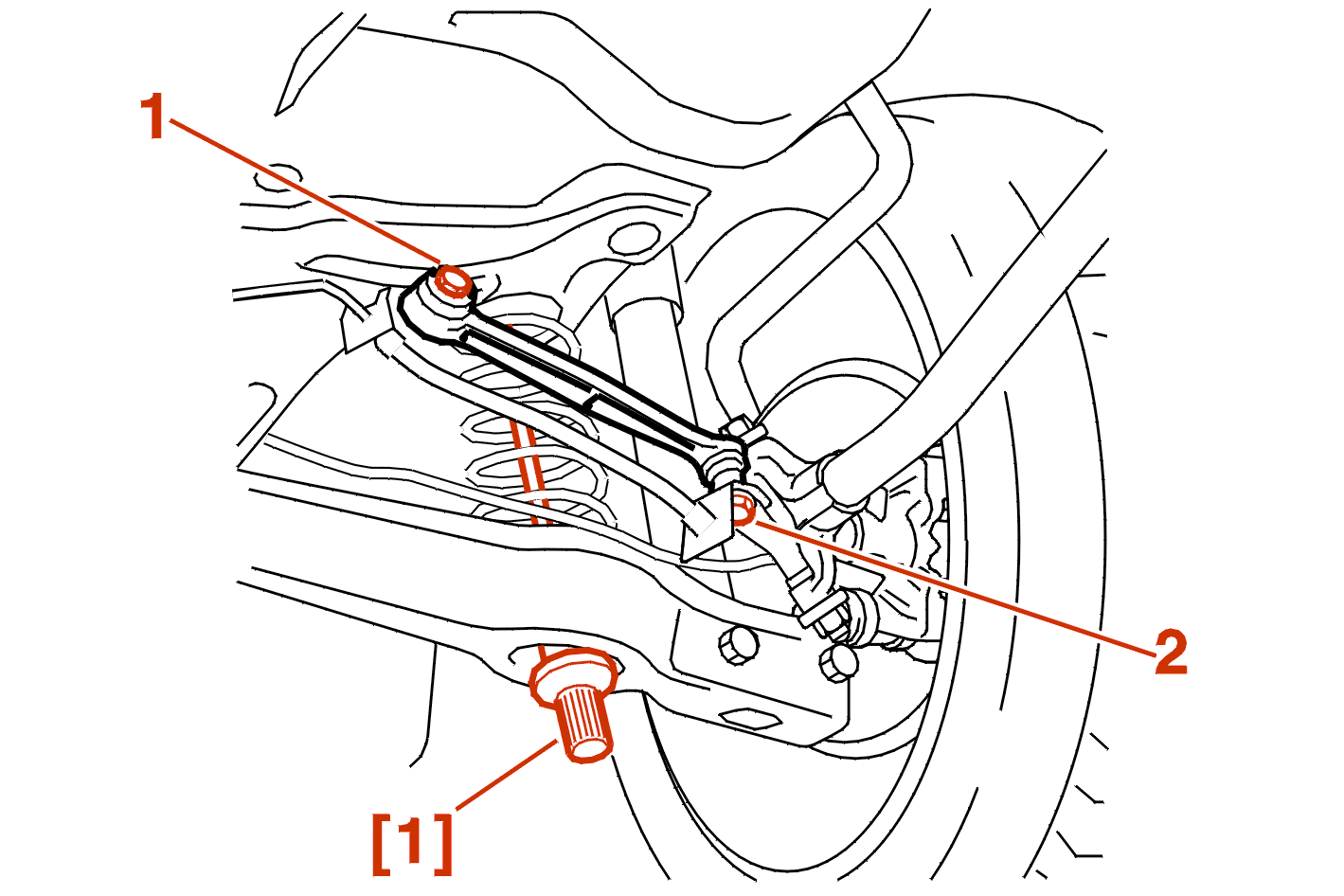

• the securing bolt (1)
• the securing nut (2)
• the front upper arm

3 - REFITTING

Proceed in the reverse order to removal .

Clean the bolt threads .

Replace the nuts .

LUBRICATE THE NUTS WITH G10 GREASE .

Before tightening the rear suspension fasteners, adjust tool [1] to dimension X = 225 mm .

Tightening torques :

• nuts (1) : 4 da.Nm
• nuts (2) : 6.5 da.Nm

Remove the tool [1] .

CHECK AND ADJUST THE SUSPENSION GEOMETRY .
