B3DH04K1 - 406D9

REPLACEMENT REAR PIVOT MOUNTING

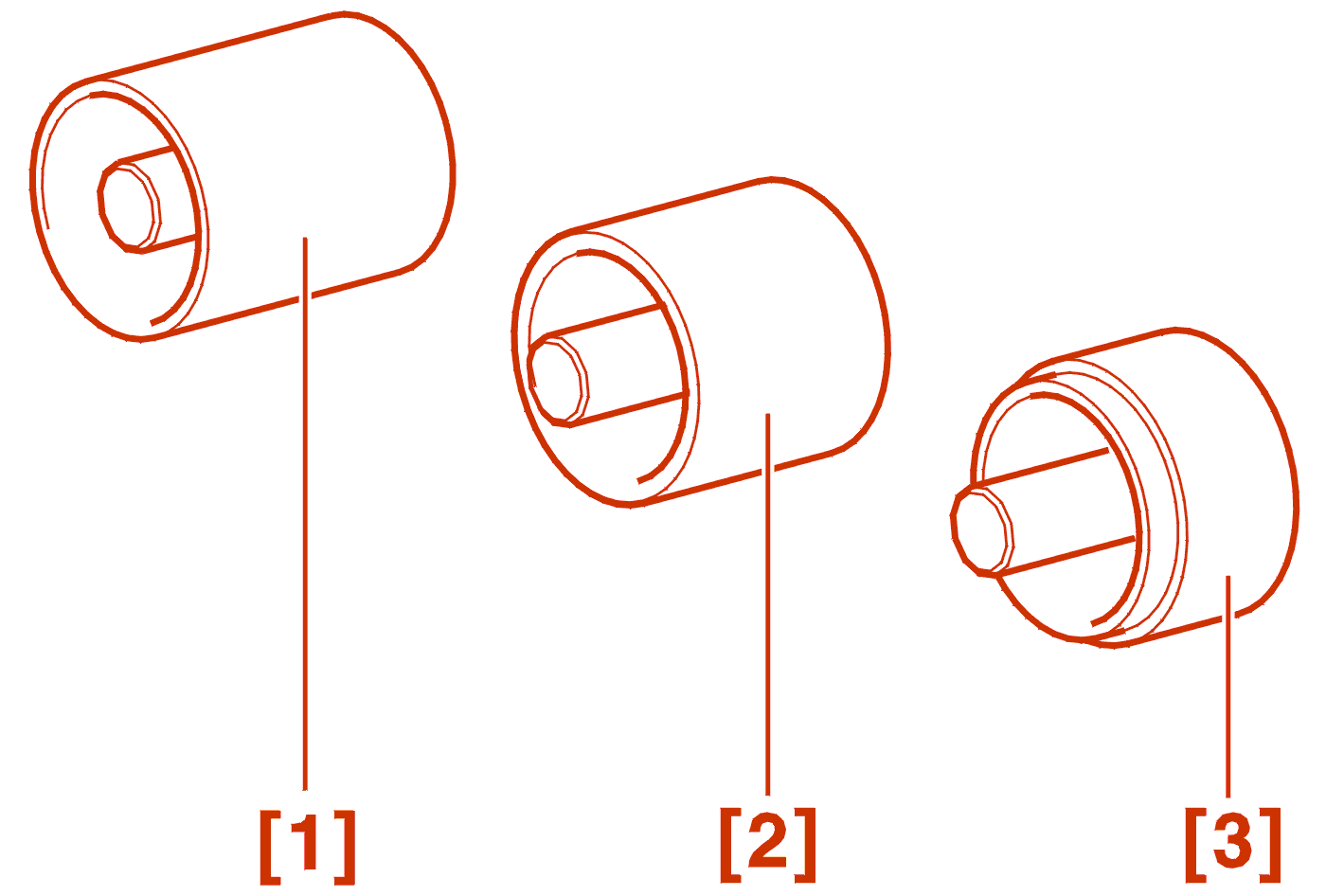

1 - SPECIAL TOOLS

[1] Fitting-extraction end piece (-).0536 P .

[2] Extraction support (-).0536 Q .

[3] Fitting support (-).0536 R .

2 - REMOVAL

REMOVE THE REAR PIVOT .

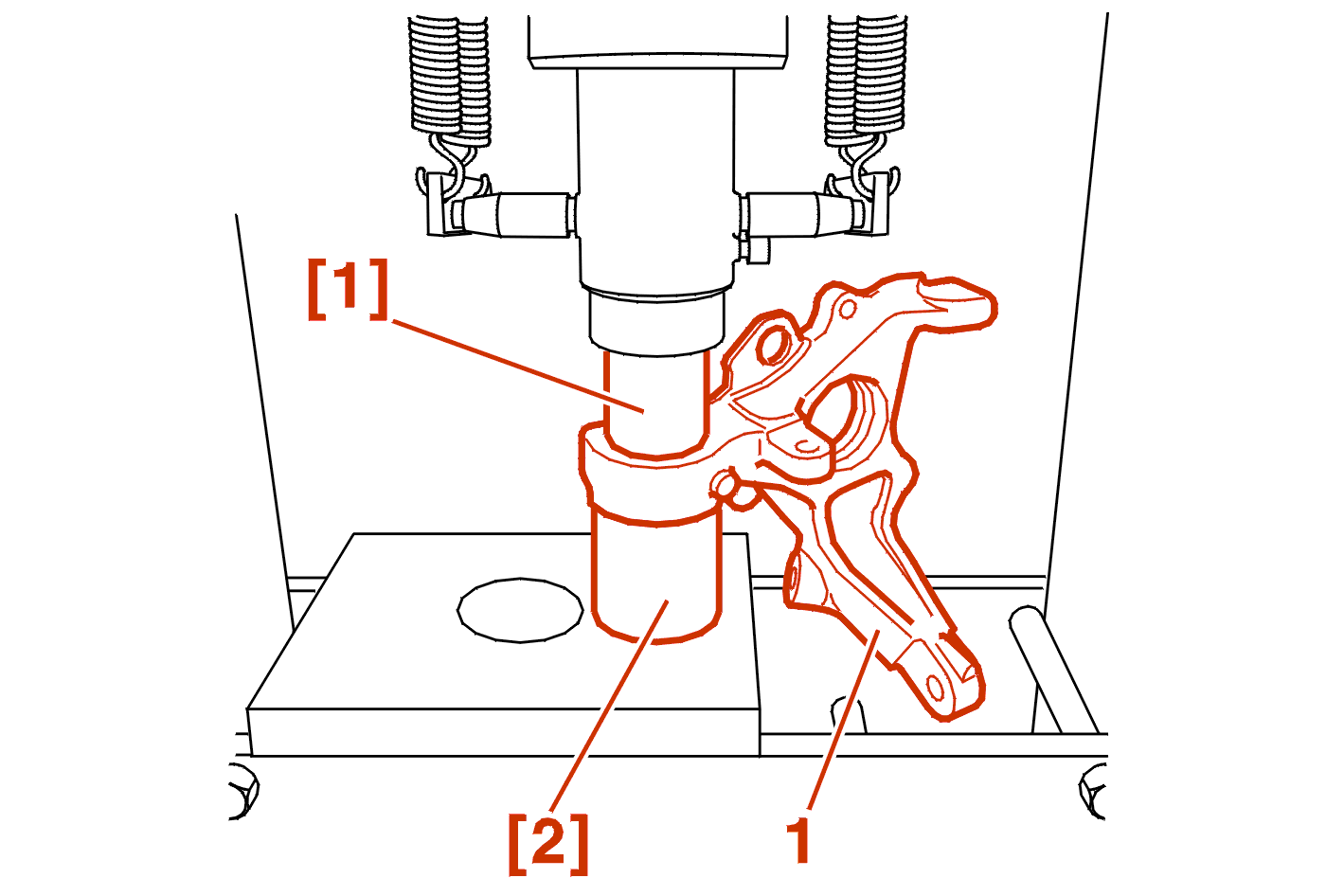

Fit :

• the ground surface of the rear pivot (1) to the extraction support [2]
• the extraction end piece [1] to the rear pivot (1)

Extract the flexible mounting using the press .

3 - REFITTING

Use a new flexible mounting .

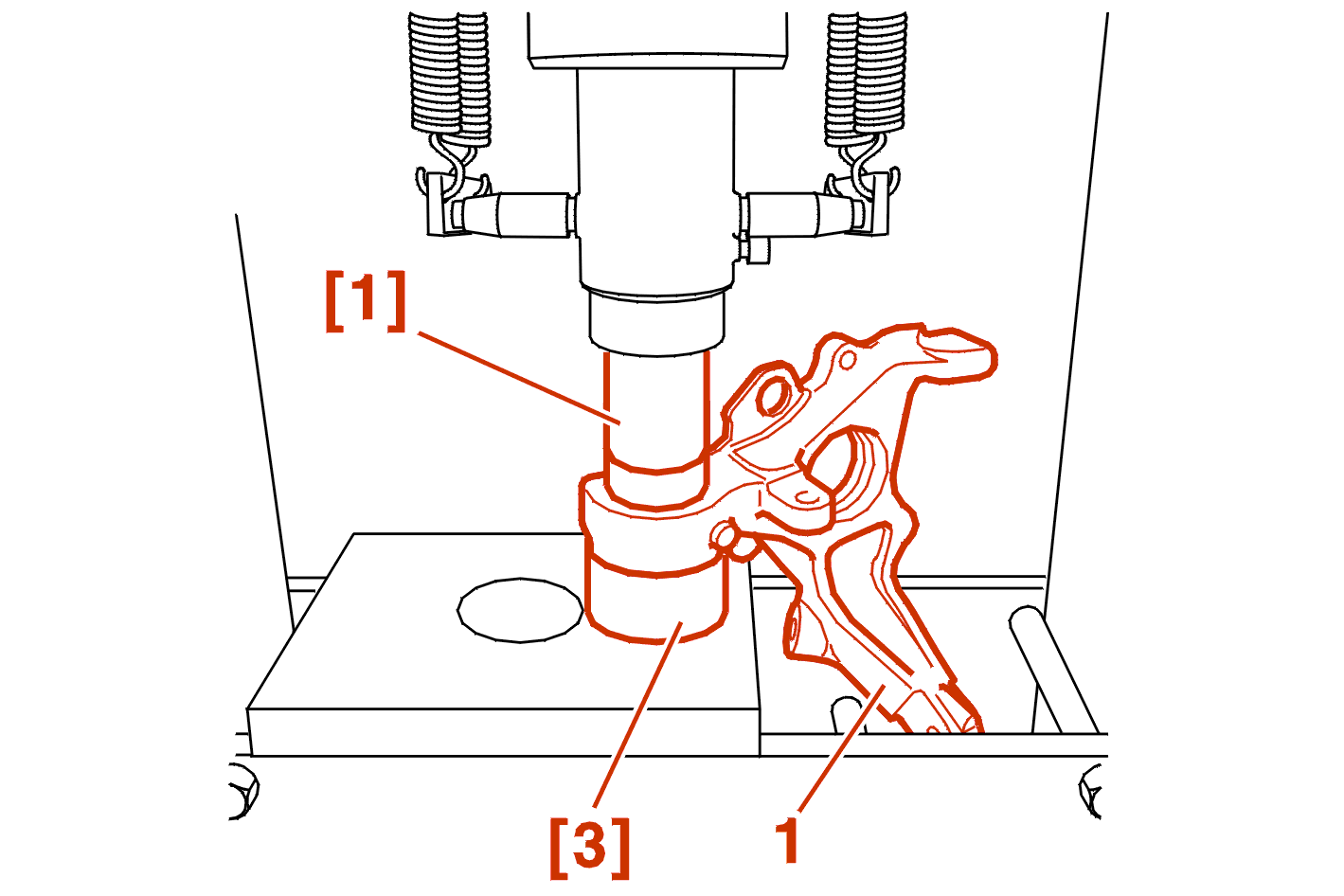

Fit :

• the ground surface of the rear pivot (1) to the fitting support [3]
• the fitting end piece [1] with the flexible mounting to the pivot (1)

Position the flexible mounting in its housing using the press .

REFIT THE REAR PIVOT .
