B3ED0KK1 - 406D9

ADJUSTMENT STEERING RACK DAMPER (PLASTIC DAMPER BOLT)

1 - SPECIAL TOOLS

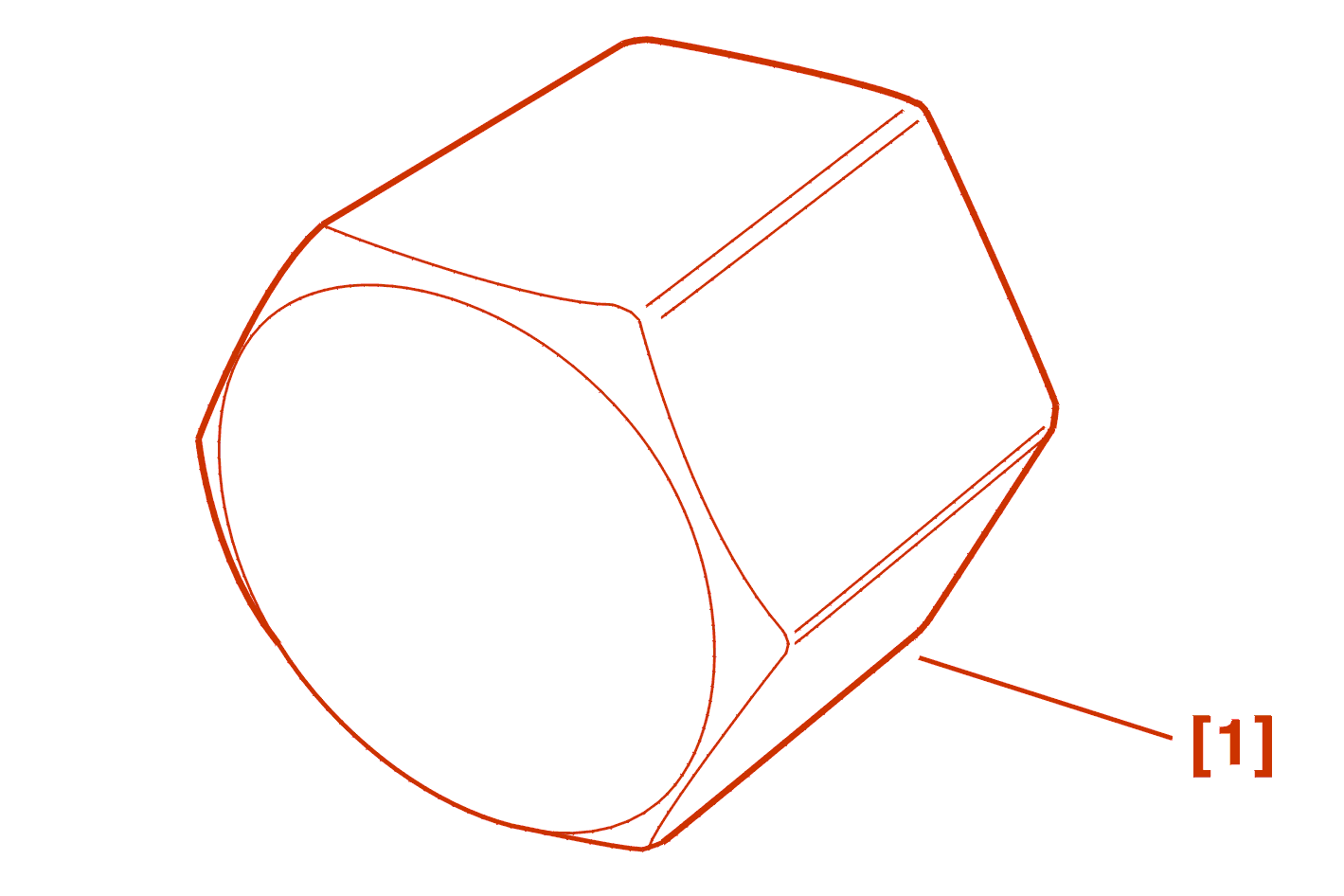

[1] : 18 mm/flat hexagonal recess (-).0720-G .

2 - ADJUSTMENT

IMPERATIVE : BEFORE MAKING THE ADJUSTMENT, REPLACE THE RACK DAMPER .

Position the front wheels straight ahead .

NOTE : if the operation is carried out on a workbench (if replacing a valve), position the rack at the mid-point .

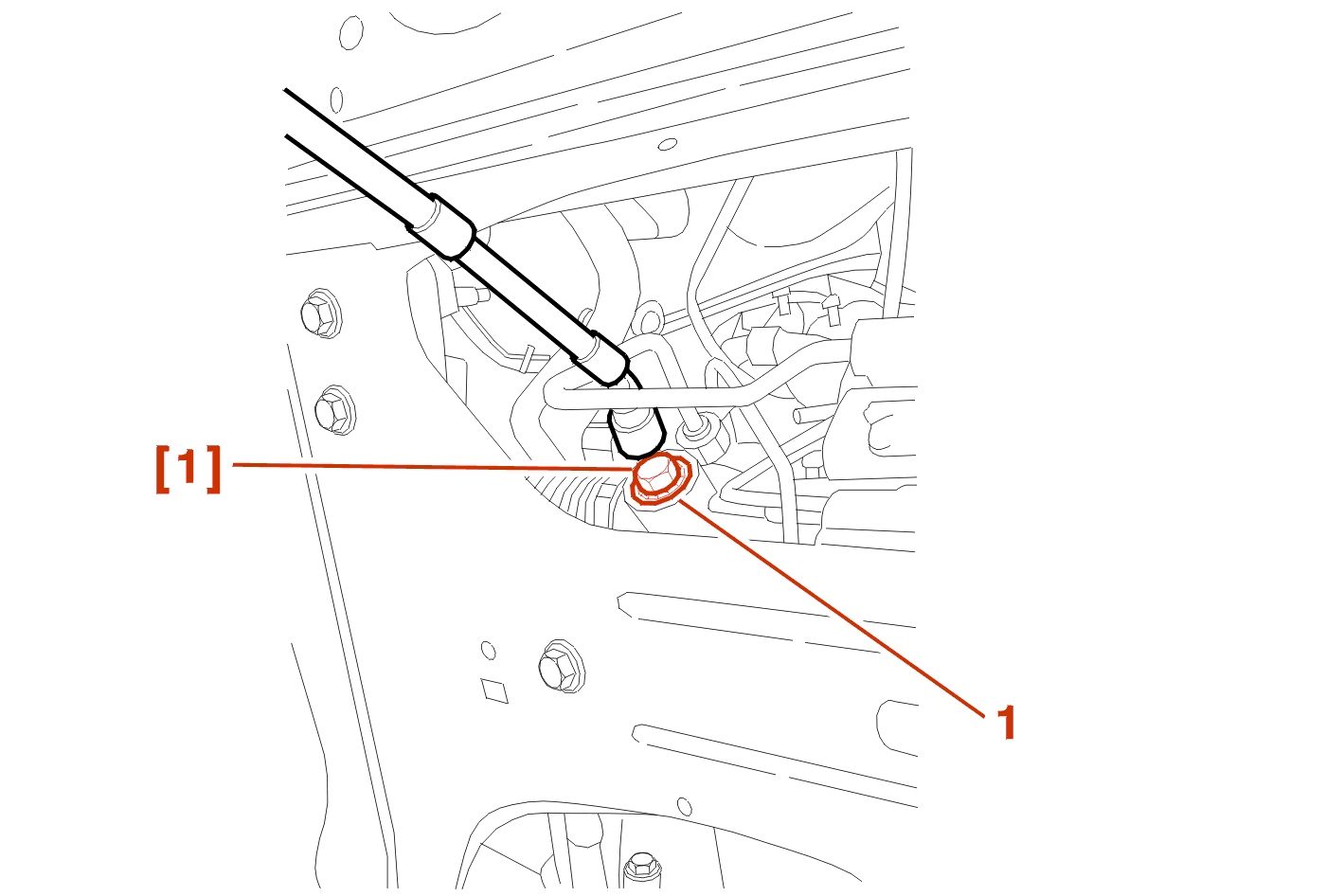

Using the tool [1] : Tighten the damper bolt (1) to 1 da.nm .

Move the rack through its travel 3 times from stop to stop .

Position the front wheels straight ahead .

Tighten the damper bolt [1] again to (1) da.nm using the tool 1 .

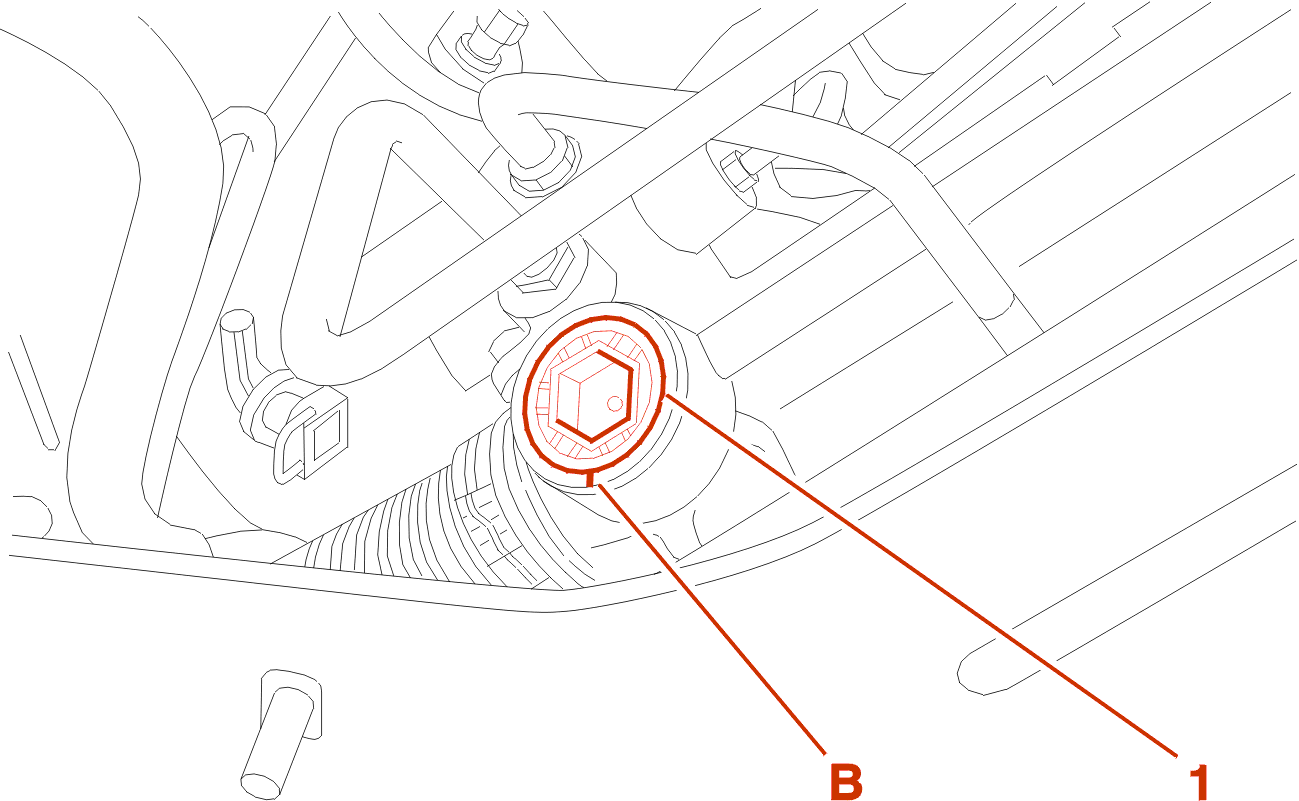

Make a mark (B) on the rack fixing coinciding with a corner of the hexagonal shape of the damper bolt (1) .

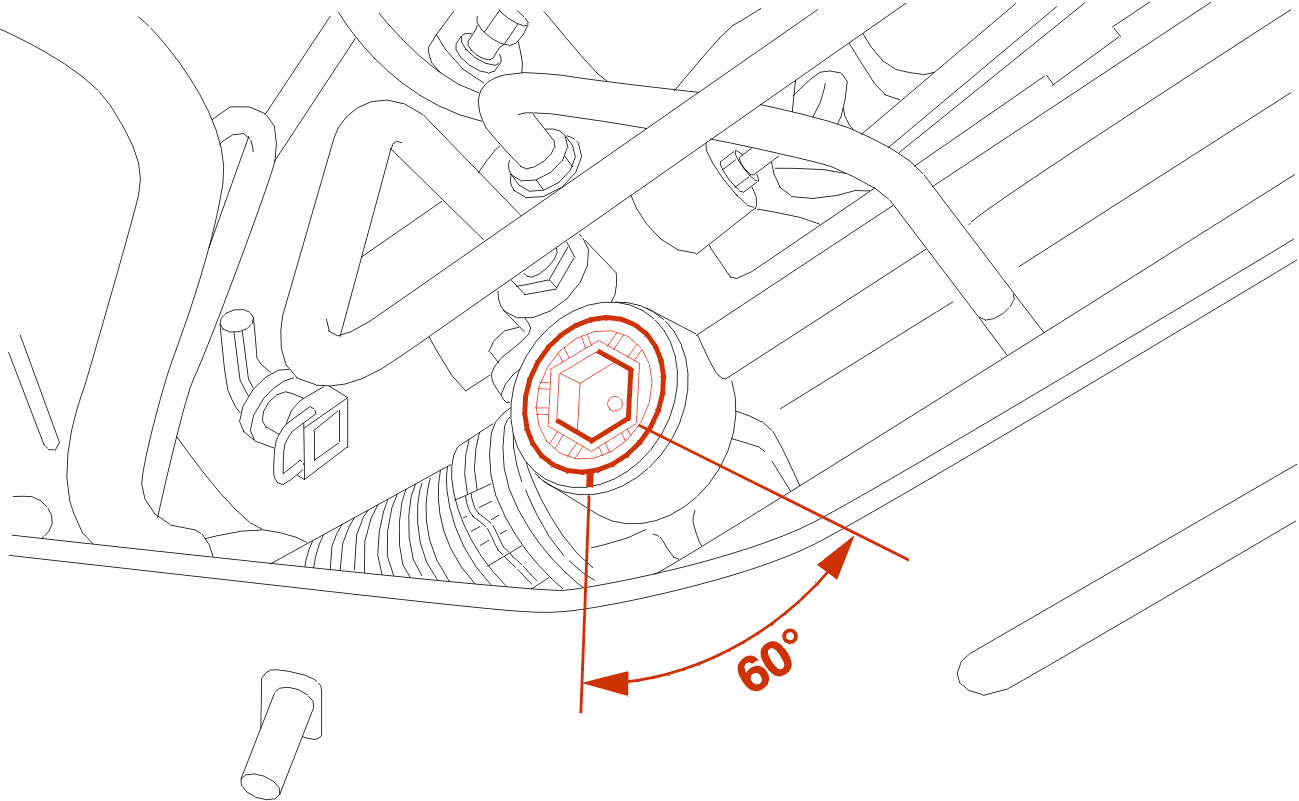

Using the tool [1] : Slacken the damper bolt by one side (60°) .

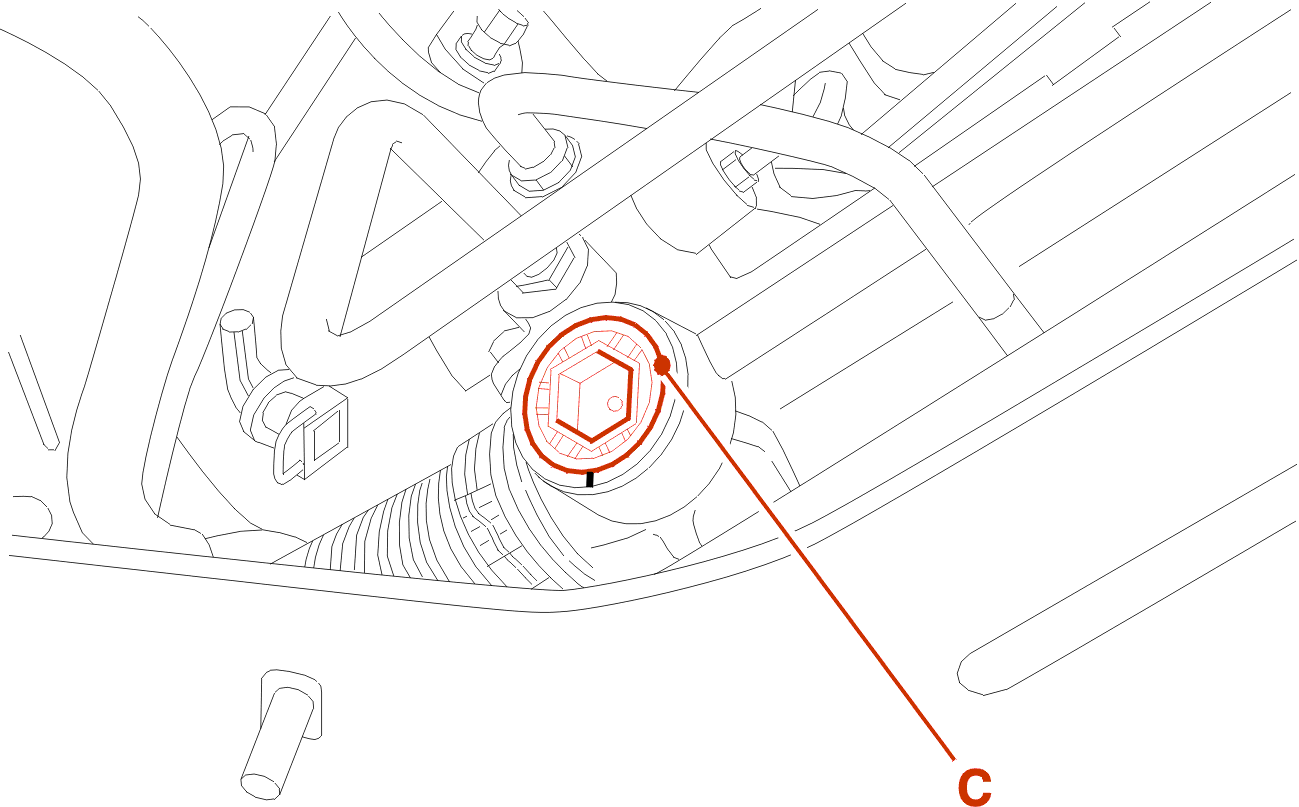

Using a pin, create a slight friction (C) between the damper bolt and the rack fixing .
