C4AG0SF1 - 406D9 COUPE

REMOVAL - REFITTING FRONT BUMPER

1 - REMOVAL

Place the vehicle on a lift .

Remove :

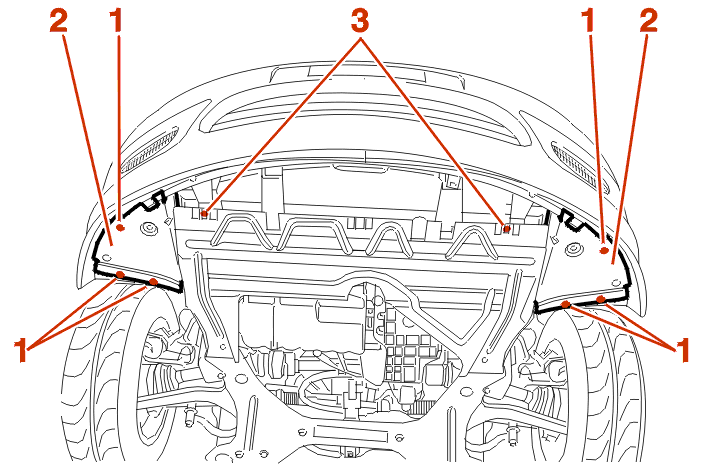

• the fasteners (1)
• the mud shields (2)
• the fasteners (3)

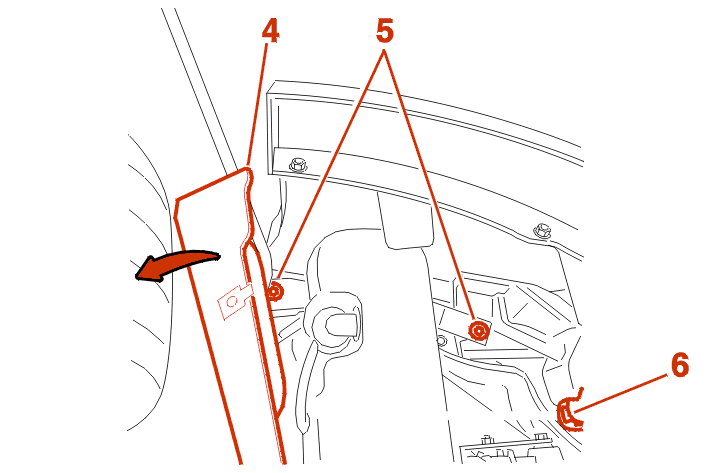

Tilt the mud shield (4) towards the rear of the vehicle .

Slacken the fasteners (5) .

Disconnect the additional headlamps (6) (according to specification) .

Lower the lift .

Remove :

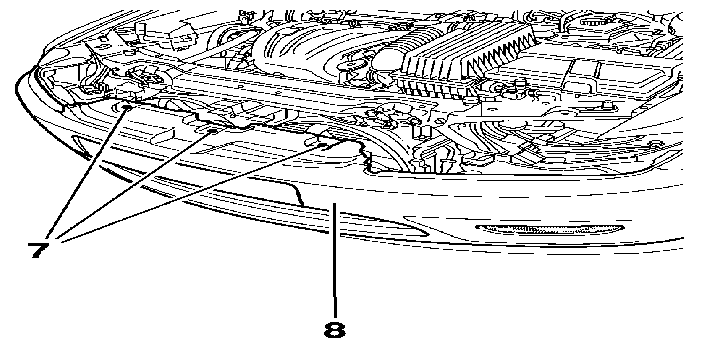

• the fasteners (7)
• the bumper skin (8)

Remove (if necessary) :

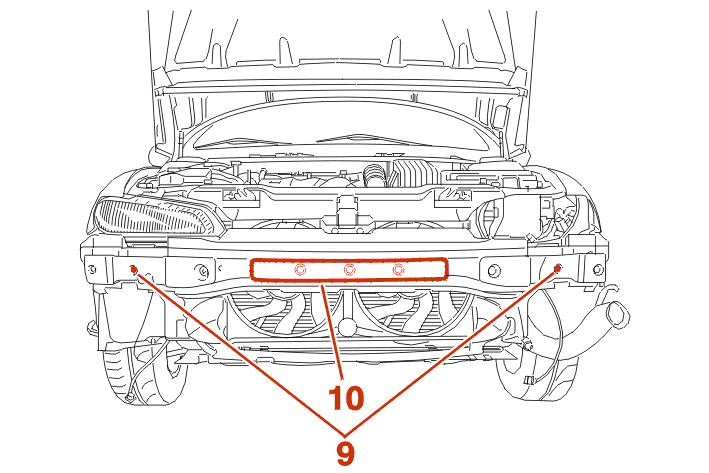

• the fasteners (9)
• the bumper frame (10)

2 - REFITTING

Proceed in the reverse order to removal .

Ensure that there is a step between the bumper and the front wing of 2,5 ± 1,5 mm .

Tighten the fasteners (9) to 2 da.Nm .

Tighten the fasteners (7), (5), (3) to 1 da.Nm .
