C4CG0VF1 - 406D9

REMOVAL - REFITTING DOOR TRIM PAD

1 - SPECIAL TOOLS

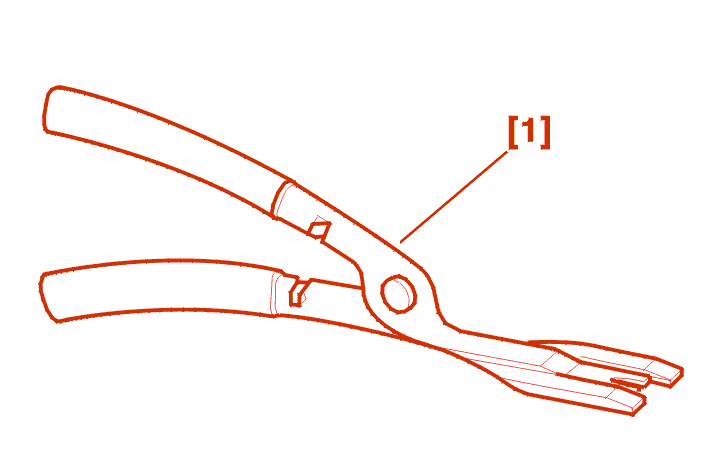

[1] Trim pliers (-).1311 .

2 - REMOVAL

Lower the window fully .

Remove the mirror cheater finisher .

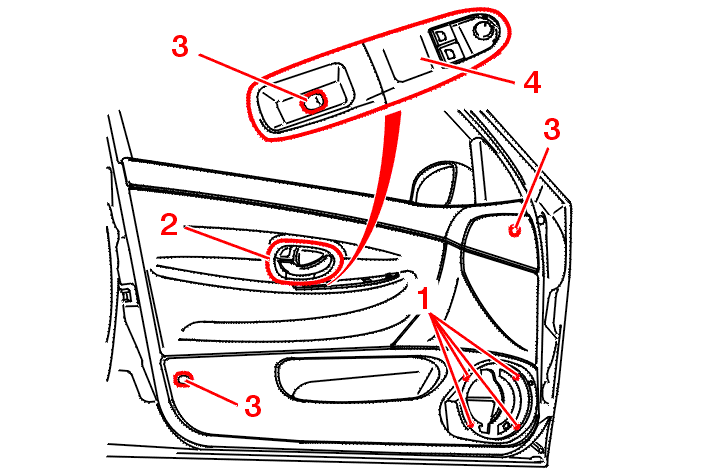

Remove :

• the fasteners (1)

According to specification : Disconnect the speaker .

Remove :

• the interior handle finisher (2)
• the blanks + the fasteners (3)

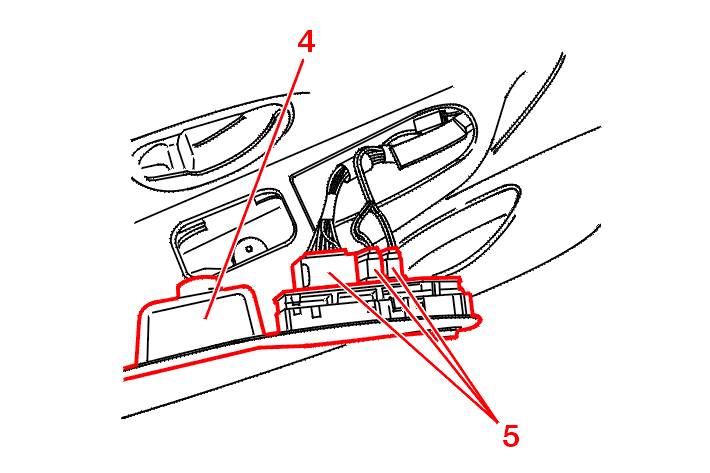

Release the switch board (4) .

Unclip the electrical connection (5) .

Remove the board (4) .

Unclip the door trim pad using tool [1] .

Remove the door trim pad .

3 - REFITTING

Proceed in the reverse order to removal .

Check : The electrical operation .
