C5CB01F1 - 406D9

IDENTIFICATION TOOLS FOR GLASS

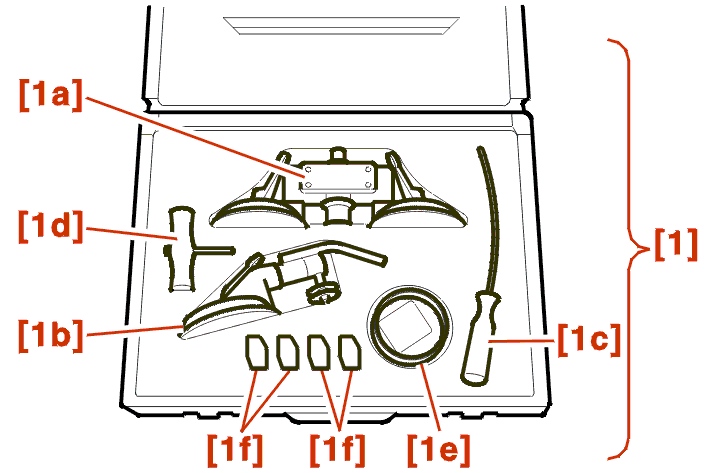

[1] : Set of glass components (-).1354 :

• [1a] : 1 inertia device with roller
• [1b] : 1 roller guide with counter pressure (half suction hole)
• [1c] : 1 awl
• [1d] : 1 handle
• [1e] : 1 square section cutting wire
• [1f] : 4 panoramic roof locating shims

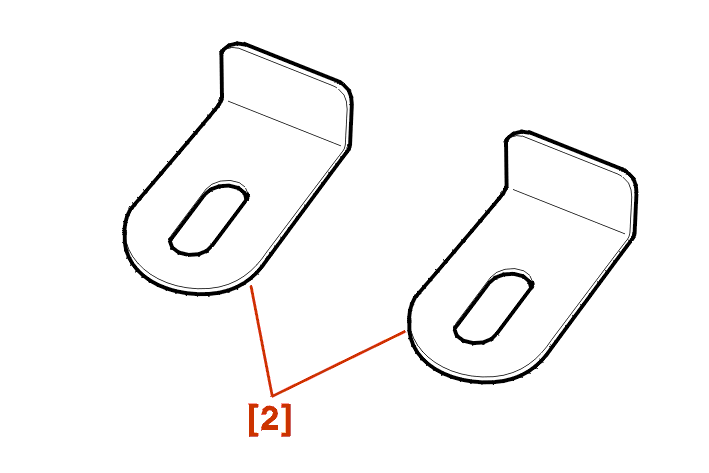

[2] Set of windscreen support shims (-).1347-B .

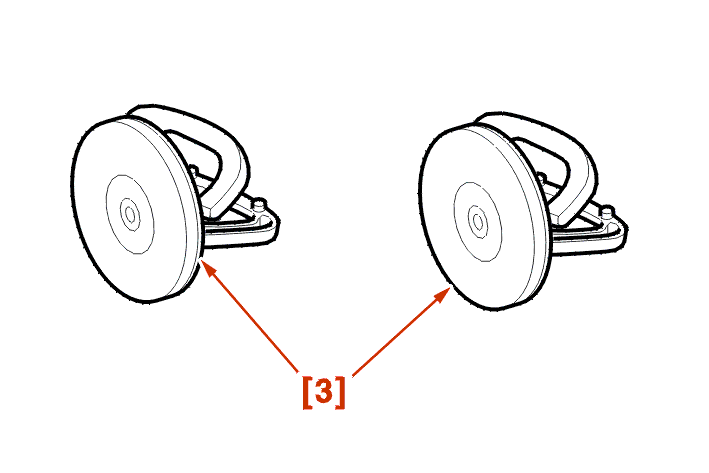

[3] 1 Set of suction caps .

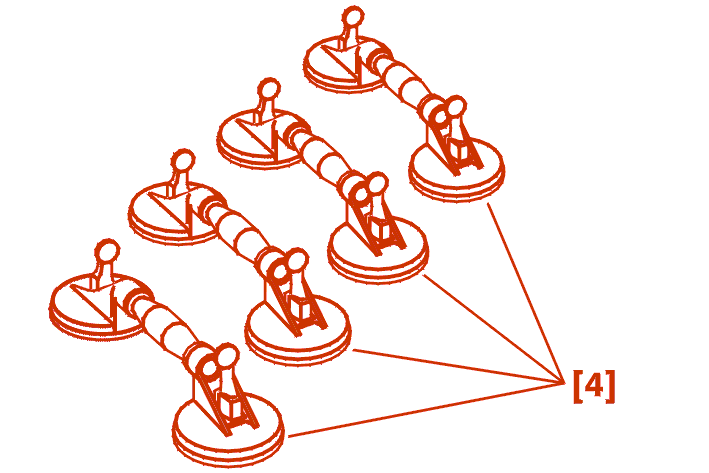

[4] Jointed suction caps 9776.Y0 .

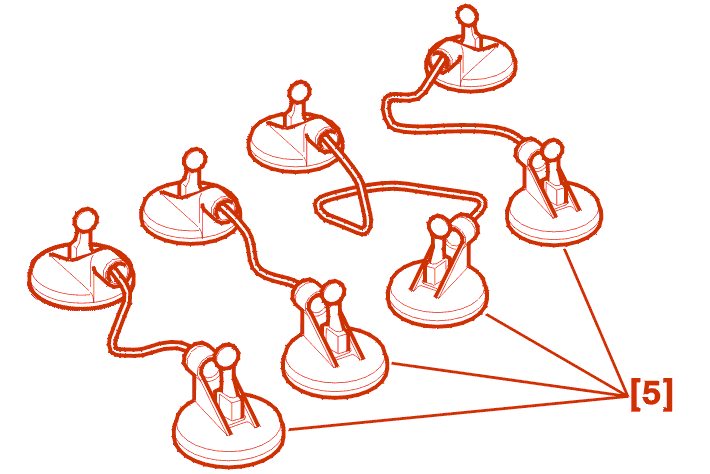

[5] Suction caps with wires 9776.Y1 .

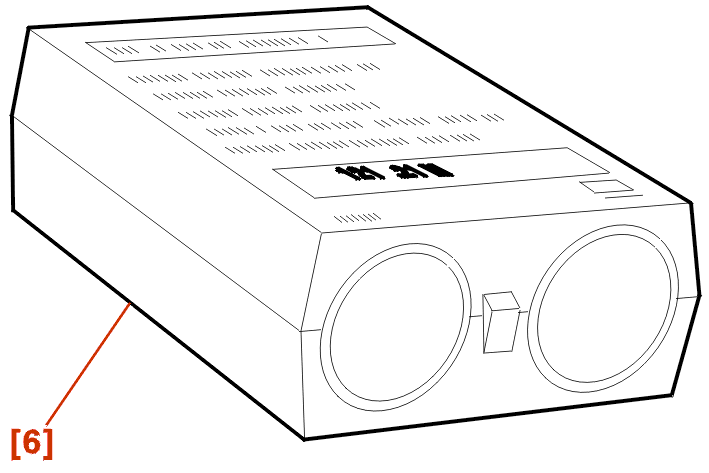

[6] Cartridge heater 9799.E2 .

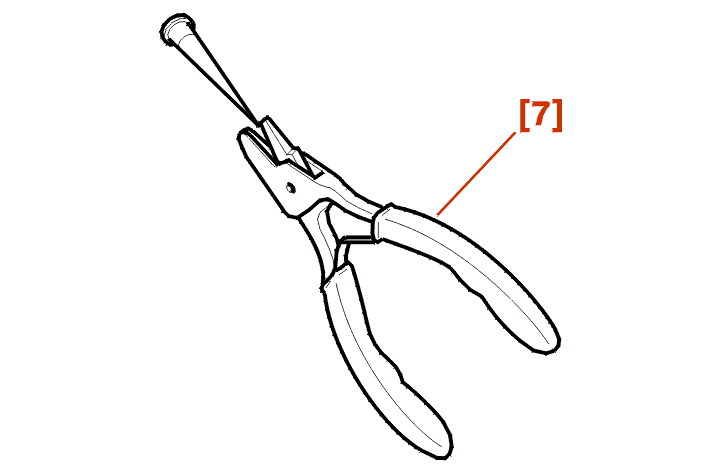

[7] Special pliers for cutting out nozzle(s) 9799.F9 .

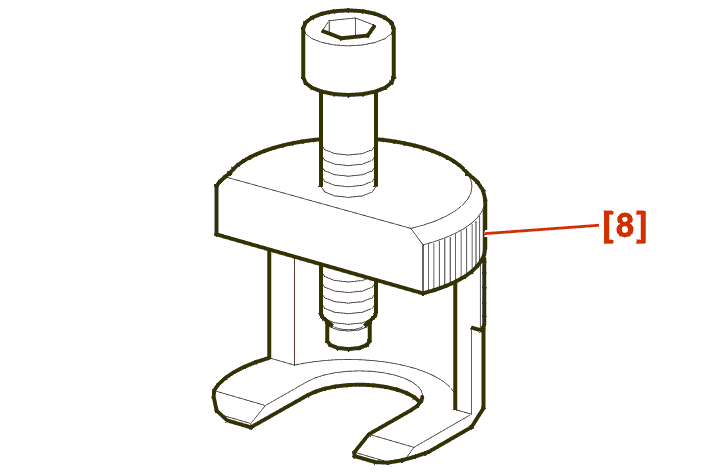

[8] Wiper arm extractor (-).1335 .

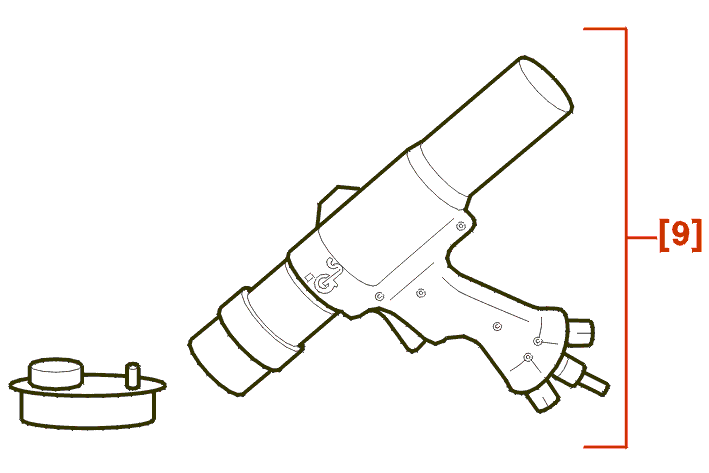

[9] Monocomponent pneumatic gun 9799.E6 .

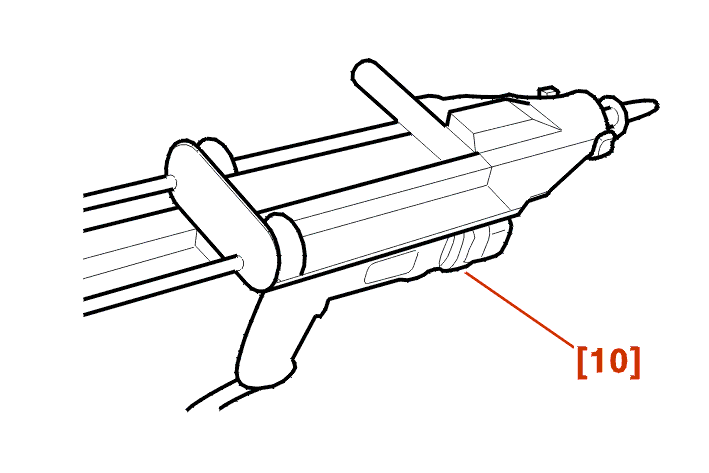

[10] Twin-component electric gun 9799.F4 .

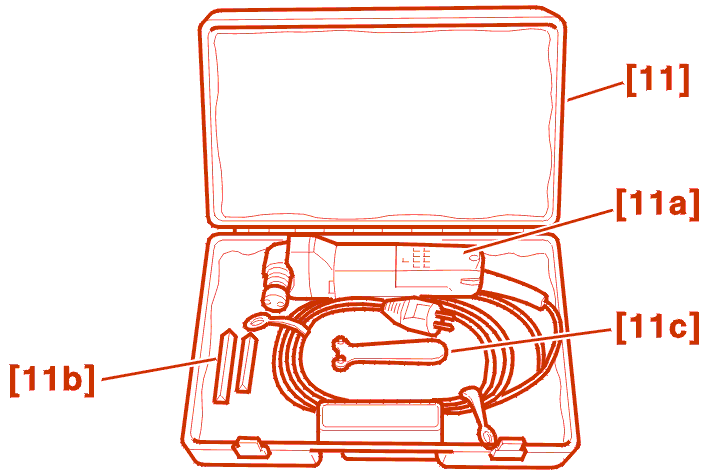

FEIN electric knife assembly (Part No. 9779.63) .

Contents of kit :

• [11a] electric knife only
• [11b] stone to be sharpened
• [11c] pin wrench

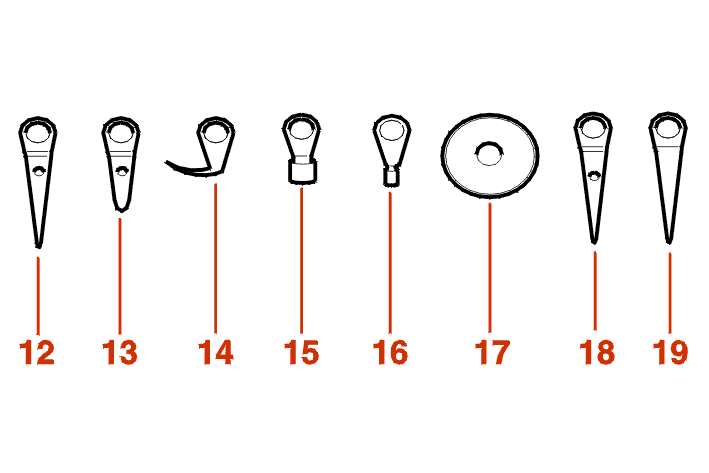

[12] Blade no. 194 (Part No. 9776.G8) .

[13] Blade no. 143 (Part No. 9769.23) .

[14] Blades :

• [a] blade no. 076 (24mm) (Part No. 9769.26)
• [b] blade no. 079 (36mm) (Part No. 9769.HA)
• [c] blade no. 154 (45mm) (Part No. 9769.29)

[15] Blade no. 146 (Part No. 9769.30) .

[16] Blade no. 144 (Part No. 9769.25) .

[17] Blade no. 103 (Part No. 9769.24) .

[18] Blade no. 160 (Part No. 9769.80) .

[19] Blade no. 125 (Part No. 9769.GR) .
