C5DG0HK1 - 406D9

REMOVAL - REFITTING RELEASE MECHANISM

1 - REMOVAL

Open the boot lid .

Release the rear seat backrest and tilt it .

Remove :

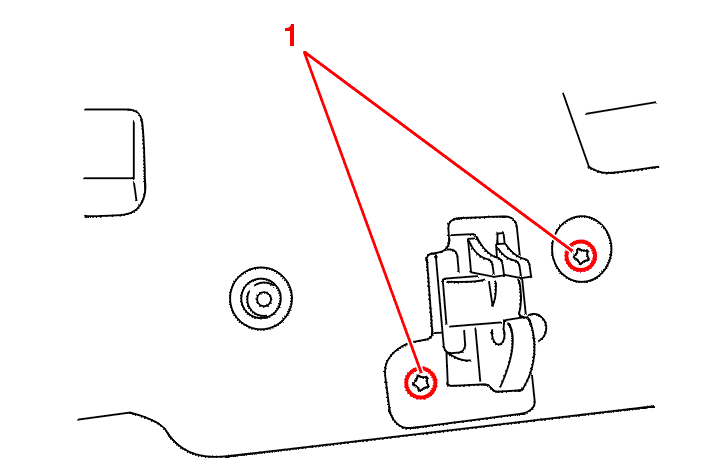

• the fasteners (1)

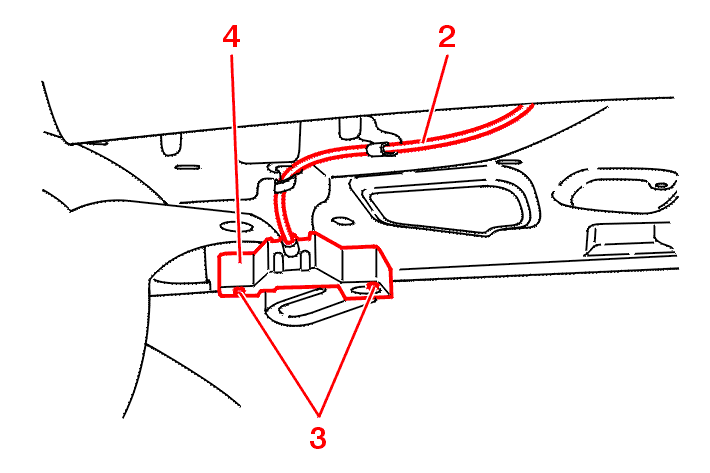

Unclip the cable (2) .

Remove :

• the fasteners (3)
• the control lever (4)

2 - REFITTING

Proceed in the reverse order to removal .

Check the operation .
