REMOVAL - REFITTING BRIGHTNESS SENSOR AND RAIN SENSOR ASSEMBLY

1 - REMOVAL

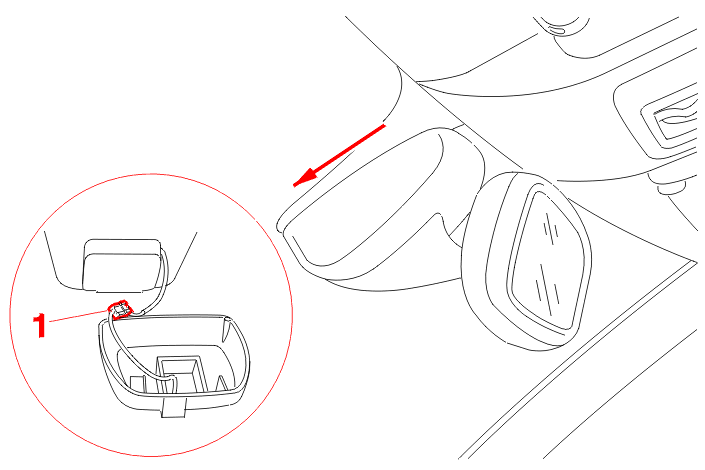

Slide the interior mirror downwards (At A) .

Disconnect the connector (1) .

Remove the interior mirror .

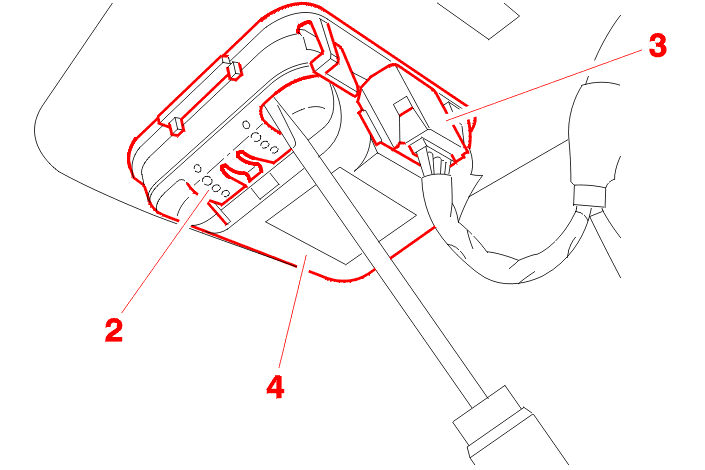

Using a screwdriver, unclip and tilt the left and right retaining clips (2) .

Disconnect the connector (3) .

Remove the brightness sensor and rain sensor assembly (4) .

WARNING : take all necessary precautions to keep the sensor assembly surface clean and free of scratches (place it in an envelope, for example) .

2 - REFITTING

IMPERATIVE : clean the windscreen sensor area (using a cleaning diluting agent, for example) before refitting the sensor assembly .

Proceed in the reverse order to removal .
