C5EG00F1 - 406D9

REMOVAL - REFITTING LONG-RANGE HEADLAMPS

1 - REMOVAL

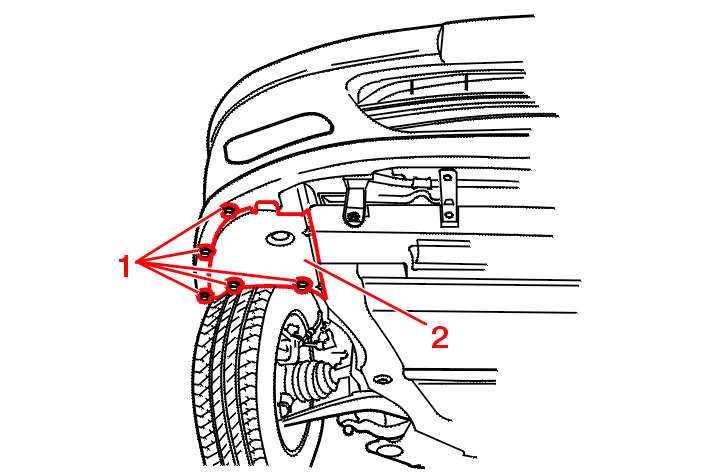

Remove :

• the fasteners (1)
• the mud shield (2)

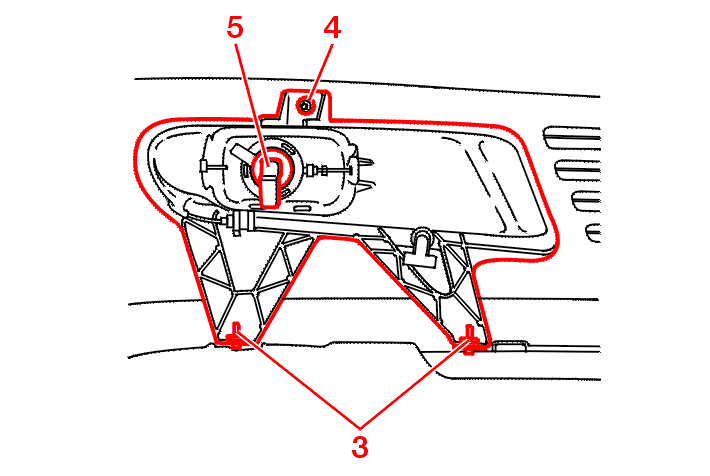

Remove :

• the fasteners (3)
• the fastener (4) (Torx-headed driver : No. 30)
• the electrical connection (5)
• the long-range lamp

2 - REFITTING

Proceed in the reverse order to removal .

Check :

• the electrical operation
• the adjustment of the lamps
