C5EG0BF1 - 406D9

REMOVAL - REFITTING HEADLAMPS

1 - REMOVAL

Remove :

• the grille

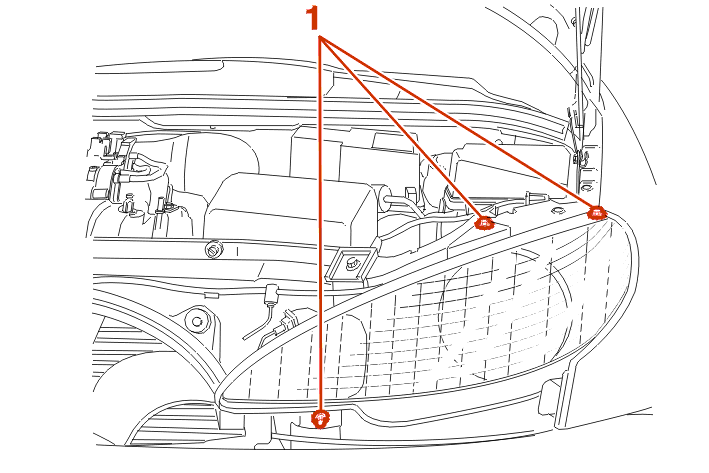

• the fasteners (1)
• the electrical connections
• the headlamp

2 - REFITTING

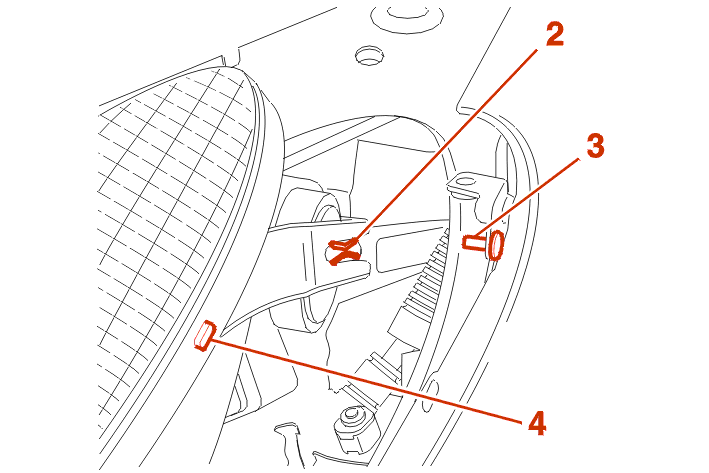

Position the headlight aligning plate (2) on the shaft (3) .

Make the electrical connections .

Engage the headlight until the guide (4) penetrates the flanged edge of the wing .

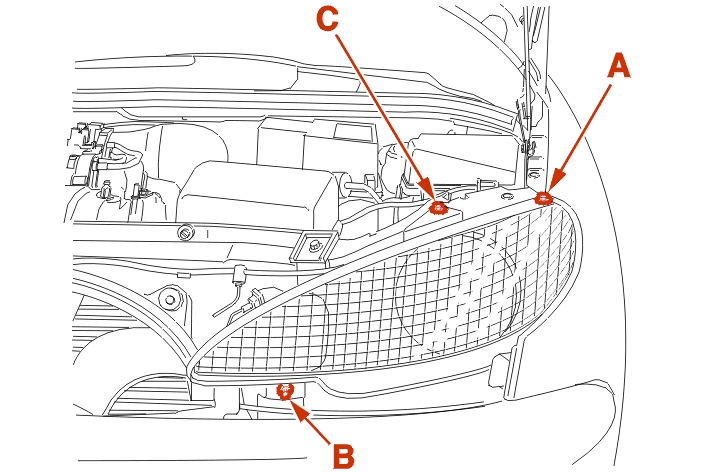

Tighten the bolts in the following order : A, B, C .

Fit the grille .

Check :

• the electrical operation
• the adjustment of the lamps
