C5EH04K1 - 406D9

REPLACEMENT TAIL LAMP FINISHER

1 - REMOVAL

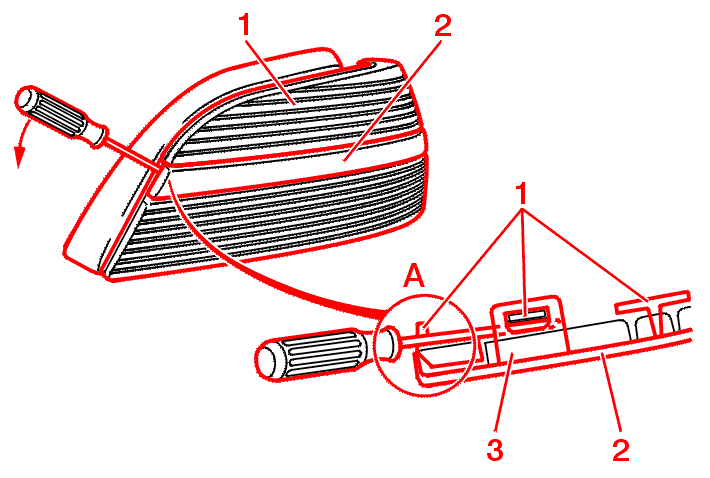

Remove : The tail lamp (1) .

Insert a fine-blade screwdriver between the lamp (1) and the lamp finisher (2) .

Position the scrrewdriver under the lamp trim clip (3) .

Press on area (A) of the lamp .

Turn the screwdriver without forcing it to unclip the lamp finisher .

2 - REFITTING

Position the finisher on the rear lamp and clip it .

Fit : The tail lamp .

Check : The electrical operation .
