C5FG1PK1 - 406D9

REMOVAL - REFITTING HEATER PANEL

1 - REMOVAL

Multifunction screen .

Radio .

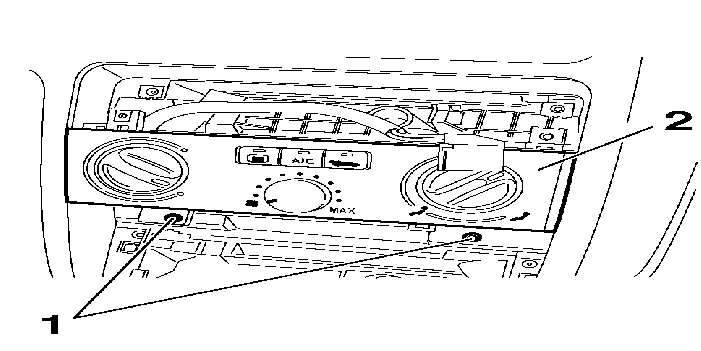

Remove the fasteners (1) .

Release the heater panel (2) from its housing .

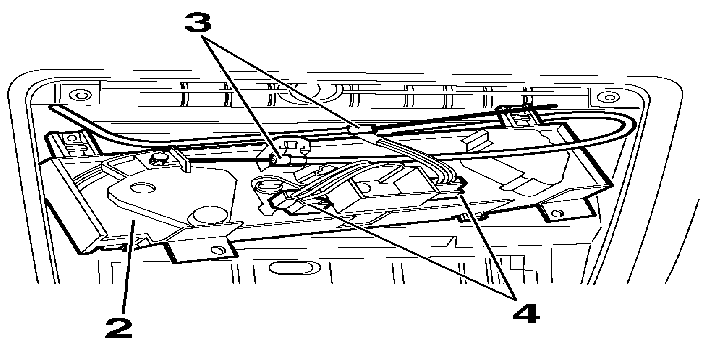

Unclip :

• if necessary : the heater knobs control (3)
• the electrical connection(s) (4)

Remove the panel (2) .

2 - REFITTING

WARNING : fit the connections (4) before the flap controls (3) .

Proceed in the reverse order to removal .

Check :

• the electrical operation
• the mechanical operation of the flap controls
