C5GG10F1 - 406D9

REMOVAL - REFITTING REAR SEAT CUSHION

1 - REMOVAL

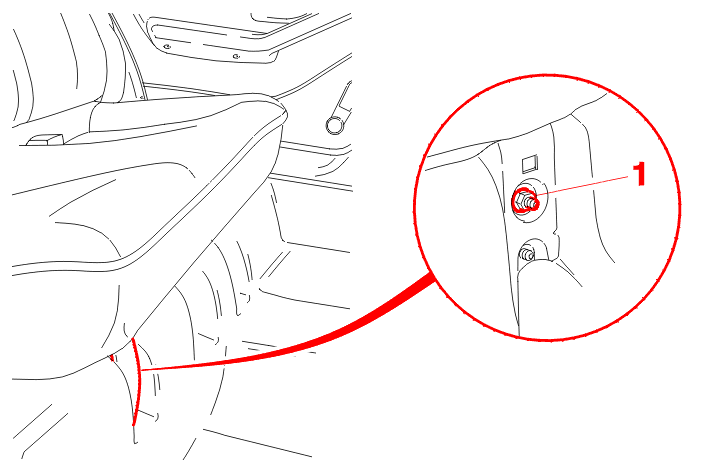

Remove the fastener (1) (Left and right) .

Pull the cushion forwards by raising it, then move it backwards to release it from the catches (2) .

Swing the seatback at the same time .

Release the seat belt stalks (3) through the cushion .

Remove the cushion .

2 - REFITTING

Proceed in the reverse order to removal .

NOTE : to pass the seat belt stalks through the rear cushions, fasten the seat belts, then pull them to pull through the stalks .
