C5JG1AW1 - 406D9

REMOVAL - REFITTING DRIVER'S AIRBAG SYSTEM

1 - REMOVAL

IMPERATIVE : APPLY THE DEACTIVATION PROCEDURE .

PRECAUTIONS TO BE TAKEN .

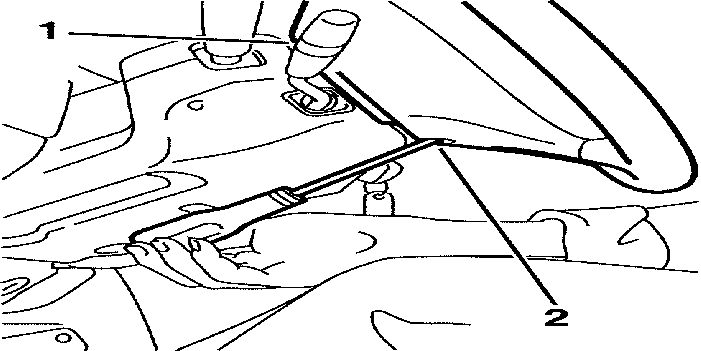

Move the steering wheel to the vertical position for access to the securing bolts (1) and (2) .

Slacken the bolts (1) - (2) .

Pull the airbag gently towards you .

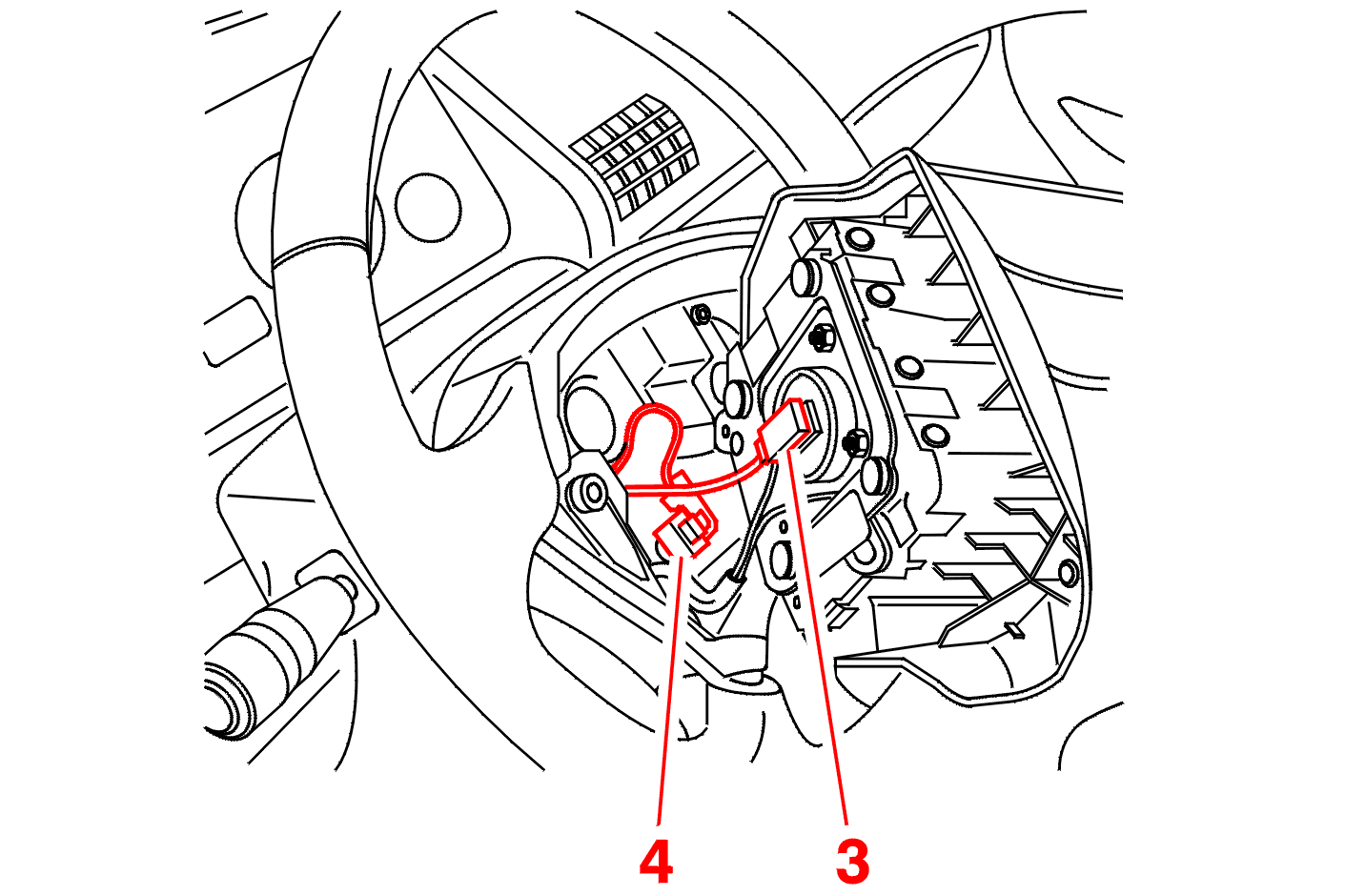

Disconnect the connector (3) - (4) .

Remove the steering wheel module .

Remove the steering wheel airbag, bag to the top, supporting the connector for safety requirements .

Lock the steering lock .

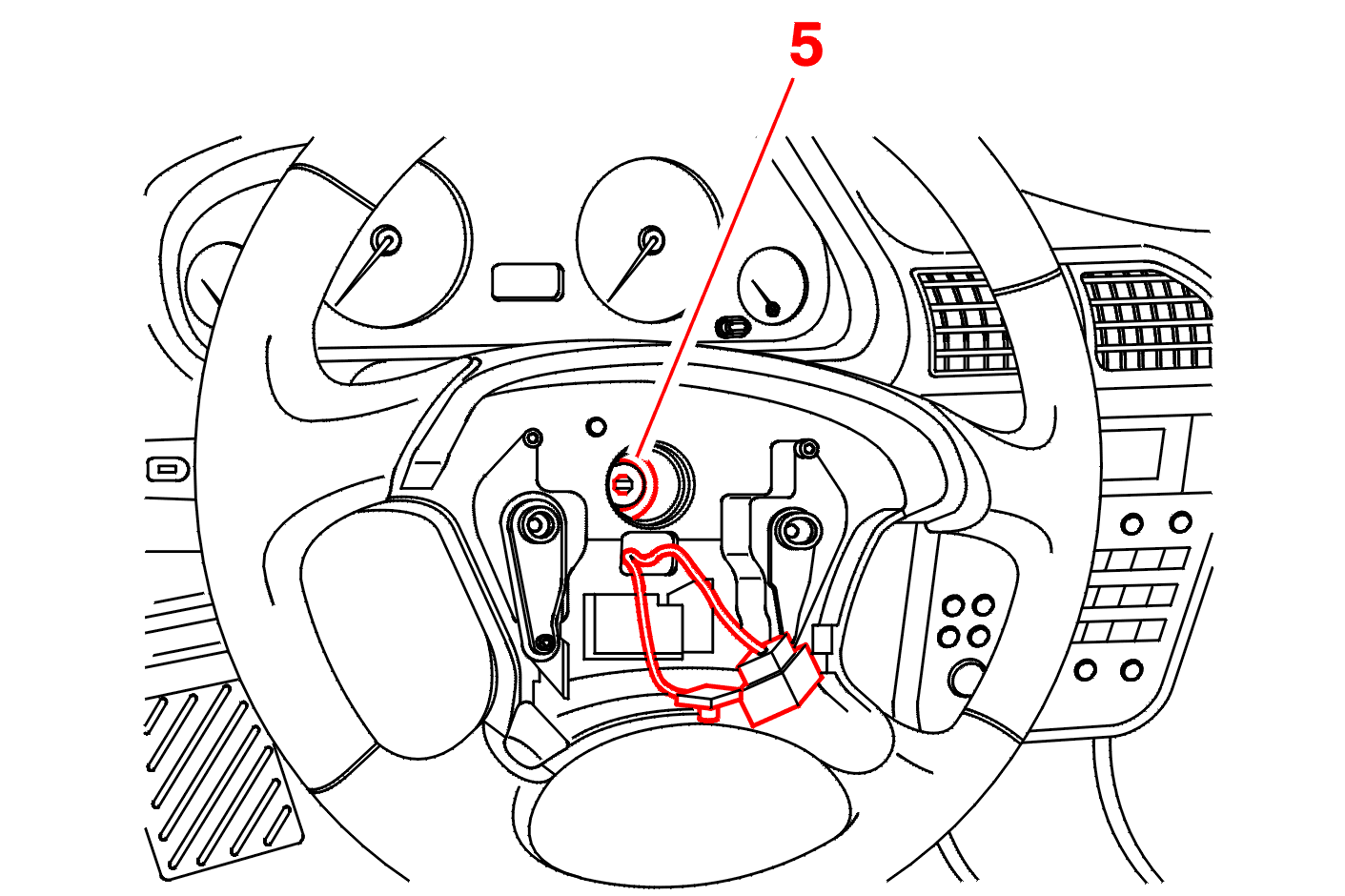

Slacken the bolt (5) by a few threads .

Release the steering wheel from its splines by tapping the rim with your hands .

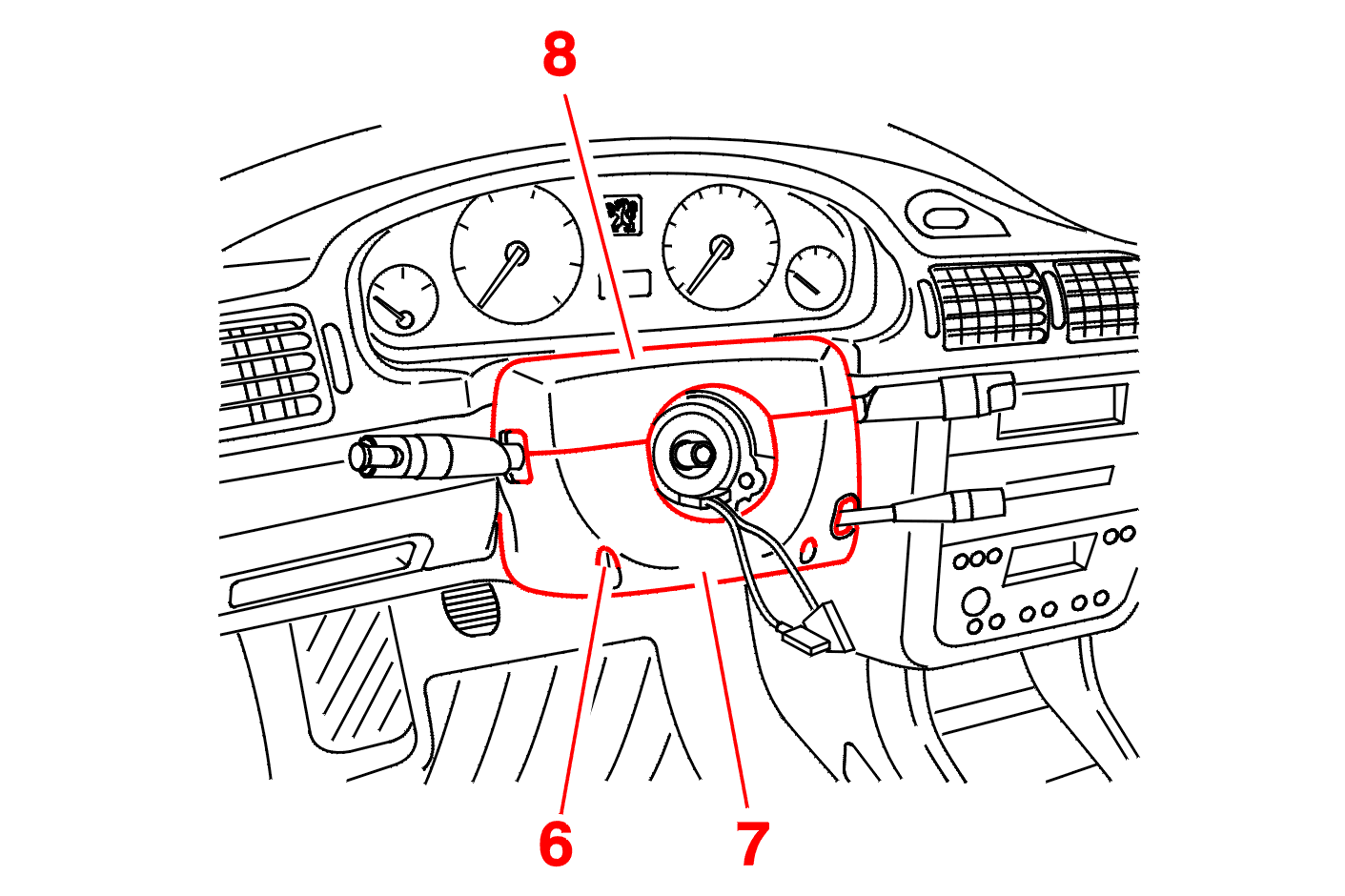

Remove :

WARNING : take care not to crush the connectors where they pass through the steering wheel .

Remove :

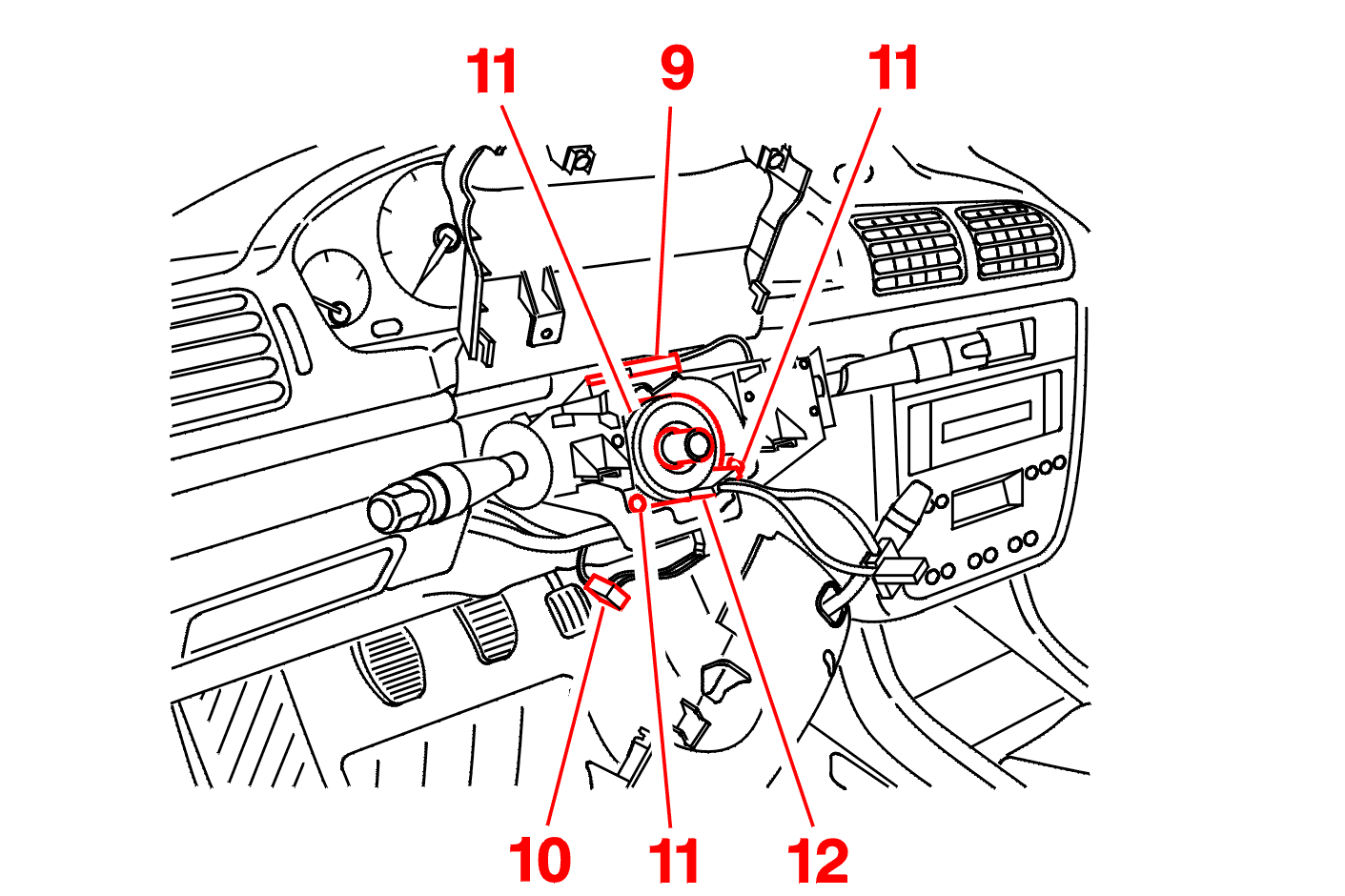

Using a blade, unclip the connector (9) from the bracket .

Disconnect :

Remove :

2 - REFITTING

FOR ANY ACTION ON THE SYSTEM, SEE THE SAFETY INSTRUCTIONS SECTION FOR THE PRECAUTIONS TO BE TAKEN .

Proceed in the reverse order to removal .

Tighten the fastener (5) to 3,5 daN.m. .

Tighten the bolts (1) and (2) to 1 daN.m. .

WARNING : before fitting the steering column cowls and the module, check that the harness is correctly positioned by manoeuvring the steering wheel .

IMPERATIVE : APPLY THE ACTIVATION PROCEDURE .

2 - 1 - ADJUSTING THE SWITCH IN THE FREE STATE

Check that the wheels are straight ahead .

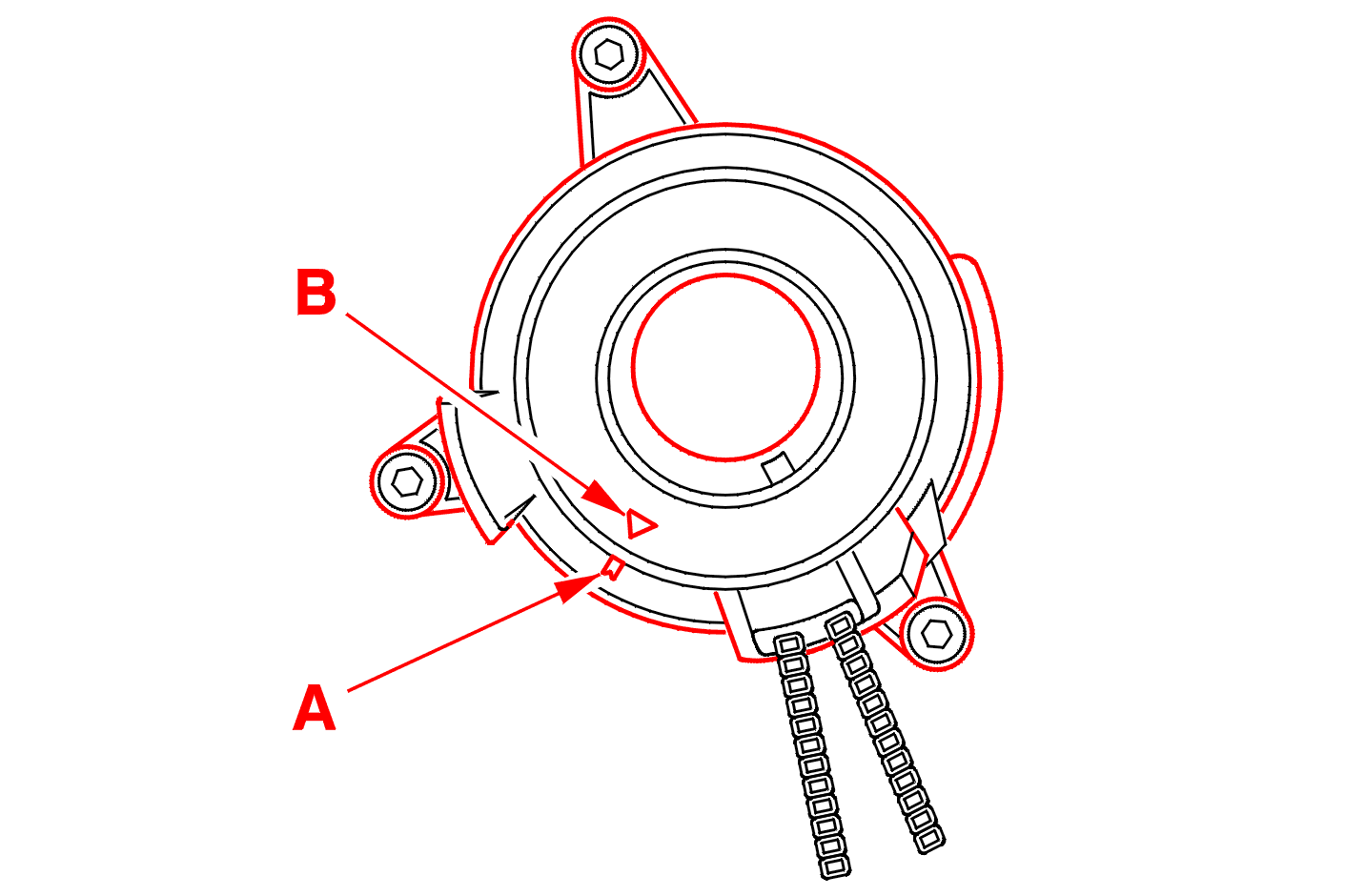

Turn the plate so that the location triangles (A) or marks (B) are in alignment (according to the type of connector) .

WARNING : perform this operation which ensures the central position of the connector before refitting the steering wheel .

IMPERATIVE : before fitting the air bag module, check that the locking of the connector to the trigger is correct .

Check the operation of the airbag warning light .
