C5JT01F1 - 406D9

DEVELOPMENT ON THE SEAT BELT FASTENER

1 - IDENTIFICATION

Old fixings : 7/16 thread (inches) .

New fixings : M10 x 150 thread (metric) .

From build no. 840089 for the saloon and estate and from build no. 8404U5 for the coup, .

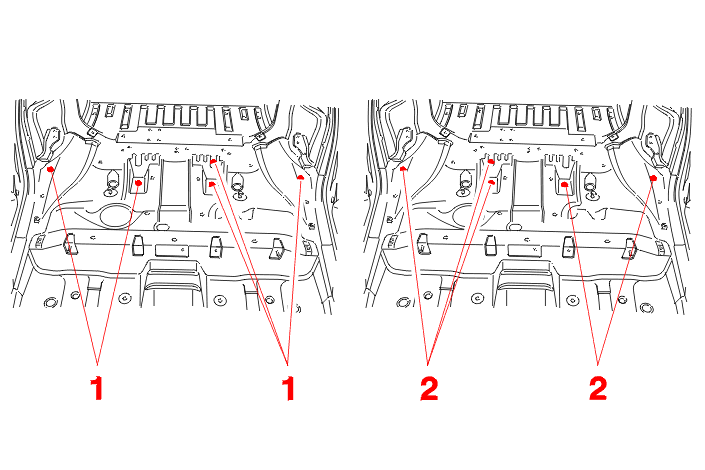

(1) : Nuts on rear floor (Saloon - Coupe) .

(2) : Nuts on rear floor (Estate) .

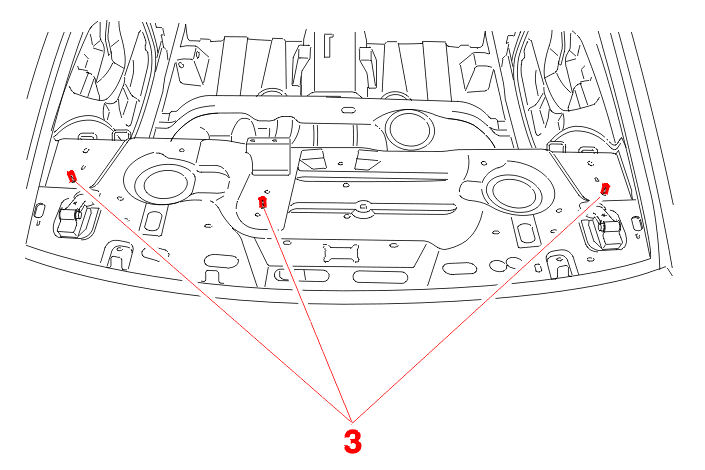

(3) : Screws on the rear parcel shelf (Saloon) .

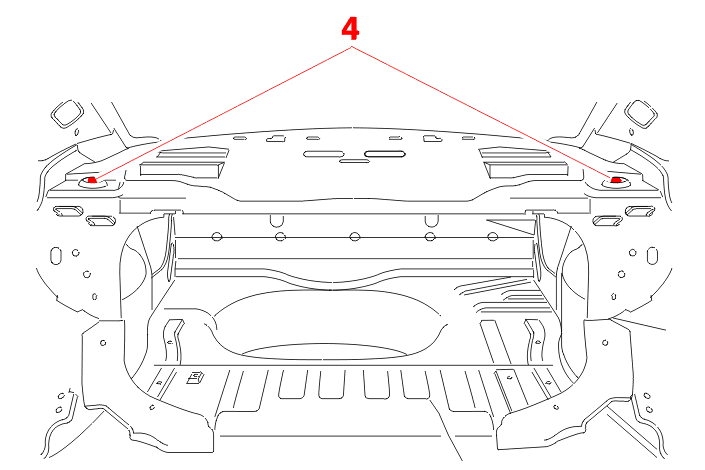

(4) : Nuts on the rear parcel shelf (Coupe) .

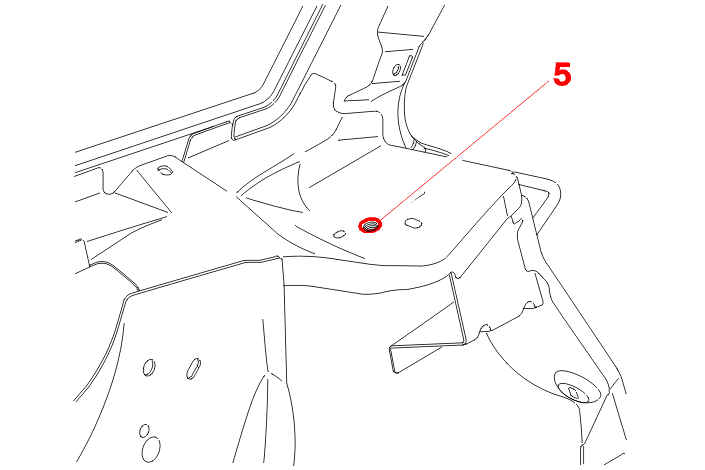

(5) : Nuts on the passenger compartment side (Estate) .

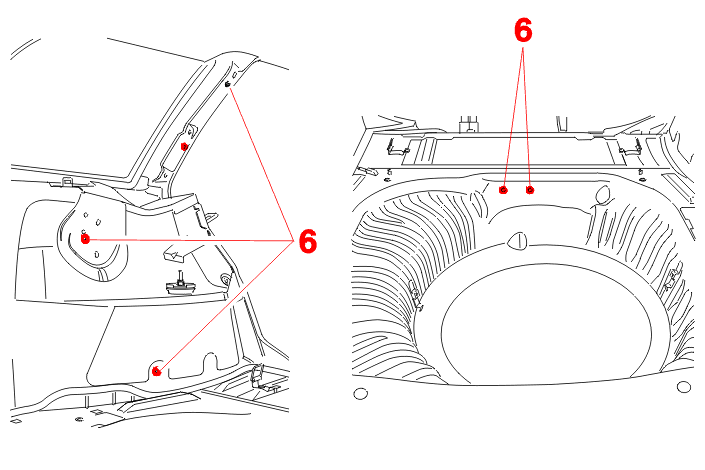

(6) : Nuts on the passenger compartment side and loading floor side (7 -seater family estate option) .

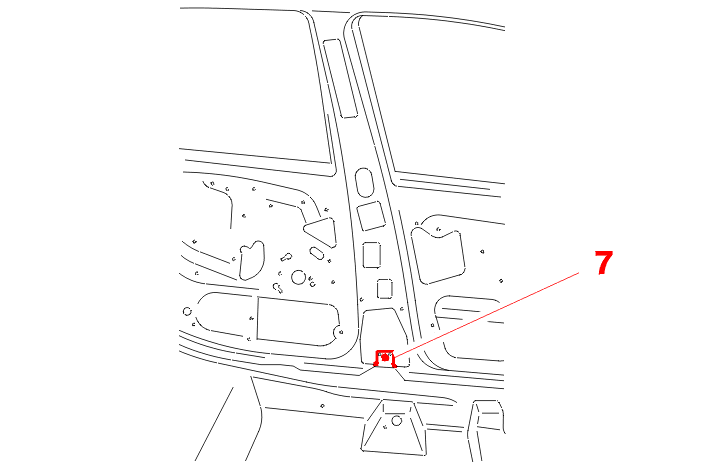

(7) : Nuts on centre pillar (Saloon + Estate) .

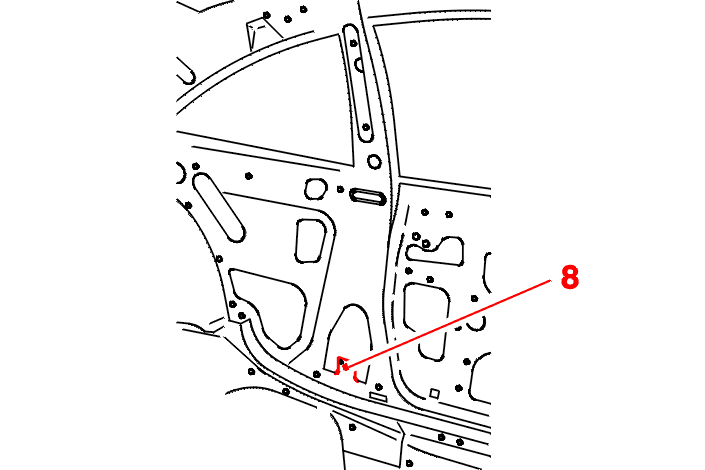

(8) : Nuts on centre post (Coupe) .

2 - TIGHTENING TORQUE(S)

Old fixings : 3 da.Nm .

New fixings : 2.3 da.Nm .

3 - INTERCHANGEABILITY

3 - 1 - REPLACEMENT OF A BODY SHELL

As from 08/11/1999, all the bodies will be fitted with welded seat belt fixing bolts and nuts with a M10 x 150 thread .

The replacement bodies will be supplied with a kit (seat belt bolts and nuts with a M10 x 150 thread) .

3 - 2 - REPLACEMENT OF DETAIL PART

(Seat frame, Rear parcel tray, Rear wing inner panel...) .

When stocks are exhausted, Parts Division will supply only the new assembly .

IMPERATIVE : order the new seat belt fixings .
