MODIFICATION FRONT DOOR LOCK STALK CONNECTORS
Front door lock stalk connectors will in future be fitted with the (SIGMA II-way) connector instead of the lockable 6-way connector (metal wire or caliper) .

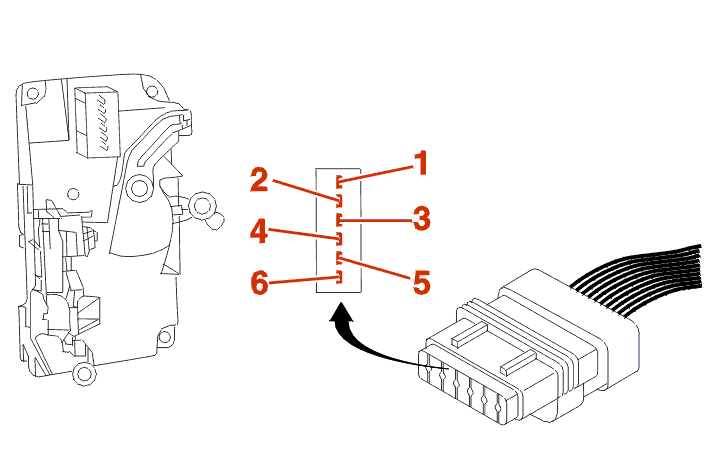

1 - EARLIER ASSEMBLY

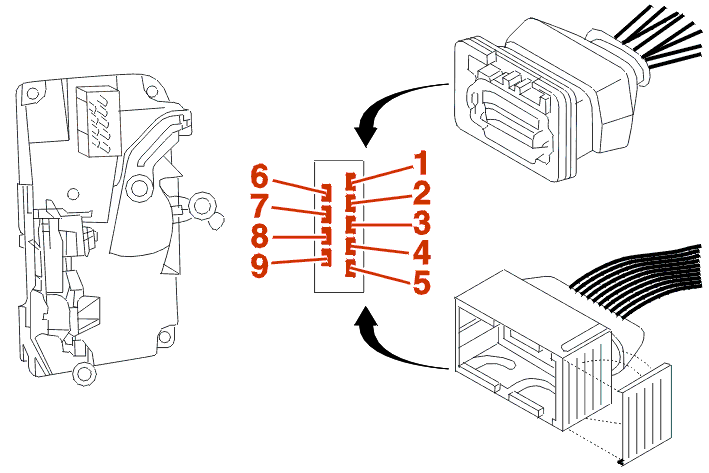

2 - LATER ASSEMBLY
NOTE : the replacement parts division now only markets the new (SIGMA II-way) stalks 6 .
WARNING : fitting of a new stalk to a vehicle produced before the modification requires replacement of the front door harness 9-way connector and the wires to be connected to the 6-way connector .
Fitting of a lock fitted with a 6-way connector to replace the original lock fitted with the 9-way connector .
| front left hand door lock connector 6202 |
|||
|---|---|---|---|
| wire no. | matching | connector 9V | connector 6V |
| 6201 | engine | 2 | 3 |
| 6211 | engine | 7 | 5 |
| 8611 | CPO * | 6 | 1 |
| 6291 | lock contact | 3 | 6 |
| M620 | earth | 4 | 2 |
| * door open switch | |||
| right front door lock connector 6207 |
|||
|---|---|---|---|
| wire no. | matching | connector 9V | connector 6V |
| 6202 | engine | 2 | 3 |
| 6212 | engine | 7 | 5 |
| 8612 | CPO * | 6 | 1 |
| 6293 | lock contact | 3 | 6 |
| M6207 | earth | 4 | 2 |
| * door open switch | |||
