D4BM04K1 - 406D9

FITTING : ANTI-THEFT DEVICE

1 - REMOVAL

Remove :

• the trim pad
• the sealing sheet

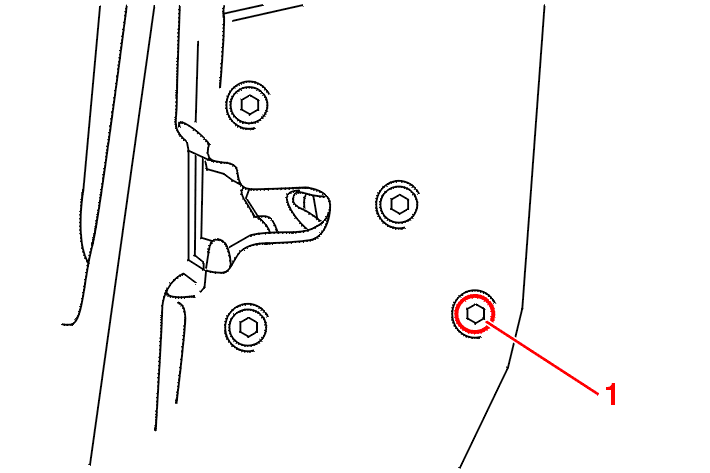

Remove the fastener (1) .

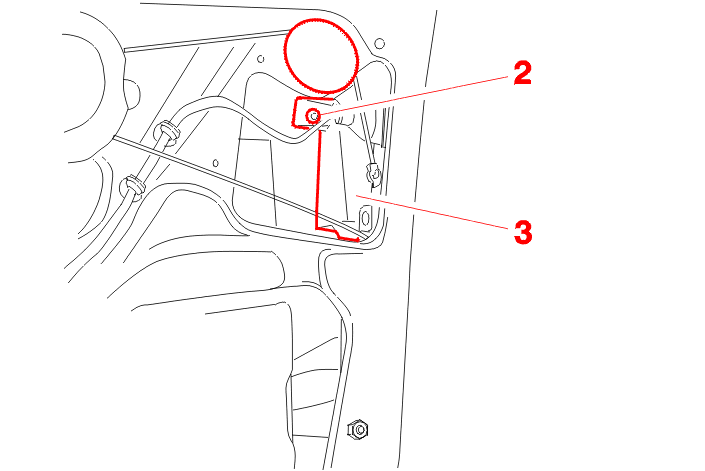

Remove :

• the fastener (2)
• the window guide (3)

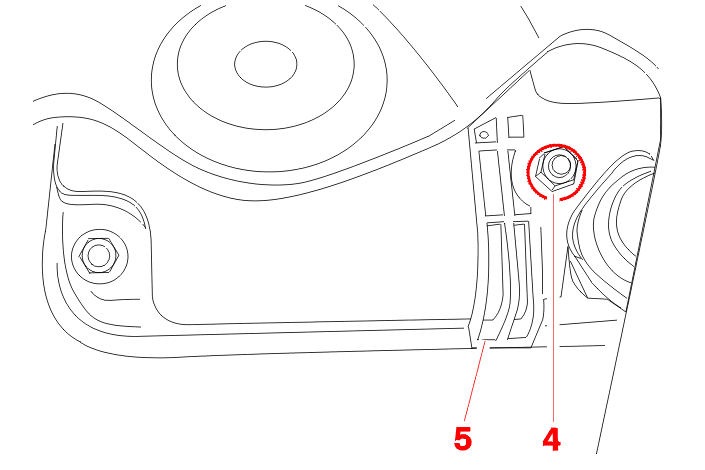

Remove :

• the fastener (4)
• the lock support (5)

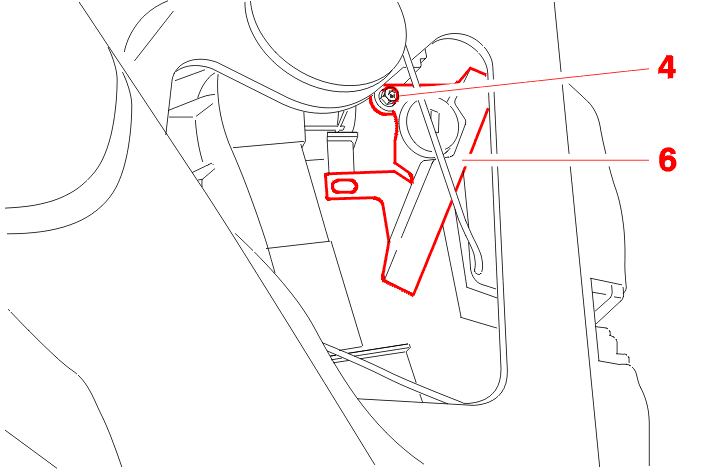

Secure the anti-theft panel (6) using the fixing (4) .

2 - REFITTING

Proceed in the reverse order to removal .

Check the operation .

Degrease the inner panel using diluted surface cleaning agent .

IMPERATIVE : always change the sealing sheet after every operation .

Fit :

• the sealing sheet
• the trim pad
