D5AP02K1 - 406D9 COUPE

FITTING OF AUDIO EQUIPMENT AS AN ACCESSORY FROM VIN NUMBER 80800001

It is necessary to fit an impedance adaptor for the aerial signal .

1 - PARTS REQUIRED

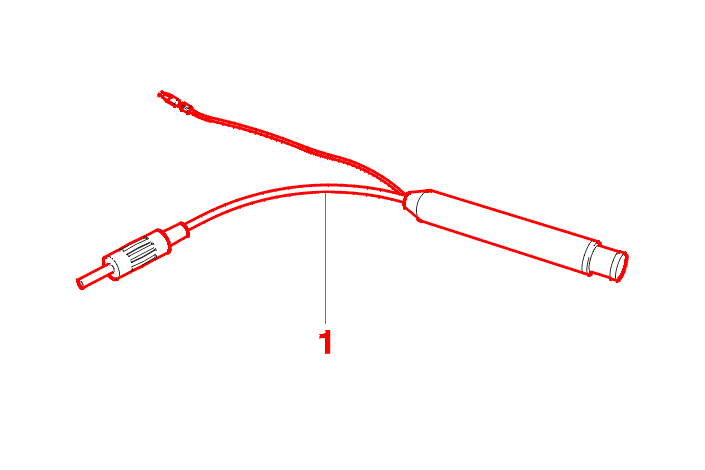

(1) Assembly DIN : Part No. 6561.F1 .

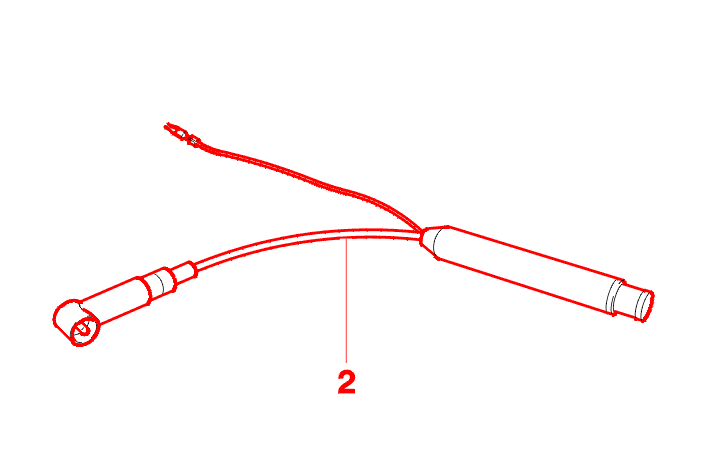

(2) Assembly ISO : Part No. 6561.F2 .

2 - REMOVAL

Remove the blanking piece from the audio location .

3 - REFITTING

Connect the audio to the connections .

Connect the aerial coaxial cable to the impedance adaptor (1) or (2) ( According to specification ) .

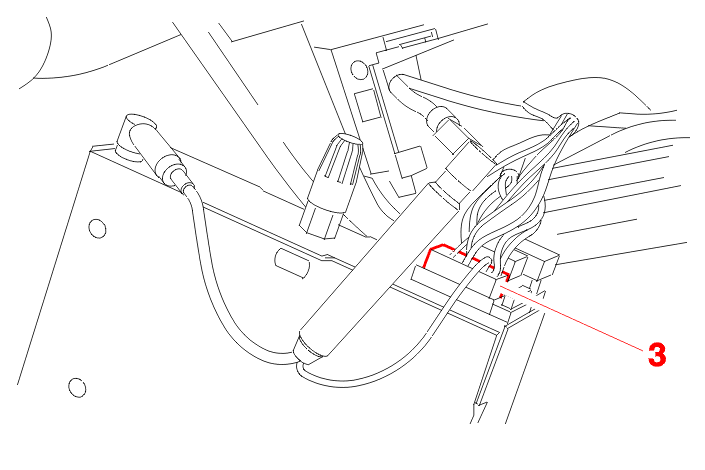

Connect the supply wire for the adaptor to + 12 v on way 5 of connector (3) .
