E5AB1DK1 - 406D9 DW10 ENGINE

PRESENTATION TOOLING ENGINE


kit for engine(s) DW
reference description reference reference

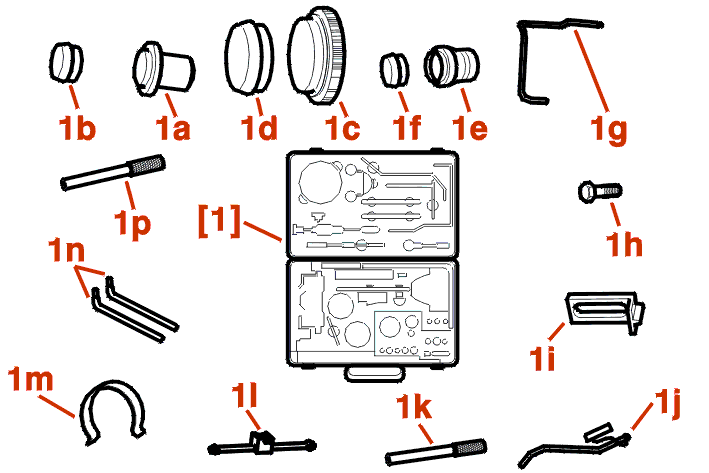

[1] kit (-).0188-ZX (-).0188
[1a] timing side crankshaft seal fitting drift
(drift)		 (-).0188 - A1 (-).0188 - A
[1b] timing side crankshaft seal fitting drift
(cone)		 (-).0188 - A2 (-).0188 - A
[1c] engine flywheel side crankshaft seat fitting drift
(cone)		 (-).0188 - B1 (-).0188 - B
[1d] engine flywheel side crankshaft seat fitting drift
(drift)		 (-).0188 - B1 (-).0188 - B
[1e] camshaft seal fitting drift
(cone)		 (-).0188 - C1 (-).0188 - C
[1f] camshaft seal fitting drift
(drift)		 (-).0188 -C1 (-).0188 - C
[1g] single engine flywheel setting pin (-).0188 - D (-).0188 - D
[1h] bolt(s) M8 x 125 length 45 mm
(overhead camshaft setting rod)		 (-).0188 - E (-).0188 - E
[1i] flywheel stop (-).0188 - F (-).0188 - F
[1j] tensioner roller setting rod (-).0188 - G -
[1k] injection pump setting pin (-).0188 - H -
[1l] tension lever
square 8 mm
square 7 mm
(-).0188 - J1
(-).0188 - J2		 (-).0188 - J
[1m] belt retaining clip (-).0188 - K -
[1n] cylinder head releasing levers
(quantity 2)		 (-).0188 - L (-).0188 - L
[1p] camshaft setting rod (-).0188 - M -


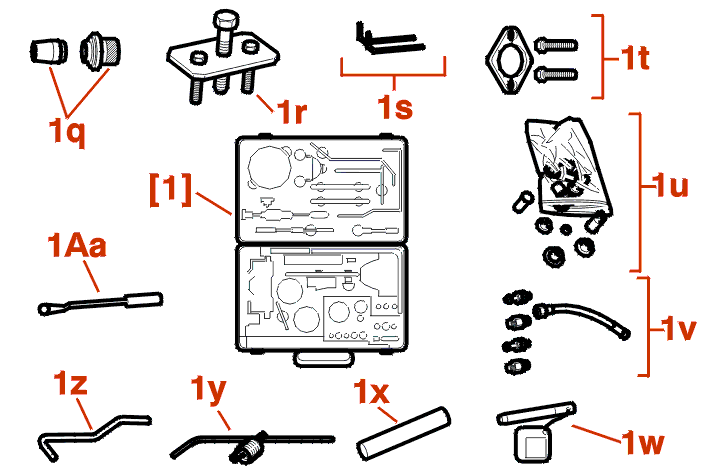

kit for engine(s) DW (continued)
reference description reference reference
[1] kit (-).0188 - ZX (-).0188
[1q] camshaft seal fitting drift
(drift) (cone)		 (-).0188 - N (-).0188 - N
[1r] crankshaft pulley extractor (-).0188 - P (-).0188 - P
[1s] dynamic tensioner roller pins
(pin ø 4) (pin ø 2)		 (-).0188 - Q (-).0188 - Q
[1t] kit for detaching the high pressure pump (-).0188 - R (-).0188 - R
[1u] set of plugs (-).0188 - T (-).0188 - T
[1v] compression checking kit (-).0188 - U (-).0188 - U
[1w] pulley immobilisation pin (-).0188 - V (-).0188 - V
[1x] valve stem seal fitting tool (-).188 - W (-).0188 - W
[1y] double engine flywheel setting pin (-).0188 - X (-).0188 - X
[1z] flywheel setting rod (-).0188 - Y (-).0188 - Y
[1Aa] dynamic tensioner compression lever (-).0188 - Z (-).0188 - Z


reference description reference reference

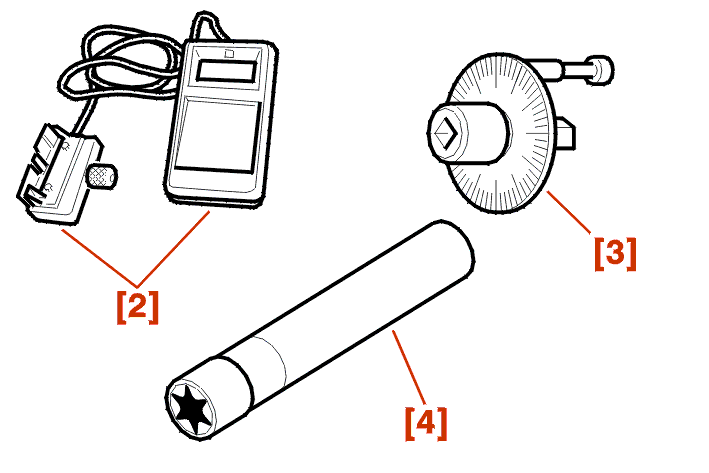

[2] tension measuring equipment (-).0192 (-).0192
[3] angular locking cotter FACOM D360 type 4069-T
[4] cylinder head bolt socket (-).0185 FACOM STX 14


reference description reference reference

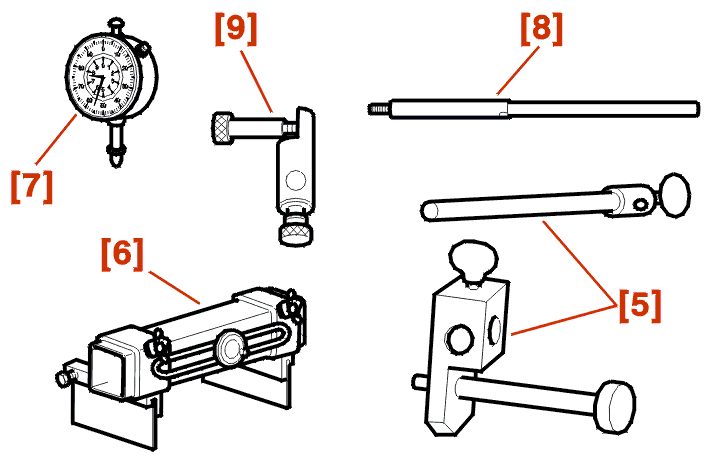

[5] pin + dial gauge support (-).0504 5602 - T
[6] bearing no. 1 side seals fitting tool (-).0153-A 7004-T.F
[7] dial gauge with securing lug (-).01504 2437-T

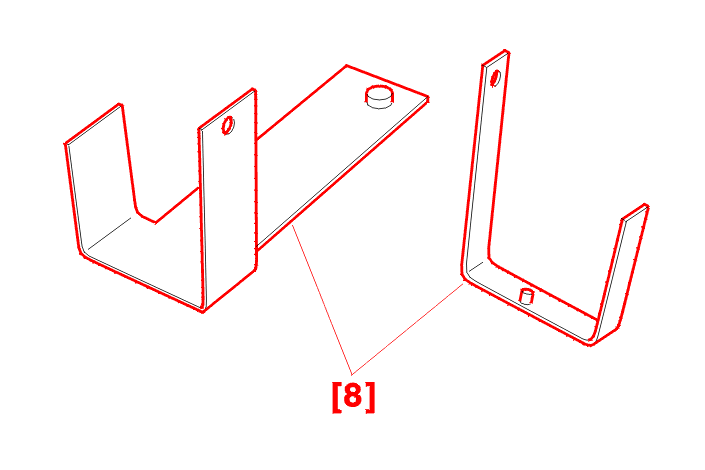

[8] dial gauge support rod (-).0113 - EZ + FZ 1132-T
[9] dial gauge carrier


reference description reference reference

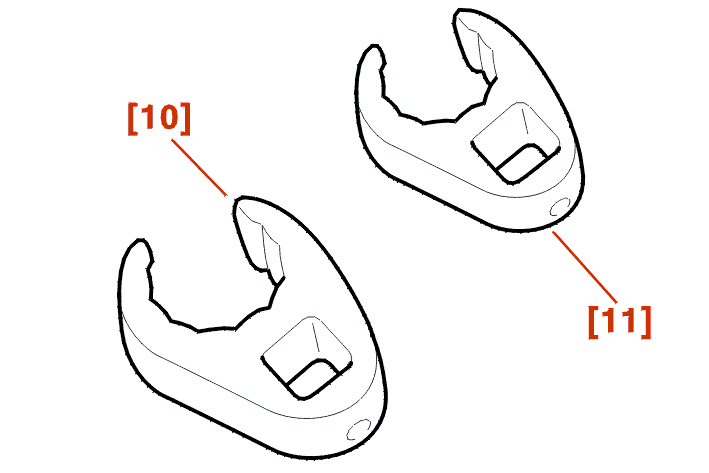

[10] pipe spanner (-).1603 - 4220-T.D
[11] pipe spanner (-).1603 - G 4220-T.C


reference description reference reference

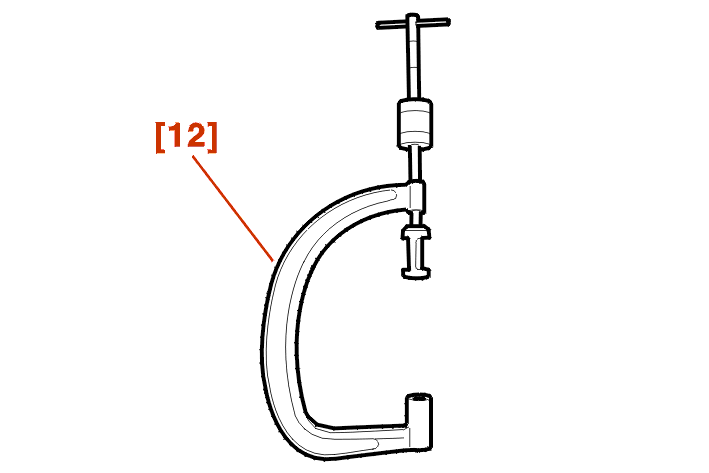

[12] valve lifter
cup press		 FACOM
U43 - LA+
U43 - LA16 - 21		 FACOM
U43 - LA+
U43 - LA16 - 21


reference description reference reference

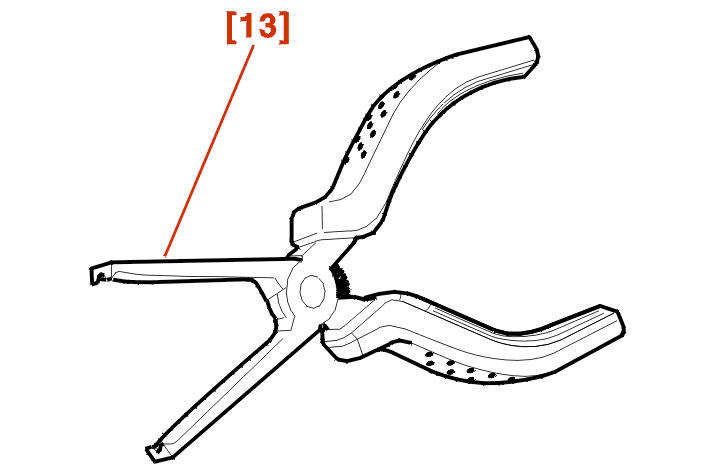

[13] valve stem oil seal pliers (-).0170-A 4517-T (kit 4507-T)


reference description reference reference

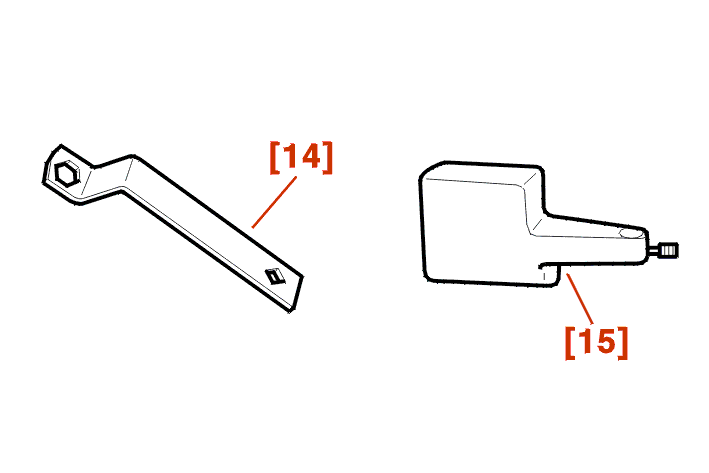

[14] crankshaft spanner (-).0117-EZ XXX
[15] dial gauge support (-).0110-H 1754 - T bis


reference description reference reference

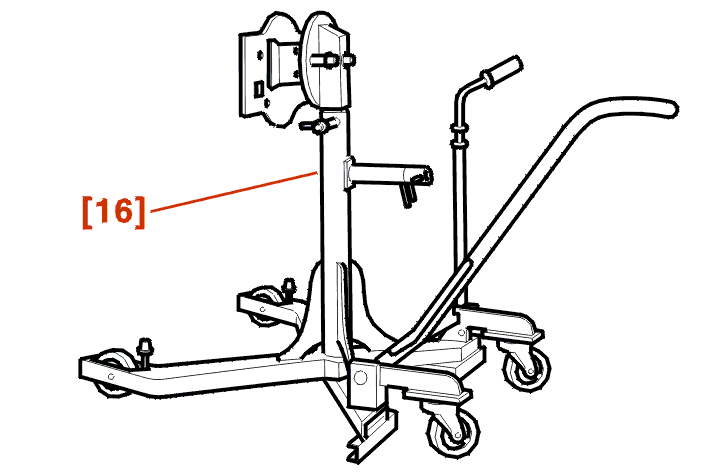

[16] stand DESVIL 2509 - T


reference description reference reference

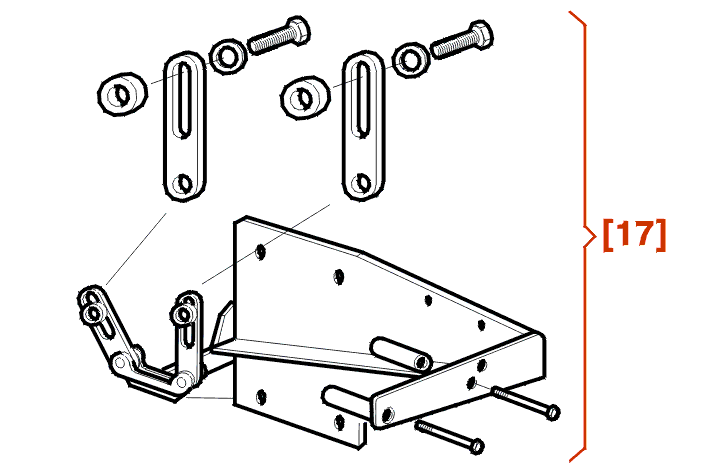

[17] adaptor (-).0132 - ALZ 7002 - TA/9015 - T


reference description reference reference
[18] valve stem oil seal drift (-).0132 - W 4511 - T
