E5AB1EK1 - 406D9 DW10ATED ENGINE
PRESENTATION TOOLING CLUTCH

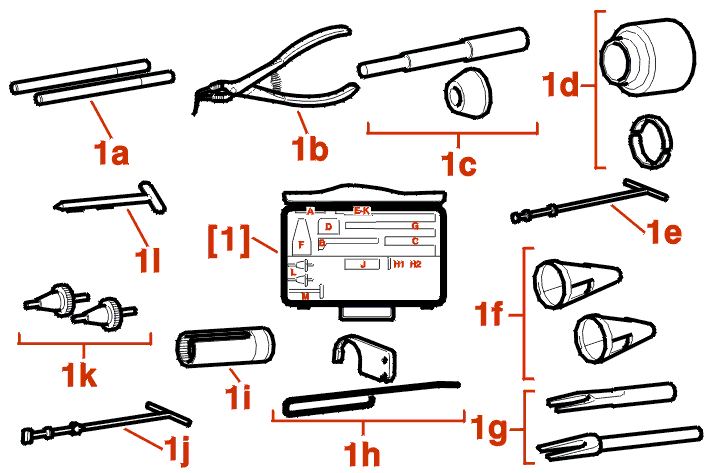

1 - SPECIAL TOOLS
| clutch kit | |||
|---|---|---|---|
| reference | description | reference | reference |
| [1] | kit | (-).0216 - ZW | 9040 - T |
| [1a] | gearbox pins/guide | (-).0216 - A | (-).0216 - A |
| [1b] | stop removal pliers | (-).0216 - B | (-).0216 - B |
| [1c] | - engine and gearbox mandrel - cone for stop |
(-).0216 - C | (-).0216 - C |
| [1d] | - stop unclipping/clipping drift - stop clip repositioning retainer |
(-).0216 - D | (-).0216 - D |
| [1e] | hydraulic control clutch stop clipping tool 605 (version TC) and 406 | (-).0216 - E | (-).0216 - E |
| [1f] | - gearbox hydraulic control protector cone ME5T (long) - gearbox hydraulic control protector cone MG5T (short) and ML5T |
(-).0216 - F | (-).0216 - F |
| [1g] | cable control ball joints unclipping tool(s) | (-).0216 - G | (-).0216 - G |
| [1h] | clutch travel checking tool | (-).0216 - H | (-).0216 - H |
| [1i] | hydraulic control transmitter removal tool | (-).0216 - J | (-).0216 - J |
| [1j] | hydraulic control clutch stop clipping tool | (-).0216 - K | (-).0216 - K |
| [1k] | double flywheel refitting tool (x2) | (-).0216 - L | 9040 - T |
| [1l] | gear lever locking tool | (-).0216 - M | (-).0216 - M |
