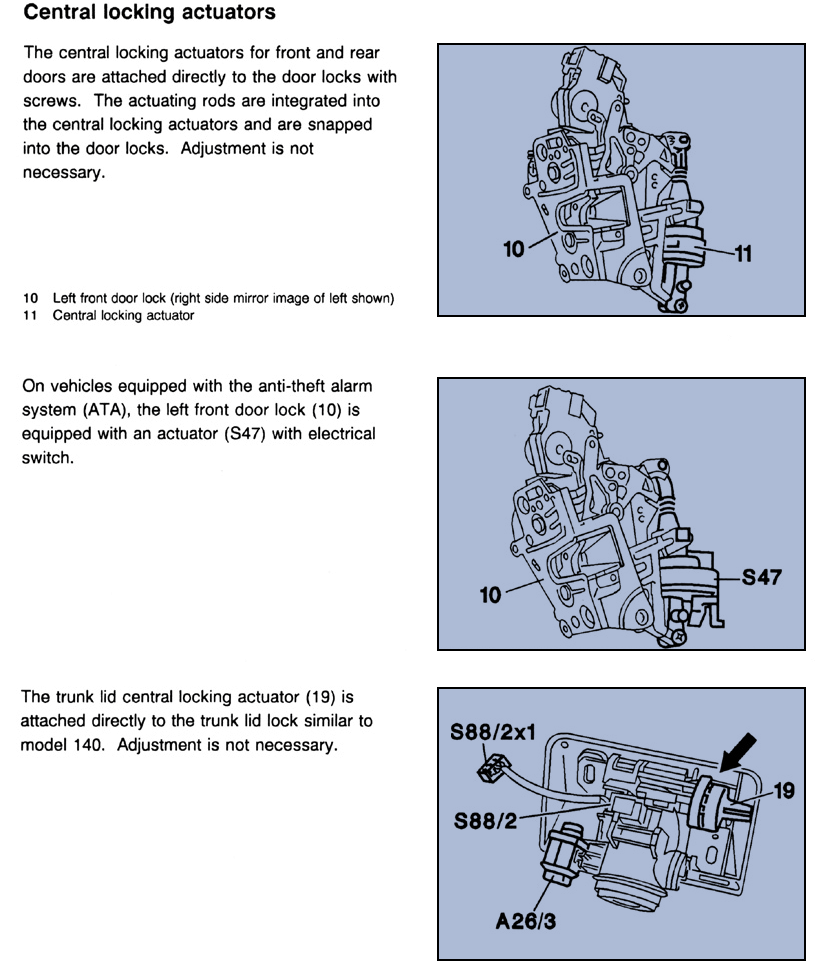

Electrical / RCL/ATA/PSE / Central Locking Actuators


The convenience control module is located in the trunk behind the battery. It provides one touch opening of the windows at both front doors.
