The Aftermarket Radio Problem

收音机的相关问题


Background:  市场北背景
Somewhere between 1997 and 1998, VW  and Audi started using diagnostics-capable radios in most of their models. That means the dealer's scan tools (and our own VAG-COM system) can talk to the radio. Why? So you can set various options, like whether a CD player is connected, whether there's an amplified or conventional antenna, and so on.    In addition, these radios constantly monitor their speaker outputs and if you have an open or short circuit to one of the speakers, even a momentary one, they will record a fault code.
某些地方从1997年到1998年,大众/奥迪开始使用收音机的诊断功能了。也就是说我们可以象给发动机的

ECU设置参数一样,可以用相应的解码器,

比如VAG-COM来对收音机的很多参数进行设置。比如我们可以设定CD播放器是否连接,功放是否使用,还有天线

怎么用等等。此外它还有自诊断功能,它时刻监视着扬声器的输出,一旦有短路或开路,它就会记录这个

故障并写下故障码到芯片里面。
The problem is, VW brought the "K-Line", the wire on which all of the control modules in the car communicate with the scan-tool to a pin in the connector on which older radios used to put +12 back into the harness.  (We're not sure whether this was for antenna power or as an amplifier turn-on or what).  So if I were to take the non-diagnostics capable radio out of my 1997 GTI and put it in a 1998 (where there should be a diagnostics-capable one), it fits perfectly, plugs right into the harness, but the K-line ends up shorted to +12!



Aftermarket Radios
Now people hardly ever put older stock radios in newer cars. What they often do is install better after-market radios. And they most often do this by using an aftermarket adapter-harness which plugs right into the car's harness, so they don't have to cut up the car's harness. Trouble is, some of the aftermarket harnesses faithfully reproduces the older, non-diagnostics radios with a loop of wire between +12 and the pin where the K-line is on newer models. So you install your fancy new radio with one of these and everything works fine until.. somebody plugs in a scan tool.

The Problem
Nothing in the car cares if the K-line is shorted to +12. The K-Line is not used for intra-vehicle communications. But a scan-tool initializes a communications session by pulling the K-line to ground. The K-line is supposed to have some voltage on it, but through a high-impedance source. If the K-line has "hard" +12 on it, something has to give!  What "gives" is usually the scan-tool's output driver for the K-line. And fixing a VAG-1551/1552 with a blown K-line driver is expen$ive!  But the ISO-COM PC<->Car interface adapter that we provide with our VAG-COM software has a small user-replaceable fuse protecting the K-Line output driver, and there's a spare fuse taped under the lid of the little box. No big worries there..:-)   Our other interfaces use output drivers that are thermally protected against shorts.  They don't need a fuse.  If you plug them into a car with the K-line shorted to +12, they simply won't work in that car, but it won't hurt them either.

The Dealers
Some dealers will refuse to scan any car that has an aftermarket radio.  Since most dealers have "killed" a few of their very expensive scan-tools, I can sort of understand why.   The best solution:   Buy our VAG-COM software and scan it yourself..:-)    If you can successfully scan the car with VAG-COM, you know it's safe -- and can likely convince the dealership that it's safe too.

Test for this problem yourself
You can test for this problem yourself without removing the radio.  First, if your car is a 1996 or earlier model, don't bother -- the K-Line doesn't go to the radio harness and there is no possibility that that the car has this problem.

If you have a Vag-Saver : Simply turn the ignition ON and plug in the Vag-Saver. Look at the LED. Green is OK, Red is not OK.

If you have a volt-meter:  measure the voltage between pins 4 and 7 of the diagnostic connector with the ignition and radio turned ON.   If it's under 9V, your K-line is fine.  If it's over 9V, the results are inconclusive.  You'll need a 1k Ohm (approximately) resistor.  Put it between pins 4 and 7 of the diagnostic connector.  Now use the volt-meter to measure the voltage between 4 and 7 (in parallel with the resistor).  If it's under 1V, you don't have the problem.  If it remains near 12V (the resistor will get hot!) you do have this problem and you'll need to fix it per the the instructions below.

If you don't have a volt-meter:  Go to Radio-Shack and buy a 1K-ohm resistor. I think they cost $0.99 for a pack of 5.  Temporarily place the resistor between pins 4 and 7 of your diagnostic connector.   Ensure it's making contact with both pins.   If the resistor gets hot, your K-line is shorted to +12. If it does not get hot, you're fine. Do NOT install this resistor in the port. You are simply using it to check and see if the k-line has +12V. If the resistor gets hot, then pull it out and fix the problem by disconnecting the k-line from the stereo's wiring harness.

The Diagnostic Connector

Fix the Problem:

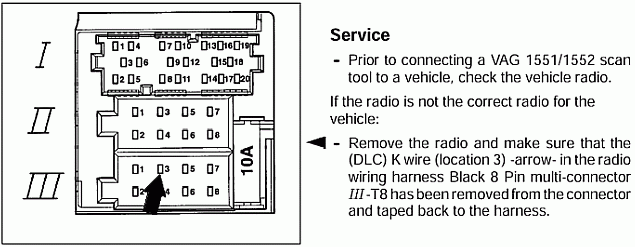

Remove the radio.  Then make the following modification to the car's wiring harness:



Note: 2002+ "Premium VI" Radio:
Some 2002 and newer VW's come with the double-DIN "Premium VI" radio. This radio does not have a k-line connection, but rather has a CAN-high and CAN-low. Although the connector is completely different and it shouldn't be possible to have the "Aftermarket Radio Problem" with these newer cars, it would probably be in your best interest to make sure that NOTHING is connected to these pins in the radio harness, if you use an aftermarket radio. The
back of the Premium VI radio is shown in the below diagram.

8 pin multi-connector II

9 - CAN-Bus plus
10 - CAN-Bus minus
