B2CB4JK1 - 406D9 BE3R GEARBOX BE4R GEARBOX
IDENTIFICATION, DATA, TIGHTENING TORQUE(S) GEARBOX
1 - IDENTIFICATION

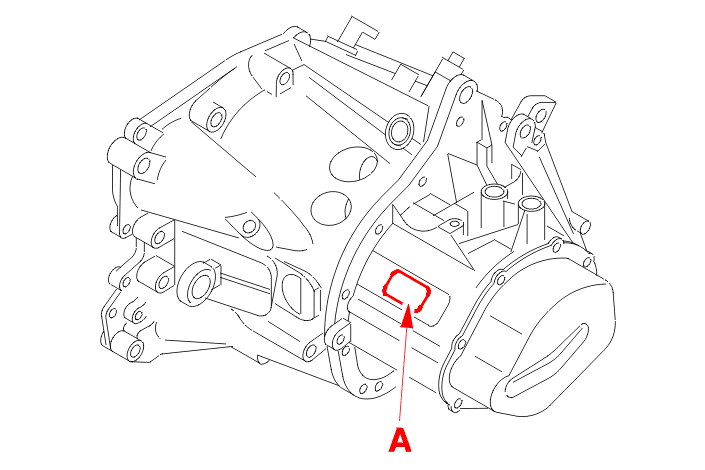

BE3/5 gearbox .

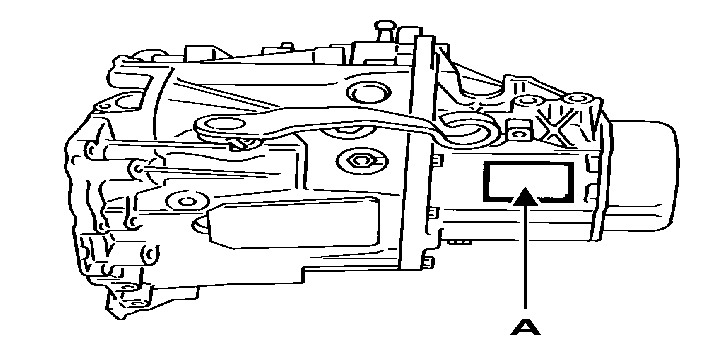

BE4/5 gearbox .
Identification area (A) comprising :
2 - DATA
| unit reference | 20TD09 20TE07 20TD54 |
20TD53 20TD10 20TE06 |
20TD53 20TD10 20TE06 |
|---|---|---|---|
| engine type | XU5JP | XU7JB | XU7JB |
| engine code | BFZ | LFX | LFX |
| tyres | 195/65R15 | 195/65R15 | 185/70R14 |
| gear-box type | BE3/5V | BE3/5N | BE3/5N |
| gear(s) 1st |
11 X 38 | 11 X 38 | 11 X 38 |
| gear(s) 2nd |
23 X 43 | 23 X 43 | 23 X 43 |
| gear(s) 3rd |
25 X 34 | 25 X 32 | 25 X 32 |
| gear(s) 4th |
39 X 41 | 41 X 39 | 41 X 39 |
| gear(s) 5th |
44 X 35 | 47 X 35 | 47 X 35 |
| gear(s) reverse |
12 X 31 X 40 | 12 X 31 X 40 | 12 X 31 X 40 |
| speed at 1000 revs/min (in km/h) 1st |
8.08 | 8.51 | 8.37 |
| speed at 1000 revs/min (in km/h) 2nd |
14.93 | 15.72 | 15.46 |
| speed at 1000 revs/min (in km/h) 3rd |
20.52 | 22.97 | 22.59 |
| speed at 1000 revs/min (in km/h) 4th |
26.55 | 30.90 | 30.39 |
| speed at 1000 revs/min (in km/h) 5th |
35.08 | 39.46 | 38.82 |
| speed at 1000 revs/min (in km/h) reverse |
8.37 | 8.82 | 8.67 |
| final drive gears | 19 X 79 | 19 X 75 | 19 X 75 |
| speedometer drive | 22 X 18 | 22 X 18 | 22 X 18 |
| oil capacity | 1.9 | 1.9 | 1.9 |
| unit reference | 20TD55 20TD11 20TE08 |
20TD55 20TD11 20TE08 |
20TD10 20TD53 20TE06 |
|---|---|---|---|
| engine type | XU7JP | XU7JP | XU7JP4 |
| engine code | L6A | L6A | LFY |
| tyres | 185/70R14 | 195/65R15 | 185/70R14 |
| gear-box type | BE3/5N | BE3/5N | BE3/5N |
| gear(s) 1st |
11 X 38 | 11 X 38 | 11 X 38 |
| gear(s) 2nd |
23 X 43 | 23 X 43 | 23 X 43 |
| gear(s) 3rd |
25 X 32 | 25 X 32 | 25 X 32 |
| gear(s) 4th |
41 X 39 | 41 X 39 | 41 X 39 |
| gear(s) 5th |
47 X 35 | 47 X 35 | 47 X 35 |
| gear(s) reverse |
12 X 31 X 40 | 12 X 31 X 40 | 12 X 31 X 40 |
| speed at 1000 revs/min (in km/h) 1st |
7.29 | 7.42 | 8.37 |
| speed at 1000 revs/min (in km/h) 2nd |
13.46 | 13.7 | 15.46 |
| speed at 1000 revs/min (in km/h) 3rd |
19.68 | 20.02 | 22.59 |
| speed at 1000 revs/min (in km/h) 4th |
26.49 | 26.93 | 30.39 |
| speed at 1000 revs/min (in km/h) 5th |
33.83 | 34.4 | 38.82 |
| speed at 1000 revs/min (in km/h) reverse |
7.58 | 7.69 | 8.67 |
| final drive gears | 17 X 77 | 17 X 77 | 19 X 75 |
| speedometer drive | 22 X 18 | 22 X 18 | 22 X 18 |
| oil capacity | 1.9 | 1.9 | 1.9 |
| unit reference | 20TD10 20TD53 20TE06 |
20TD09 20TD54 20TE07 |
20TD09 20TD54 20TE07 |
|---|---|---|---|
| engine type | XU7JP4 | XU7JP4 | XU7JP4 |
| engine code | LFY | LFY | LFY |
| tyres | 195/65R15 | 185/70R14 | 195/65R15 |
| gear-box type | BE3/5N | BE3/5V | BE3/5V |
| gear(s) 1st |
11 X 38 | 11 X 38 | 11 X 38 |
| gear(s) 2nd |
23 X 43 | 23 X 43 | 23 X 43 |
| gear(s) 3rd |
25 X 32 | 25 X 34 | 25 X 34 |
| gear(s) 4th |
41 X 39 | 39 X 41 | 39 X 41 |
| gear(s) 5th |
47 X 35 | 44 X 35 | 44 X 35 |
| gear(s) reverse |
12 X 31 X 40 | 12 X 31 X 40 | 12 X 31 X 40 |
| speed at 1000 revs/min (in km/h) 1st |
8.51 | 7.95 | 7.95 |
| speed at 1000 revs/min (in km/h) 2nd |
15.72 | 14.68 | 14.68 |
| speed at 1000 revs/min (in km/h) 3rd |
22.97 | 20.18 | 20.18 |
| speed at 1000 revs/min (in km/h) 4th |
30.09 | 26.11 | 26.11 |
| speed at 1000 revs/min (in km/h) 5th |
39.48 | 34.5 | 34.5 |
| speed at 1000 revs/min (in km/h) reverse |
8.82 | 8.23 | 8.23 |
| final drive gears | 19 X 75 | 19 X 79 | 19 X 79 |
| speedometer drive | 22 X 18 | 22 X 18 | 22 X 18 |
| oil capacity | 1.9 | 1.9 | 1.9 |
| unit reference | 20TD11 20TD55 20TE08 |
20TD12 20TD57 20TE10 |
20DL10 20DL61 20DL81 |
|---|---|---|---|
| engine type | XU7JP4 | XU10J4R | EW10J4 |
| engine code | LFY | RFV | RFR |
| tyres | 185/70R14 | 195/65R15 | 195/65R15 |
| gear-box type | BE3/5N | BE3/5N | BE4/5V |
| gear(s) 1st |
11 X 38 | 11 X 38 | 11 X 38 |
| gear(s) 2nd |
23 X 43 | 23 X 43 | 23 X 43 |
| gear(s) 3rd |
25 X 32 | 25 X 32 | 25 X 34 |
| gear(s) 4th |
41 X 39 | 41 X 39 | 39 X 41 |
| gear(s) 5th |
47 X 35 | 47 X 35 | 44 X 35 |
| gear(s) reverse |
12 X 31 X 40 | 12 X 31 X 40 | 12 X 31 X 40 |
| speed at 1000 revs/min (in km/h) 1st |
7.42 | 7.42 | 8.08 |
| speed at 1000 revs/min (in km/h) 2nd |
13.7 | 13.7 | 14.93 |
| speed at 1000 revs/min (in km/h) 3rd |
20.02 | 20.02 | 20.52 |
| speed at 1000 revs/min (in km/h) 4th |
26.93 | 26.93 | 26.55 |
| speed at 1000 revs/min (in km/h) 5th |
34.4 | 34.4 | 35.08 |
| speed at 1000 revs/min (in km/h) reverse |
7.69 | 7.69 | 8.37 |
| final drive gears | 17 X 77 | 17 X 77 | 19 X 79 |
| speedometer drive | 22 X 18 | 22 X 18 | 22 X 18 |
| oil capacity | 1.9 | 1.9 | 1.9 |
| unit reference | 20DL14 20DL62 20DL82 |
20DL15 20DL63 20DL83 |
20DL90 |
|---|---|---|---|
| engine type | EW10J4 | EW10J4 | EW10J4 |
| engine code | RFR | RFR | RFR |
| tyres | 195/65R15 | 205/60R15 | 195/65R15 |
| gear-box type | BE4/5N | BE4/5S | BE4/5N |
| gear(s) 1st |
11 X 38 | 11 X 38 | 11 X 38 |
| gear(s) 2nd |
23 X 43 | 23 X 43 | 23 X 43 |
| gear(s) 3rd |
25 X 32 | 25 X 34 | 25 X 32 |
| gear(s) 4th |
41 X 39 | 39 X 41 | 41 X 39 |
| gear(s) 5th |
47 X 35 | 43 X 37 | 47 X 35 |
| gear(s) reverse |
12 X 31 X 40 | 12 X 31 X 40 | 12 X 31 X 40 |
| speed at 1000 revs/min (in km/h) 1st |
7.42 | 8.02 | 7.05 |
| speed at 1000 revs/min (in km/h) 2nd |
13.7 | 14.82 | 13.03 |
| speed at 1000 revs/min (in km/h) 3rd |
20.02 | 20.37 | 19.03 |
| speed at 1000 revs/min (in km/h) 4th |
26.93 | 26.35 | 25.6 |
| speed at 1000 revs/min (in km/h) 5th |
34.4 | 32.2 | 32.7 |
| speed at 1000 revs/min (in km/h) reverse |
7.69 | 8.31 | 7.31 |
| final drive gears | 17 X 77 | 19 X 79 | 17 X 81 |
| speedometer drive | 22 X 18 | 22 X 18 | 22 X 18 |
| oil capacity | 1.9 | 1.9 | 1.9 |
| unit reference | 20DL43 | 20DL43 | 20DL46 | 20DL11 20DL60 20DL80 |
|---|---|---|---|---|
| engine type | EW7J4 | EW6J4 | EW10D | DW10TD |
| engine code | 6FZ | 5FZ | RLZ | RHY |
| tyres | 195/65R15 | 195/65R15 | 195/65R15 | 195/65R15 |
| gear-box type | BE4/5V | BE4/5V | BE4/5J | BE4/5L |
| gear(s) 1st |
11 X 38 | 11 X 38 | 11 X 38 | 11 X 38 |
| gear(s) 2nd |
23 X 43 | 23 X 43 | 23 X 43 | 23 X 43 |
| gear(s) 3rd |
25 X 34 | 25 X 34 | 25 X 32 | 27 X 31 |
| gear(s) 4th |
39 X 41 | 39 X 41 | 41 X 39 | 45 X 37 |
| gear(s) 5th |
44 X 35 | 44 X 35 | 44 X 35 | 47 X 31 |
| gear(s) reverse |
12 X 31 X 40 | 12 X 31 X 40 | 12 X 31 X 40 | 12 X 31 X 40 |
| speed at 1000 revs/min (in km/h) 1st |
8.08 | 8.08 | 8.29 | 8.29 |
| speed at 1000 revs/min (in km/h) 2nd |
14.93 | 14.93 | 15.32 | 15.32 |
| speed at 1000 revs/min (in km/h) 3rd |
20.52 | 20.52 | 22.37 | 24.94 |
| speed at 1000 revs/min (in km/h) 4th |
26.55 | 26.55 | 30.10 | 34.82 |
| speed at 1000 revs/min (in km/h) 5th |
35.08 | 35.08 | 36 | 43.41 |
| speed at 1000 revs/min (in km/h) reverse |
8.37 | 8.37 | 8.59 | 8.59 |
| final drive gears | 19 X 79 | 19 X 79 | 19 X 77 | 19 X 77 |
| speedometer drive | 22 X 18 | 22 X 18 | 22 X 18 | 22 X 18 |
| oil capacity | 1.9 | 1.9 | 1.9 | 1.9 |

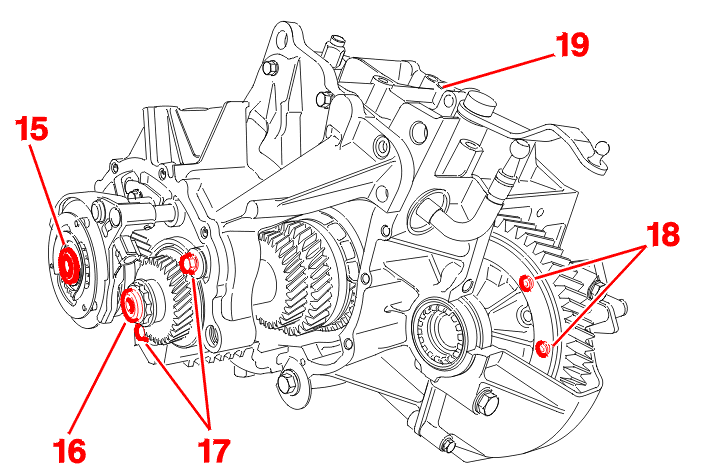

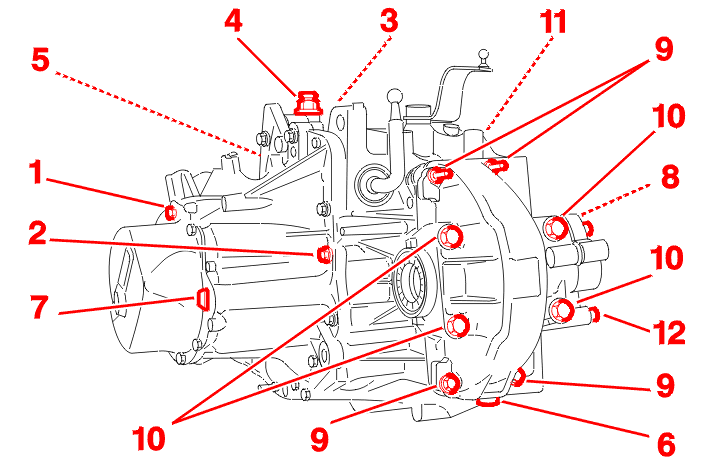

3 - TIGHTENING TORQUES
| reference | description | torque daN.m |
|---|---|---|
| - | special features | without |
| 1 | gearbox rear casing | 1.25 |
| 2 | securing the gearbox casing to the clutch housing | 1.25 |
| 3 | reverse gear rocking shaft securing nut | 4.5 |
| 4 | breather | 1.5 |
| 5 | reverse lamp switch | 2.5 |
| 6 | drain plug | 3.5 |
| 7 | level plug | 2.2 |
| 8 | speedometer drive support | 1.5 |
| 9 | differential housing fastener (ø M7) | 1.25 |
| 10 | differential housing fastener (ø M10) | 5.0 |
| 11 | stop guide securing bolt | 1.25 |
| 12 | differential extension fastener | 1.5 |
| 13 | stop plate fastener | 5.5 |
| 14 | gearbox mounting on crankcase | 5.5 |
| reference | description | torque daN.m |
|---|---|---|
| - | special features | without |
| 15 | input shaft nut | 7.25 |
| 16 | output shaft nut | 6.5 |
| 17 | bearing retaining bolt | 1.5 |
| 18 | differential crown wheel fastener | 6 |
| 19 | gearbox control bracket bolts | 1.5 |
