C5EG08F1 - 406D9

REMOVAL - REFITTING HEADLAMPS

1 - REMOVAL

Remove :

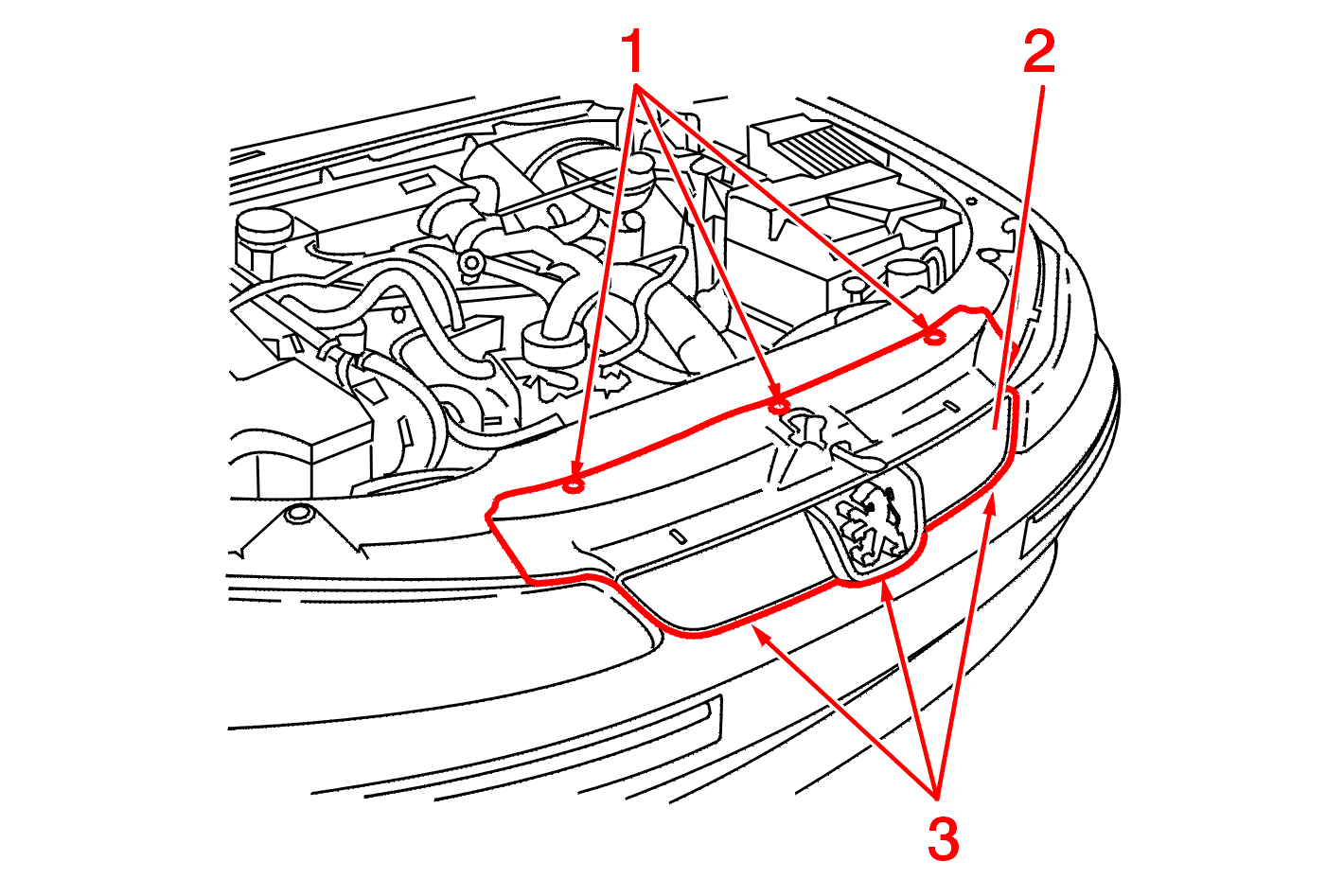

• the fasteners (1)
• the grille (2) secured by clips (3)

Clear the headlamp surroundings .

AIR CONDITIONING

Remove the fan unit top fastenings .

Tilt the assembly to the rear .

Turbo-charged engine, REMOVE THE BUMPER .

COUPE

ALL MODELS

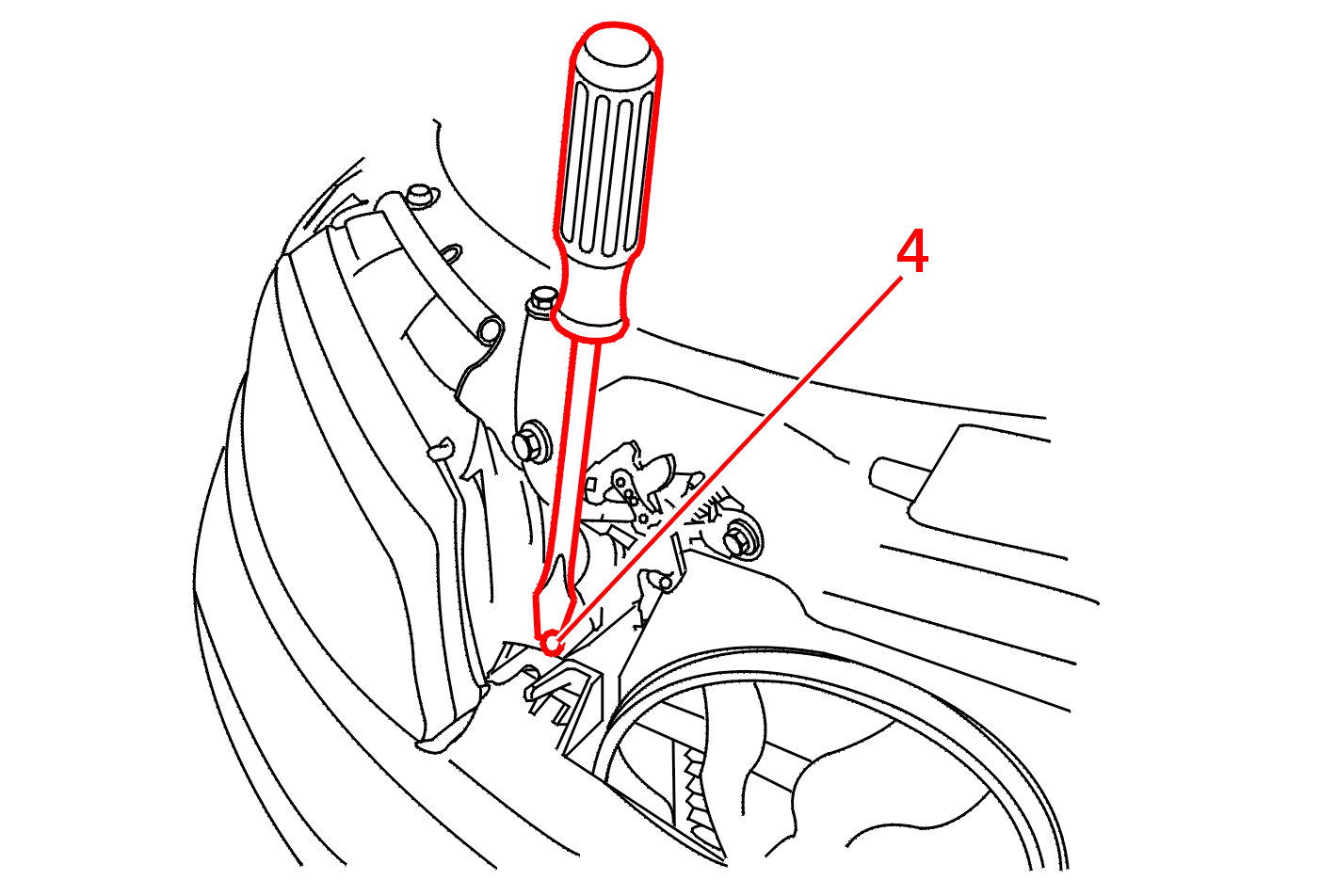

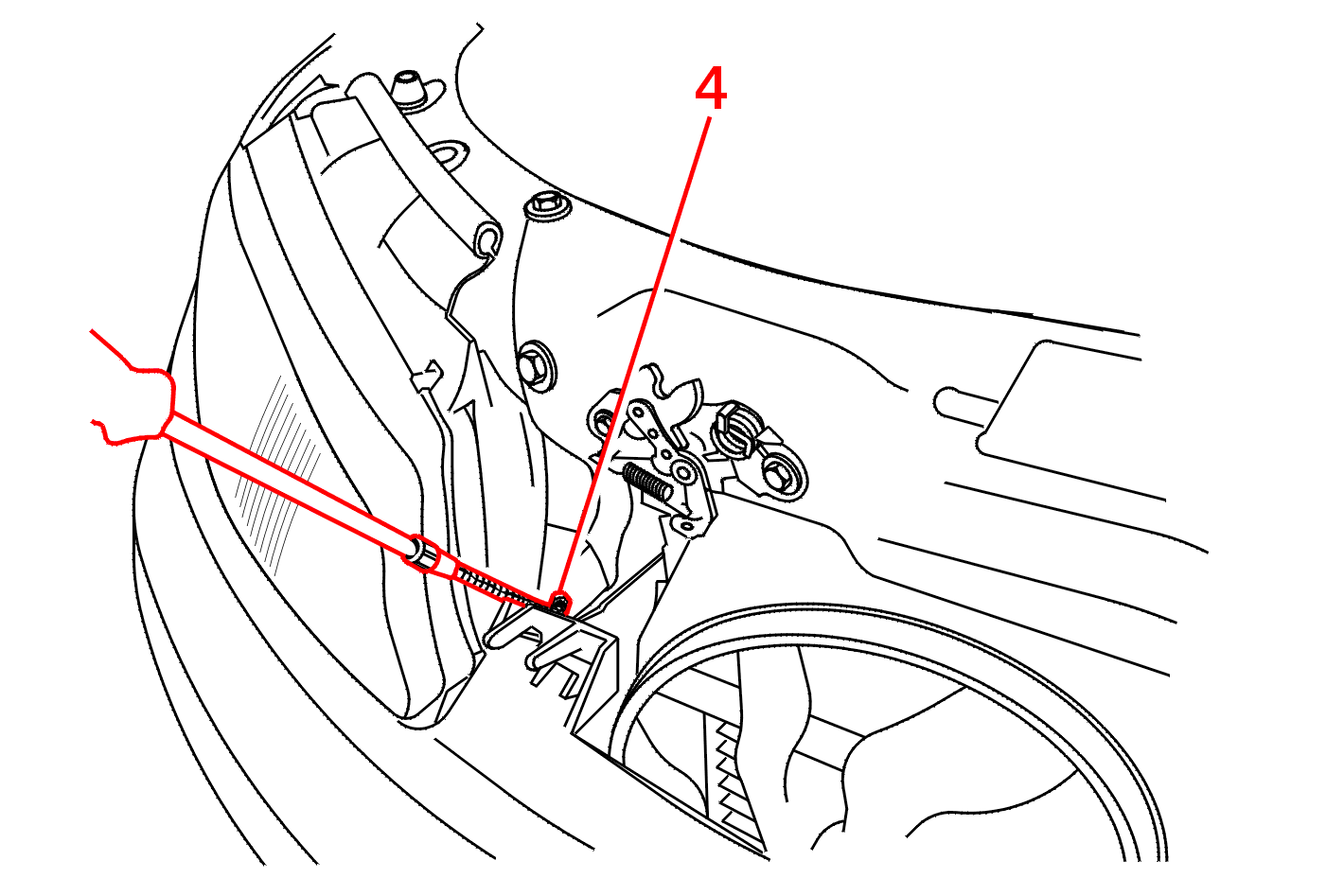

Remove the fasteners (4) .

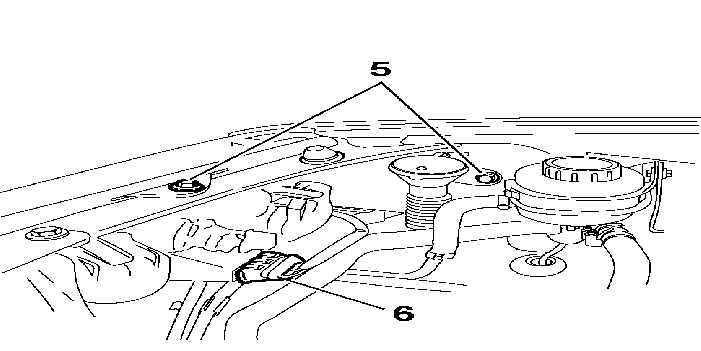

Remove the fasteners (5) .

Unclip the electrical connection (6) .

Remove the headlamp by pulling it towards you and pivoting it a little .

2 - REFITTING

Proceed in the reverse order to removal .

Check :

• the electrical operation
• the headlamp beam adjuster
