C5GG0ZF1 - 406D9

REMOVAL - REFITTING REAR SEAT BACKREST

1 - REMOVAL

Open the boot lid .

REMOVE THE REAR SEAT CUSHION .

Remove :

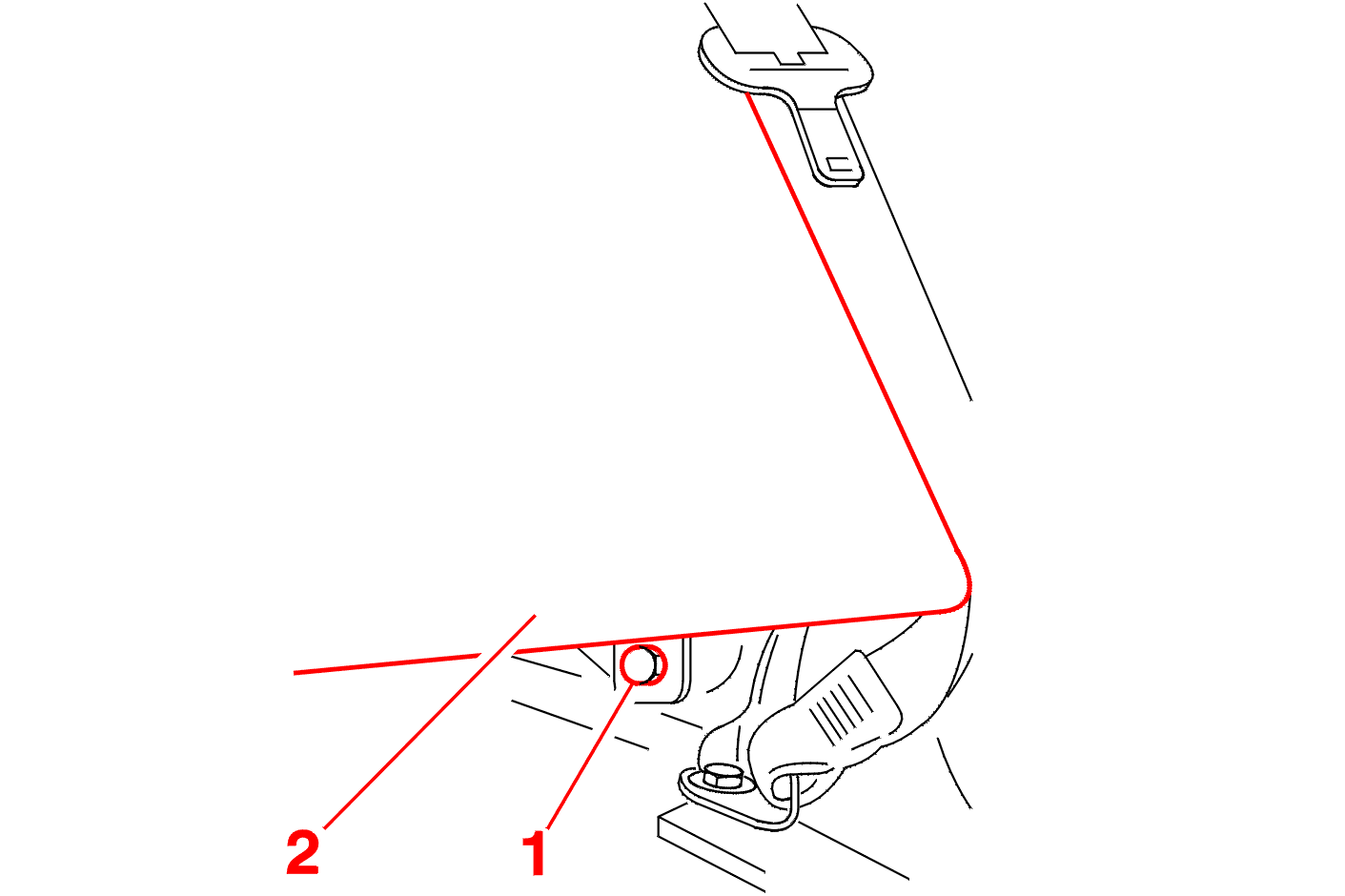

• the fasteners (1)
• the casings (2) by pulling upward

Unlock the rear seat-back .

Tilt the rear backrest .

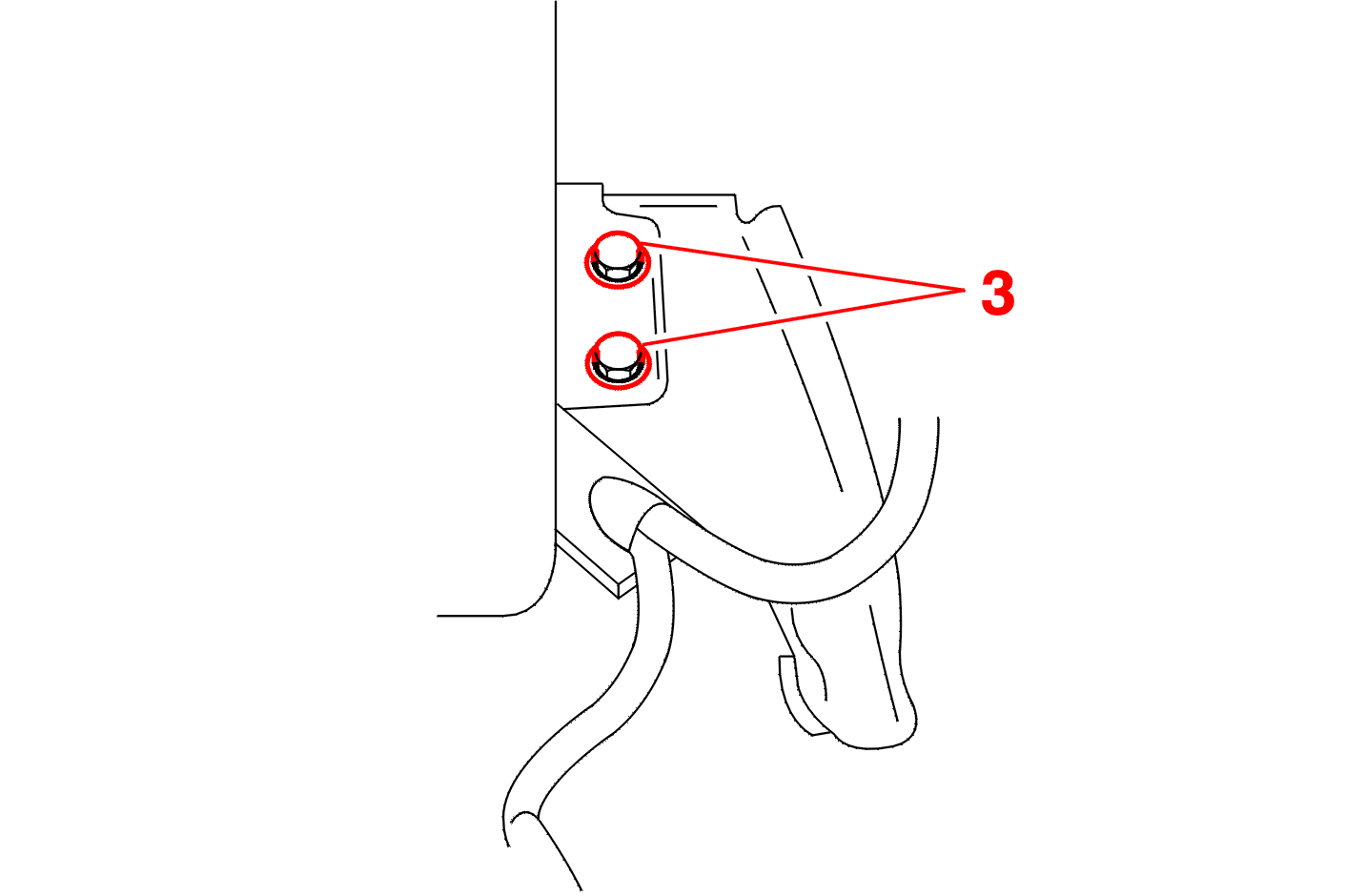

Remove the side fixings (3) .

Remove :

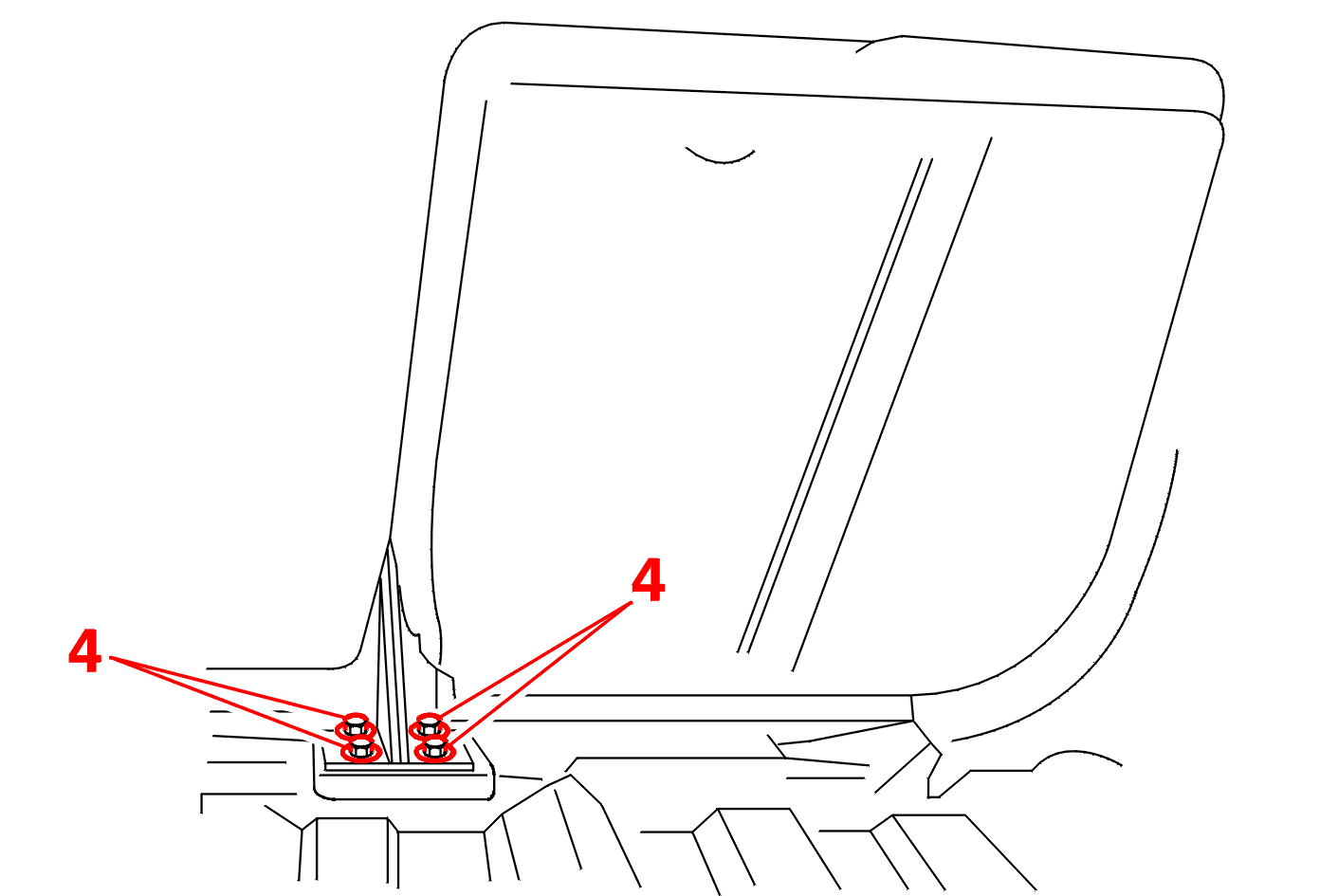

• remove the fasteners (4)
• the rear seat back rest

2 - REFITTING

NOTE : pass the centre seat belt over the left-hand seatback .

Proceed in the reverse order to removal .
